Installation
*INSTALLATION*
64

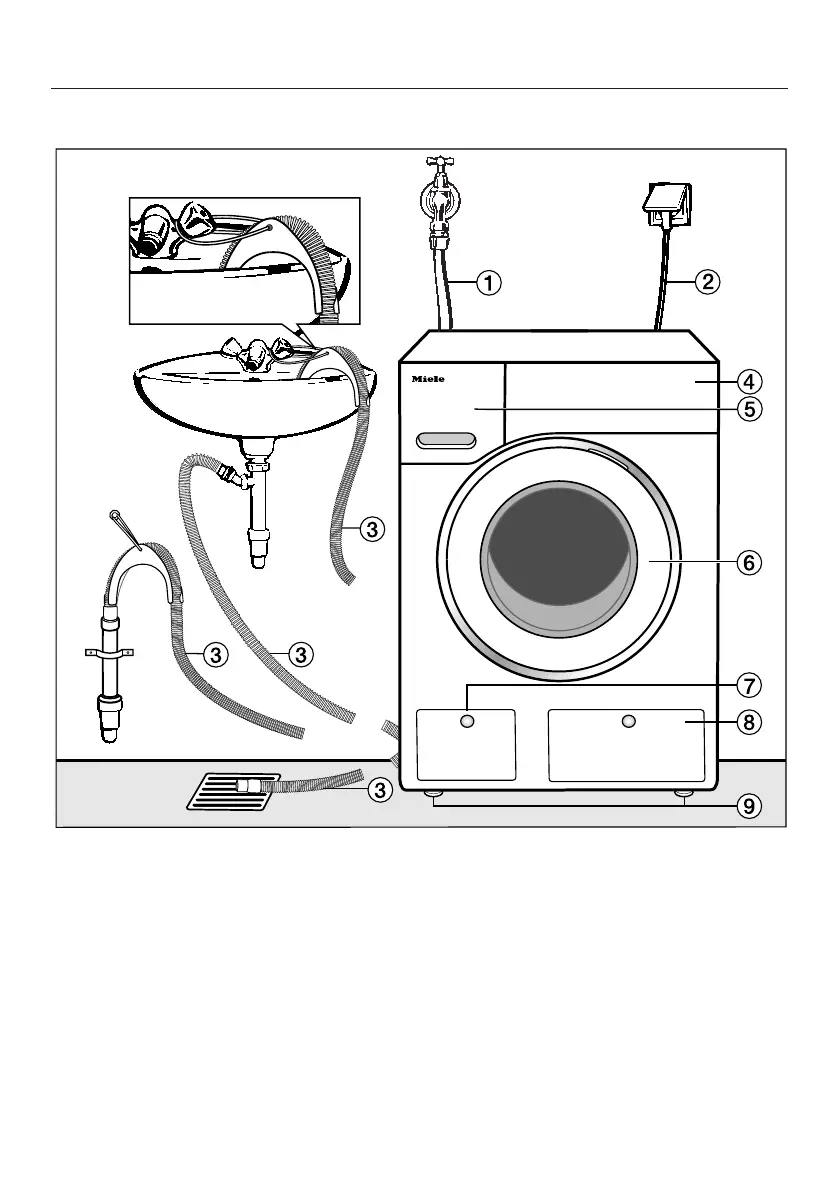

Front view
a
Water inlet hose (pressure tested to
7000kPa)
b
Mains connection cable
c
Flexible drain hose (with detachable
swivel elbow)
d
Control panel
e
Detergent dispenser drawer
f
Door
g
Access to drain filters, drain pumps
and emergency release
h
Access panel for TwinDos cartridges
i
Four height-adjustable feet
