MikroTik DynaDish 5 Quick Start Guide

1.
2.
3.
One 10/100/1000 Gigabit Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can use either straight or cross-
over cables for connecting to other network devices.
One Integrated Wireless 5 GHz 802.11a/n/ac, 2x2 MIMO with built-in parabolic dish antenna, max gain 24 dBi.
Mounting
The device is designed to be used outdoors and mounted on a pole.
When mounting, please ensure that the cable feed is pointing downwards.
The IP rating scale of this device is IP54. We recommend using Cat6 shielded cables.
The mounting and configuration of this device should be done by a qualified person.

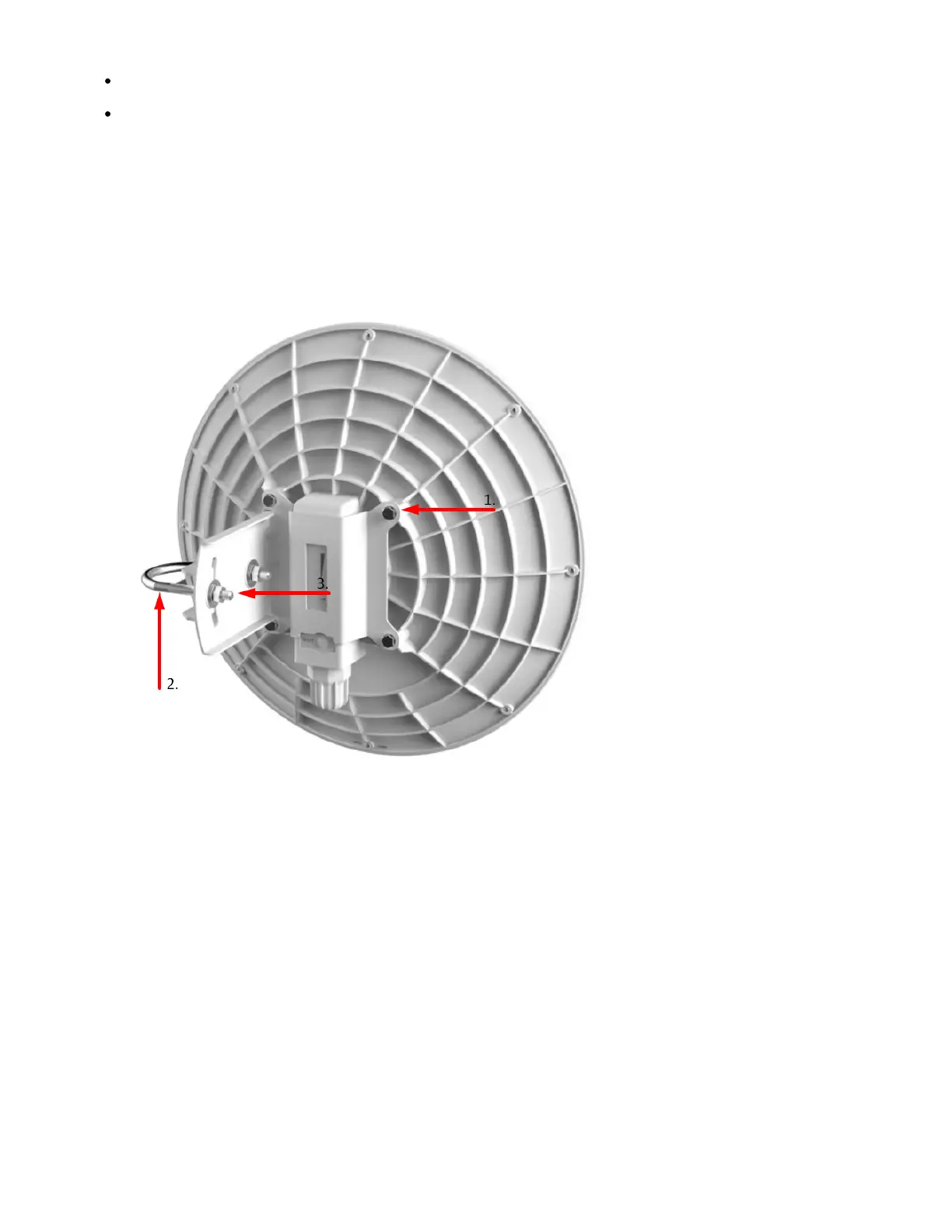

Attach provided mounting bracket with four screws to the device;
Attach to the pole or mast;
Secure position with two screws;

MikroTik DynaDish 5 Specifications

General

Chipset	QCA9882-BR4A-R
Internal memory	128 MB
Internal	No
Product color	White
AC adapter included	Yes
AC input voltage	11 - 60 V
Power consumption (max)	16 W
Frequency band	5.170-5.250, 5.725-5.835 GHz
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Antenna features	Integrated antenna
Antenna gain level (max)	25 dBi
Ethernet LAN (RJ-45) ports	1
Horizontal beam width	8 °

Weight and Dimensions

Depth	175 mm
Height	404 mm
