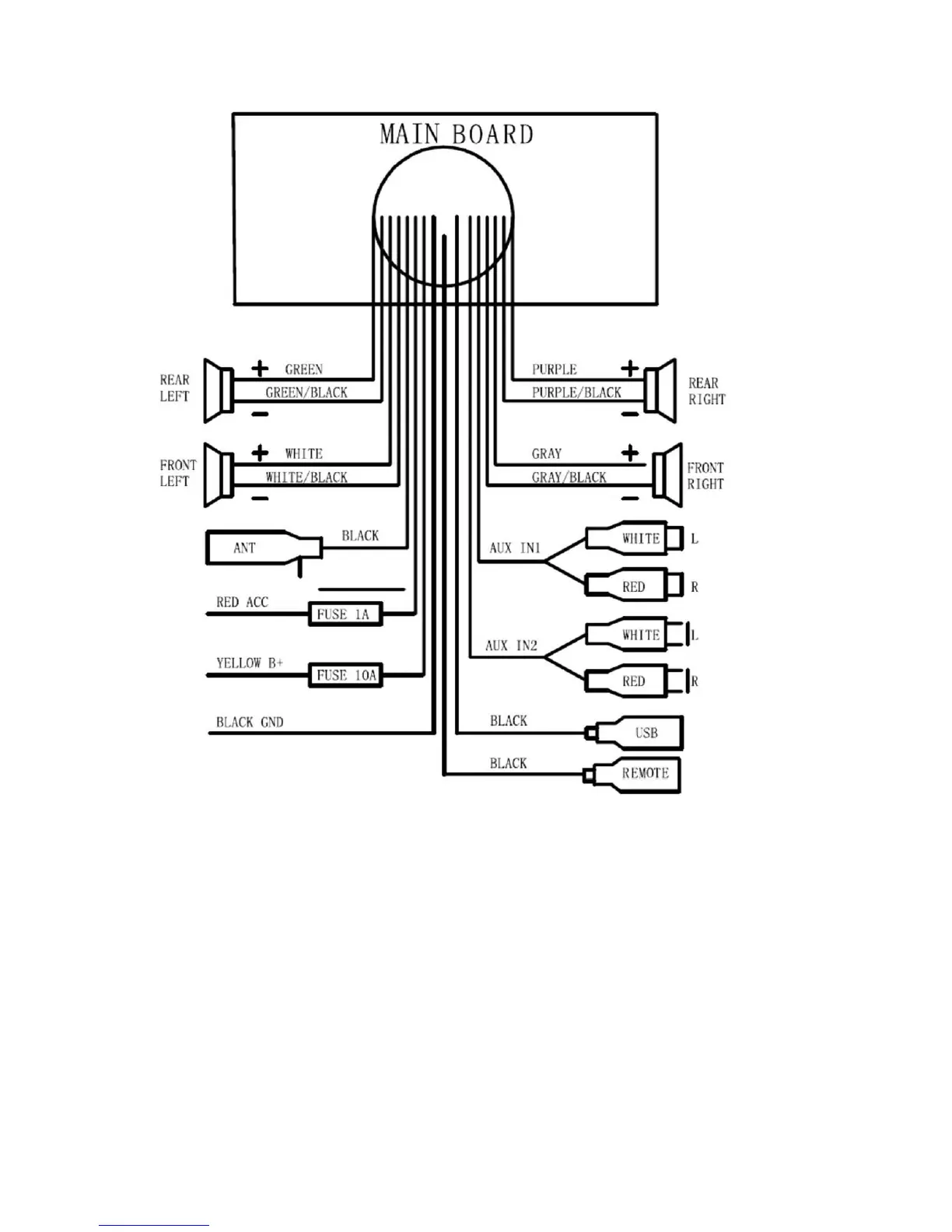

1.0. Wiring Follow the wiring diagram below.
• The red ACC wire is designed as the trigger to turn the radio on. It recommended that this wire is connected to an
on/off switch for purposes of lowering the current draw on the battery while the radio is not in use.
• Both red ACC and yellow battery wires must be connected to 12V+ for the radio to turn on.
• Ground (black) must be connected to a good 12V- source. Best source is directly to the battery.
• Speaker wires must be installed to the individual speaker’s terminals as labeled, positive and negative, respectively.
Do NOT combine any speaker wires as this will cause permanent damage to the radio’s output IC. Tape off any unused
speaker wires individually to prevent accidental shorting which can also harm the output IC.
• Antenna must be installed.
• USB extension is supplied with radio.
• AUX Input 1 and AUX Input 2 – two separate inputs for two separate external devices. Connectors shown in
diagram are female RCA connectors.
• Remote lead – female 3.5mm jack for wired remote or wireless remote adapter.
