Millenium Technologies MILLENNIUM 2.4.6 - Auto Mode Installation: Dedicated DAC

10
FRONT
L
R
IN OUT
REAR
L
R
IN OUT
CENTER
OUT
IN
LFE
OUT
IN
MULTI-CHANNEL
PREAMP
AUX Input
C
S
In Out In Out In Out
FRONT REAR
OUT
IN
DIGITAL I/O
L
R
L
R
DIGITAL IN
(Coaxial)
D to A
Converter
Out
L
R
FRONT AMP
L
R
L
R
IN
SURROUND AMP
L
R
L
R
IN
CENTER/SUB AMP
C
S
C
S
IN
DIGITAL OUT
(Coaxial)
CD Player
DIGITAL OUT
(Optical)
LD/DVD Player
POWER
SERIAL #
12 VOLTS DC
SYSTEMDIGITAL I/0LFECENTERREARFRONT
OUT
IN
OUT
IN
OUTL
INR
L
R
IN OUT IN OUT
CONFIGURATION
1 8
1 2 3 4 5 6 7 8
Dip On
DTS Decoding Under License from
DTS Technology LLC
U.S. Patent Number 5,451,942
Designed & Engineered in the USA
INCLINE VILLAGE
NV 89452-8359
US & FOREIGN PATENTS PENDING
Design verified to comply with FCC
Part 15 for a Class B Digital Device

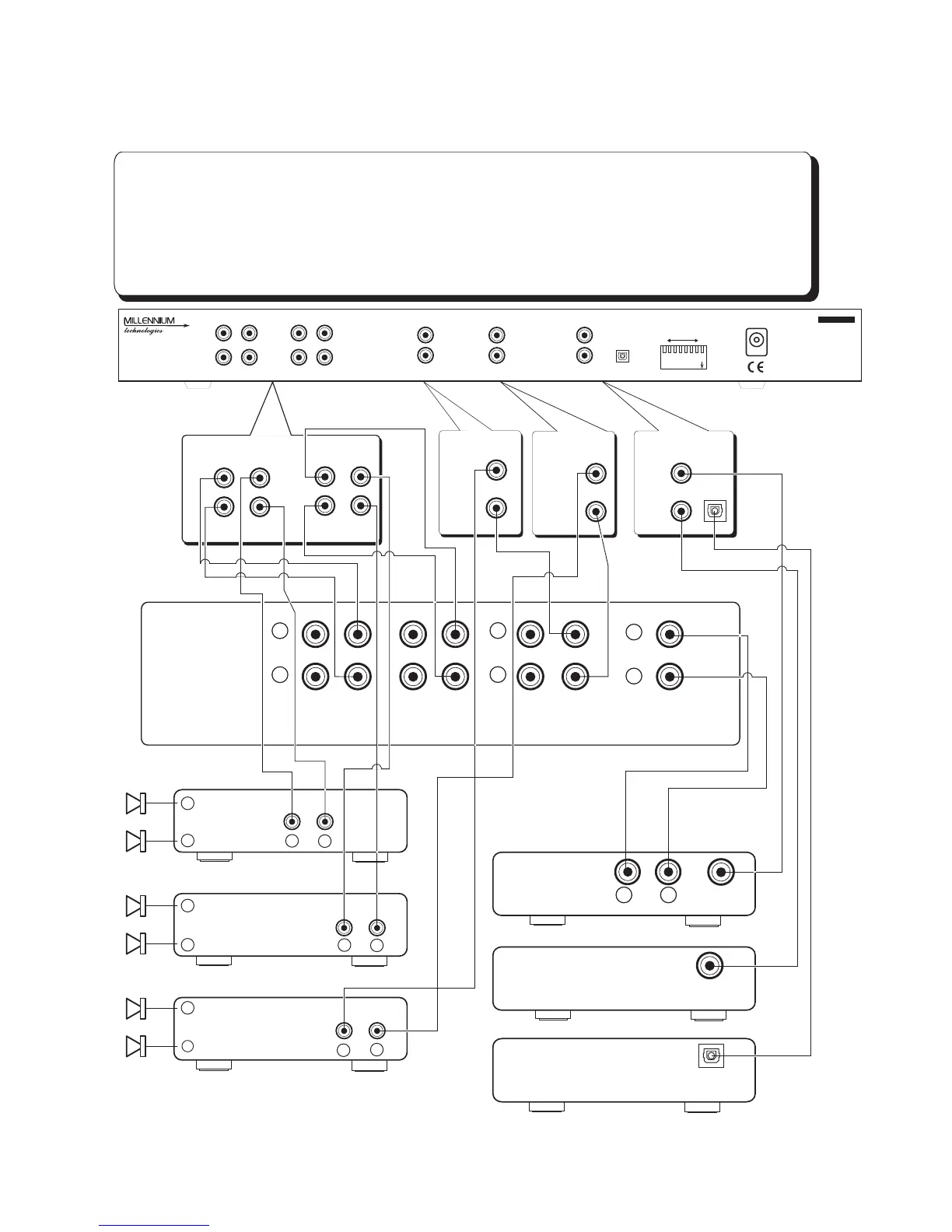

AUTO MODE
Installation with Dedicated D-to-A Converter
In this configuration the Millennium 2.4.6 is installed within an existing sound system
that uses a multi-channel A/V Preamp that routes all digital devices through a
separate D-to-A Converter (DAC).It is essentially the same hook-up as that shown for
installation with a Preamp on the previous page, except the Millennium 2.4.6 Digital
out is routed back to the DAC's digital input. Analog audio outputs on both source devices
can also be patched into the Preamp directly. However, because the digital input of the
DAC is fed by 'The 2.4.6', it must be on at all times, regardless of whether the source
material is DTS encoded or not.
