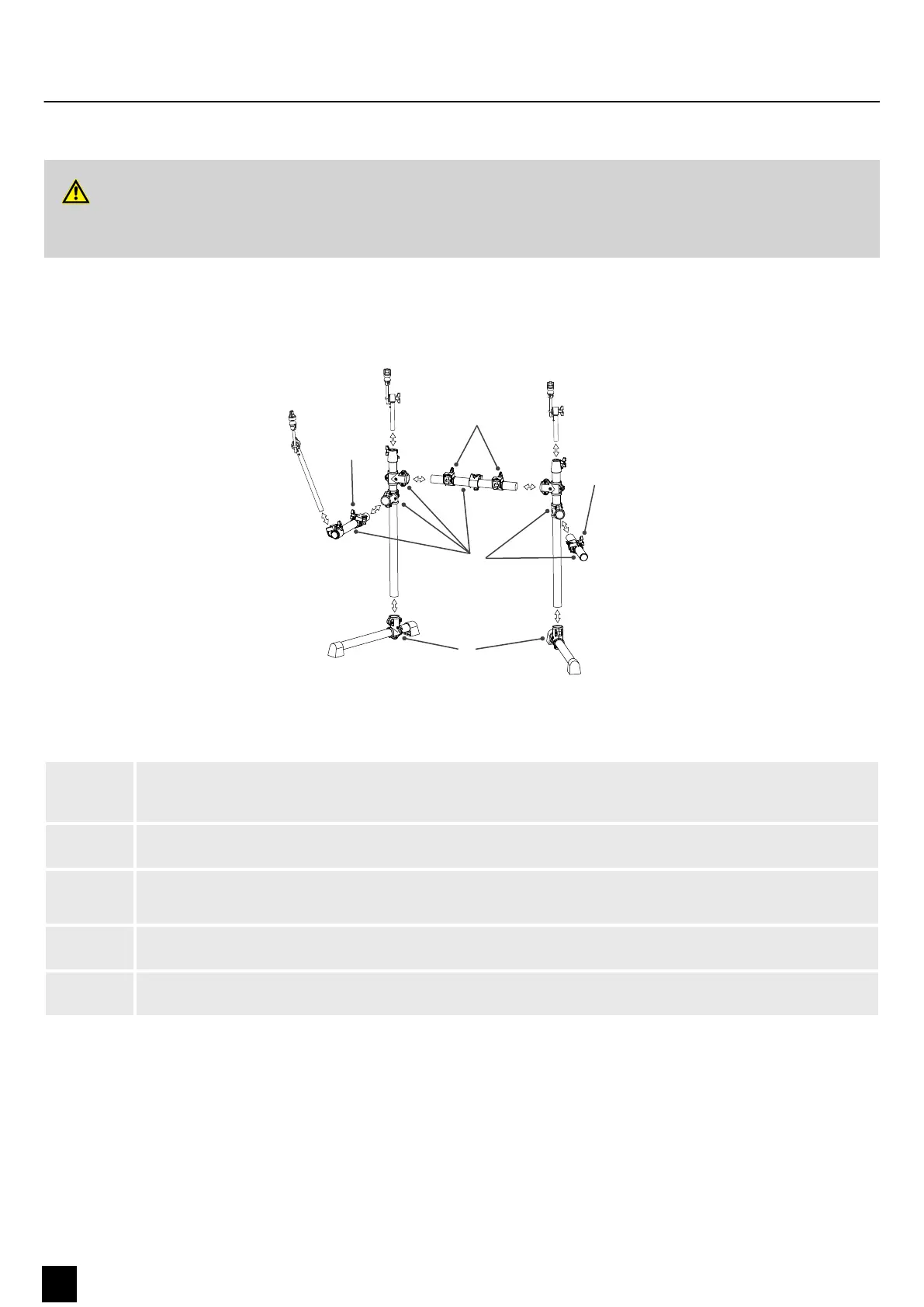

Millenium MPS-150X Assembly Instructions

Assembling the rack
CAUTION!
Danger of cuts on hands and ngers
When connecting the parts, take care for sharp edges on the metal tubes, screws etc.
#
$
ö
%
&
$
$
%
%
&
&
1 Align the mounting brackets for the connecting pipe and the two side arms of the rack in terms of height and
desired playing position. Insert the connecting pipe and the two sides arms into the brackets and then tighten all
mounting screws. The left side arm is longer than the right one.
2 Position the two foot pieces on the oor and put the two side pipes of the rack into the provided mounting
brackets. Make sure that the ends of the side pipes are lying on the oor. Then tighten the mounting screws.
3 Position the mounting brackets for the individual pads. Then tighten the mounting screws.
Turn the angle pieces in the right position for mounting the pads. Then tighten the mounting screws.
4 Insert the crash pad, ride pad and hi-hat pad supports into the respective mounting clamps on the rack. Attach
the brackets using the mounting screws at the desired height.
5 Loosen the retaining screws on the bracket joints and turn the brackets into the desired playing positions. Then
retighten the locating screws rmly.
Assembly
8
MPS-150X
E-Drum Set
