Miller RFCS-14HD - Adjusting Potentiometer Timing; Changing Cord Location

OM-844 Page 5

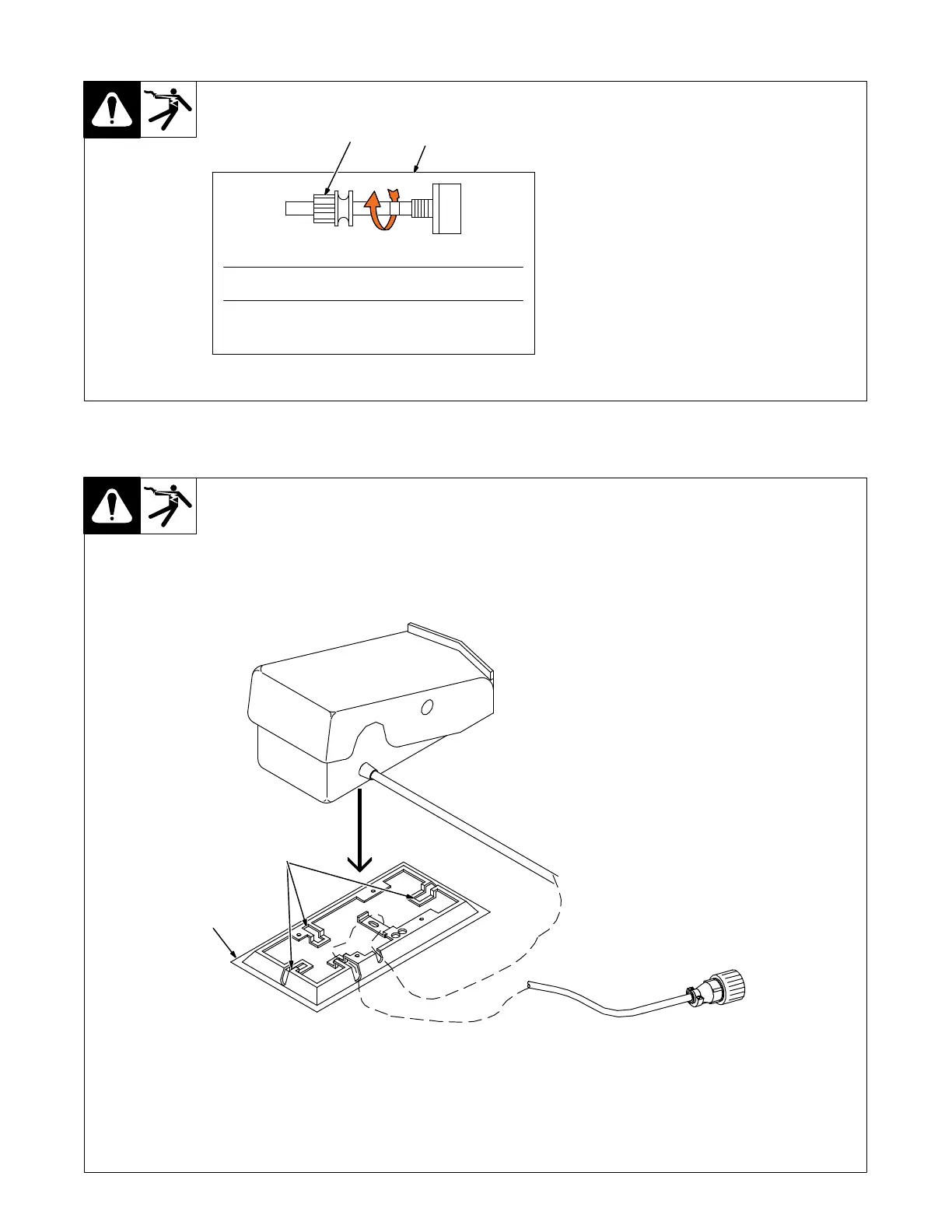

1-8. Adjusting Potentiometer Timing
NOTICE − Disconnect foot control
from welding power source/gener-
ator before adjusting potentiome-
ter.
Turn unit upside down, and remove
bottom plate.
1. Label
2. Gear
Turn gear on potentiometer shaft
counterclockwise as far as
possible.
Pull drive belt tight and mesh belt
teeth with gear teeth.
Connect free end of small spring
into end of drive belt.
Reinstall bottom plate
BEFORERE-INSTALLINGBELT,TURNGEARALL
THEWAYTOTHESTOP.
ANTESDEVOLVERAINSTALARLACORREADÉ
VUELTAALENGRANAJETODOLONECESARIO
HASTAQUESEDETENGA.
AVANTDEREPOSERLACOURROIE,FAIRE
PIVOTERL'AXEJUSQU'ÀLABUTÉE.
218006-A
1
2
1-9. Changing Cord Location On RFCS-5HD, RFCS−6MHD, And RFCS-14HD Models
NOTICE − Disconnect foot control
from welding power source/gener-
ator before adjusting potentiome-
ter.
1. Bottom Plate
Turn unit upside down, and remove
bottom plate.
Remove screw that holds cord in its
factory installed location.
2. Cord Slots
Position cord in desired slot.
Slide strain relief down cord and
into slot to protect cord. Secure
cord with screw in the same man-
ner in which it came from the
factory.
Reinstall bottom plate
1
2
