Golf Organizer
PARTS
Golf Organizer
ASSEMBLY
Left Panel
1
Top Shelf
6
Front Brace
11
Lower Back Panel
2
Middle Shelf
7
Long Screws (X17)
12
Upper Back Panel
3
Bottom Shelf
8
Nuts (X20)
13
Middle Panel
4
Right Panel
5
Top Shelf Face
9
Bottom Panel
10
Foot Pads (X4)
14
Short Screws (X3)
15
1

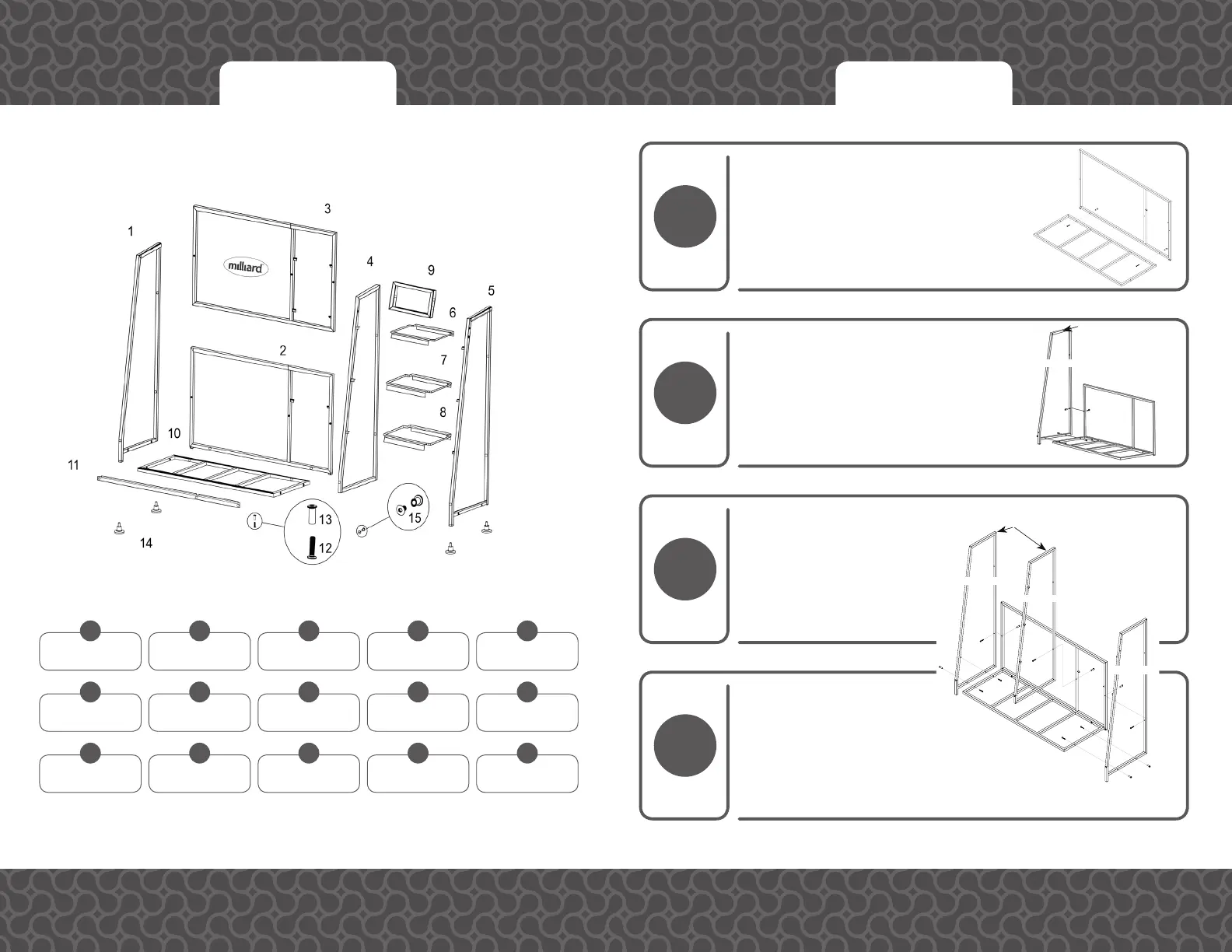

Bring the carton and its contents near the area where
the organizer will be used and check that all the
pieces listed on the parts list are present. Place the
bottom panel (10) so that the mesh side is on top, and
then position the lower back panel (2) so it is facing
forward toward the bottom panel as shown. Secure
them together with long screws (12) and nuts (13).
2
Position the left panel (1) with its foam side facing in
toward the rest of the assembly and secure it to the
base and the lower back panel with three long screws
(12) and nuts (13).
3
Position the middle panel (4)
toward the center-right of the
assembly with its foam tape
facing the left panel. Secure it to
the base and the lower back panel
with two long screws (12) and
nuts (13) as shown.
4
Position the right panel (5) on
the right side of the assembly as
shown, and secure it to the base
and the lower back panel with
three long screws and nuts.
MESH ON TOP
LOWER BACK PANEL
BOTTOM PANEL
Milliard Brands © 2017 All Rights Reserved.
LEFT PANEL
LEFT PANEL
MIDDLE PANEL
RIGHT PANEL
FOAM TAPE LOCATION
FOAM TAPE LOCATION
