Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.
Parts List— Drive Chart
BMP000007/2000455V
(Sheet 1 of 1)
. ---------------------------------------------------------------------ASSEMBLIES------------------------------------------------------------------
A D33 02850 93000Z DRIVE CHART=3022V7 VSP 50CYC 30015V7J & 30022V6J
50 CYCLE
B D33 02860 93000Z DRIVE CHART=3022V7 VSP 60CYC 30015V7J & 30022V6J
60 CYCLE
-------------------------------------------------------------------COMPONENTS------------------------------------------------------------------ all 1 561825B2SD VPUL 2B18.25 (SD) MTO all 2 56VB071XM2 VBELT BX71 MATCHSET2 EA=1BELT 2 BELT SET all 3 56Q1KSD 1+1/2" BUSH VPUL QD TYPE SD all 4 56030B2H VPUL 2B3.0/A2.6 2BK32H R EQUAL all 5 56Q1CH 1+1/8" BUSH VPUL TYP H,D,OR QT

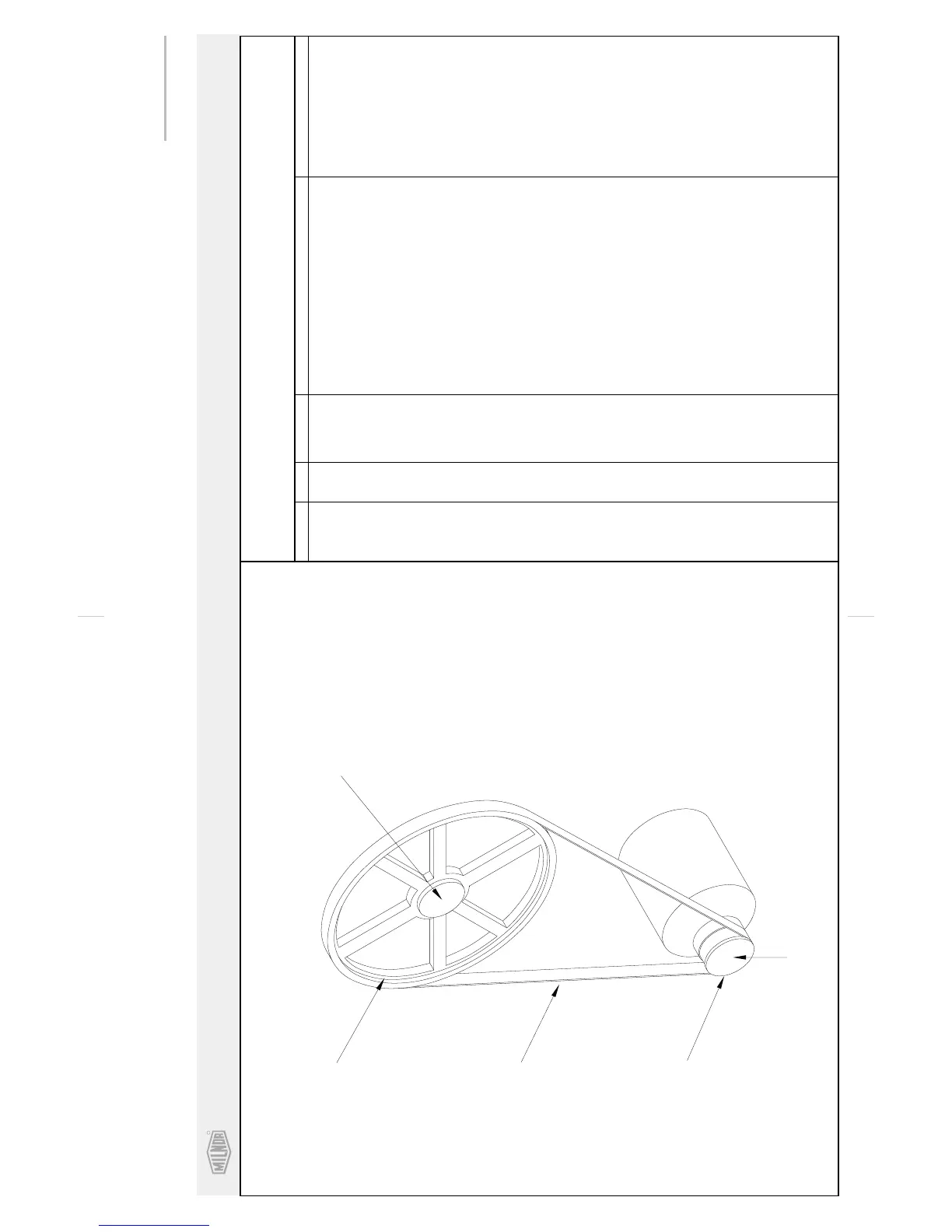

Drive Chart 30015V7J & 30022V6J
2
5
1
3
4
