PELLERIN MILNOR CORPORATION

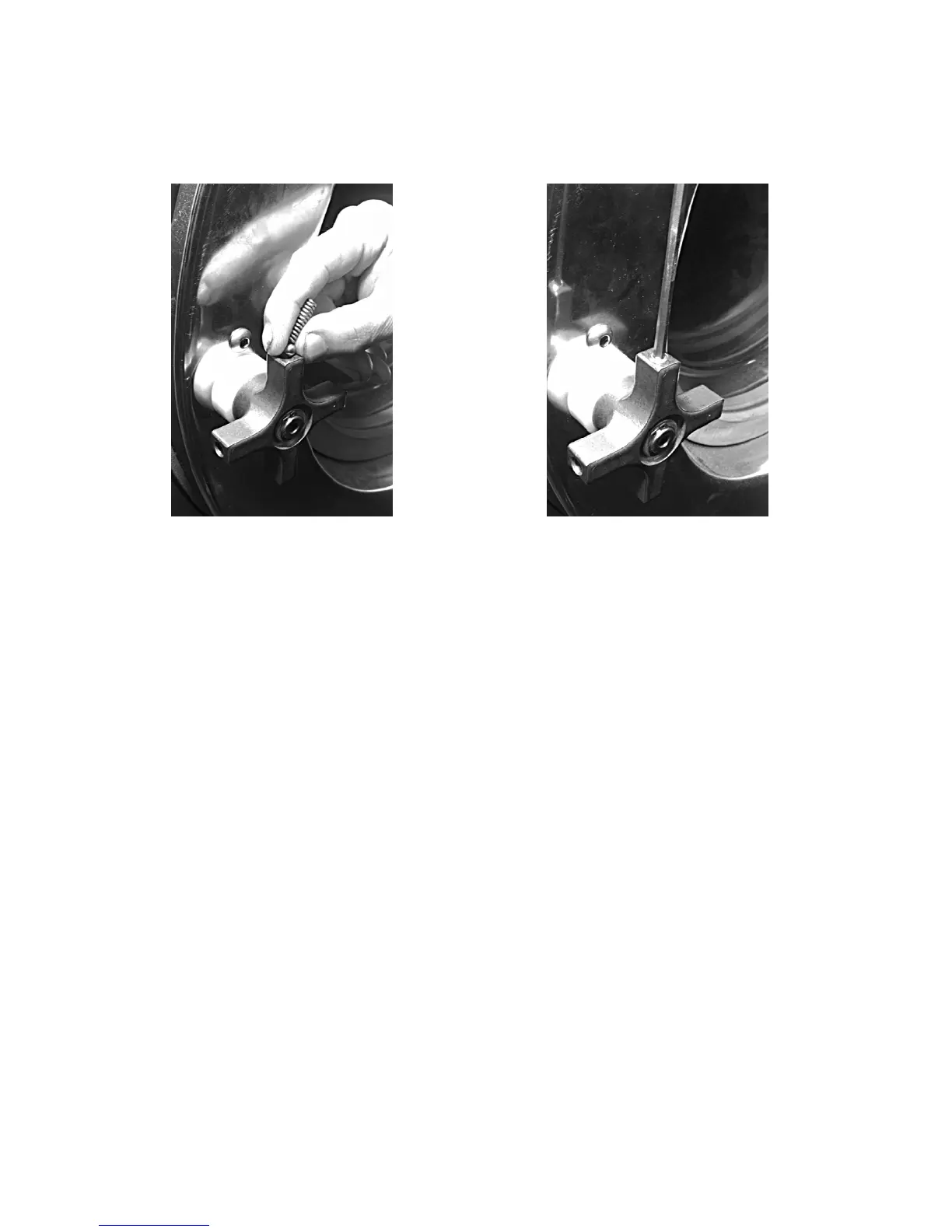

Figure 10: Inserting Ball and Spring in Handle
Spoke
Figure 11: Adjusting Set Screw
8. When all four set screws are in place, check to be sure the handle will ratchet if turned
counterclockwise, or if latched with more force than necessary. Make 1/4 turn adjustments to
all four set screws if necessary to achieve the proper tension.
9. Install the black plastic cap over the center of the handle.
— End of BIRH3M02 —
