Milnor MCR12E5 - Page 50

MCR12E5, MCR16E5, MCR18E4,MWR12E5, MWR16E5, MWR18E4, MWR18X4, MWR18J4
R
Pellerin Milnor CorporationPellerin Milnor Corporation
P. O. Box 400, Kenner, LA 70063-0400
Litho in U.S.A.
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers (1, 2, 3, etc.) assigned to components relate the parts list to the illustration.

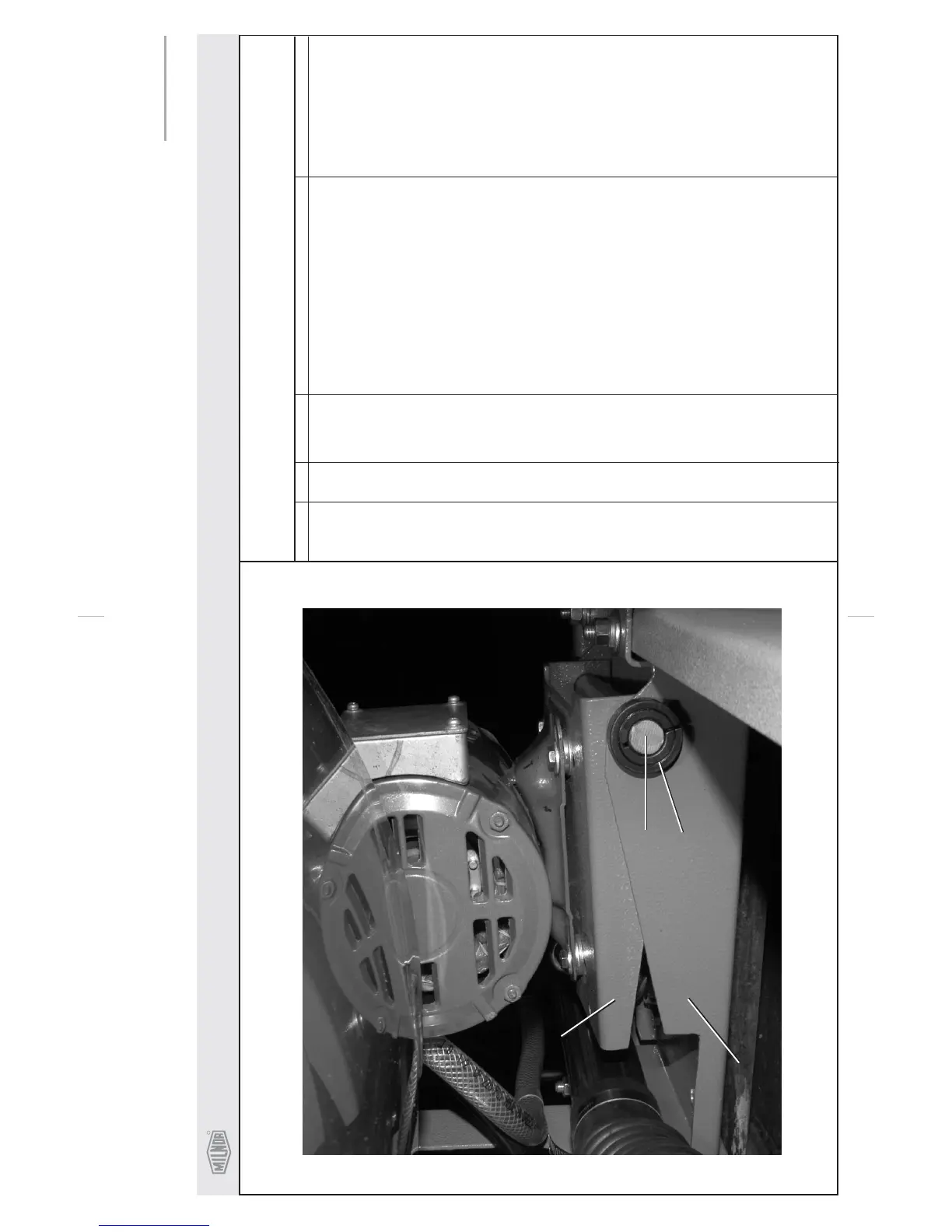

Parts List—Motor Mount
BMP050004/2009412B
(Sheet 2 of 2)
. ---------------------------------------------------------------------ASSEMBLIES------------------------------------------------------------------
A ADB575X347 2314 MOTOR MT ASSY MCR12E5, MWR12E5 B ADB2318001 MOTOR MT ASSY 2318 MCR16E5, MWR16E5 C ADB700X468 MOTOR MT ASSY 18KG MCR18E4, MWR18E4
-------------------------------------------------------------------COMPONENTS------------------------------------------------------------------ A 1 03 40026 MOTOR MOUNT SUB PLATE B 1 03 40126 MOTOR MOUNT SUB PLATE 2318 C 1 03 40226 MOTOR MOUNT RAIL 18KG AB 2 98CMCR0951 MCR 09 MOTOR MOUNT C 2 03 40226B MOTOR MOUNT 18KG AB 5 98CMCR0922 ROD=PIVOT MTR MT MCR09 C 5 03 40226C ROD PIVOT MTR MT 18KG
MWR18X4, MWR18J4
all 3 98CMCR0952 SPRING/MOTO MOUNT MCR All 4 98CMCR0923 SHFTCOLLAR 3/4"CLPTYP
Motor Mount
5 4
2
1
