Parts List—Water Inlets MCR
BMP050003/2009412B
(Sheet 2 of 2)
.
.
-------------------------------------------------------------------COMPONENTS------------------------------------------------------------------
all 1 98CMCR0937 3/4"DUOINLET 1/2"HOSEOUT
all 2 98CMCR0938 3/4 INLET 13M 3 OUT 220/240V
all 3 98CMCR0939 PERISTALTIC/WATER INLET COIN
A 4 03 40025A FILL HOSE MCR12E5, MCR16E5
B 4 03 40225A FILL HOSE MCR18E4

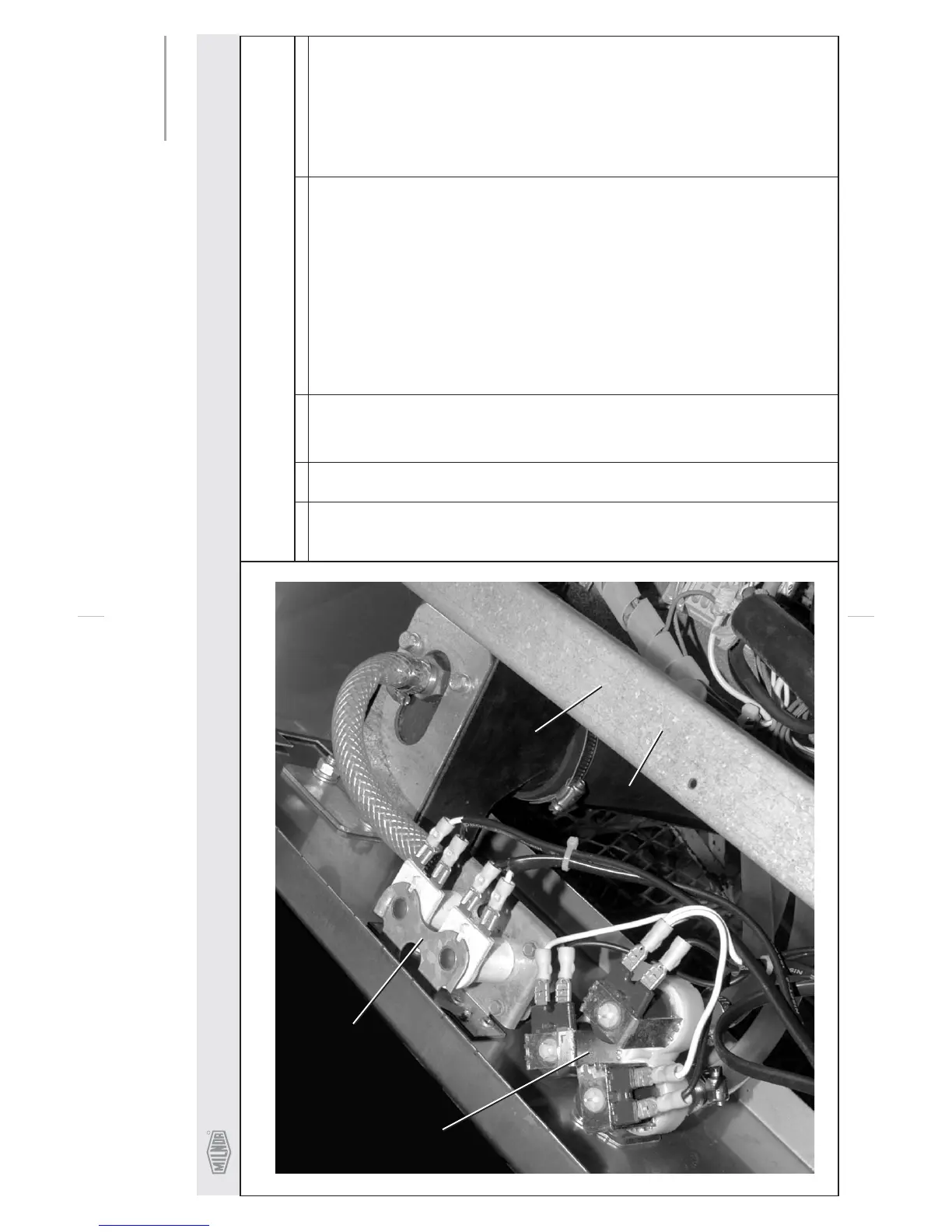

Water Inlet Installation
MCR12E5, MCR18E4MCR16E5,
HOT & COLD
FILL WATER
HOT WATER
TO FLUSH
SOAP CHUTE
2
1
3
4
To Next Page
