Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers(1, 2, 3, etc.) assignedto components relate the partslist tothe illustration.
Parts List—Vibration Safety Switch
BMP910038/2012383B
(Sheet 1 of 1)
. ---------------------------------------------------------------------ASSEMBLIES------------------------------------------------------------------
A SAE03 151 * ASSY-VIBRATION SWT=LG CONTR (ALL MODELS EXCEPT
BWP,CPE) 3015/22 V/T/G/F 3022F,362F, 4232F 3621,3626,4226,4230V 3022X,3626X,4226X,4232X 4244, 6044,7244WP/SP CONTAINS 001,002, 005A-009
B SAE03 151A *ASSY-VIBRATION SWT=BALCOM (MODELS 3621BWP,CPE
ONLY) CONTAINS 001,002, 005B-009
-------------------------------------------------------------------COMPONENTS------------------------------------------------------------------ all 1 02 02038 PLATE INSULATING SMALL9NOV51 all 2 15P008 TRDCUT PANHD 6-32X1 NIKSTL +WA A 5 02 15119 BRACKET=VIBSW CAD B 5 02 10264 BRACKET=SAFESW CAD all 6 09R020 SWITCH NC VIBR#WZ-2RW84429-P52 all 7 03 01059 VIBSWITCH CLAMP CADSTL all 8 03 01058 VIBSWITCH WEIGHT-CADSTL all 9 15P101 TRDCUT-F PANHD 8-32X3/8 NIKSTL

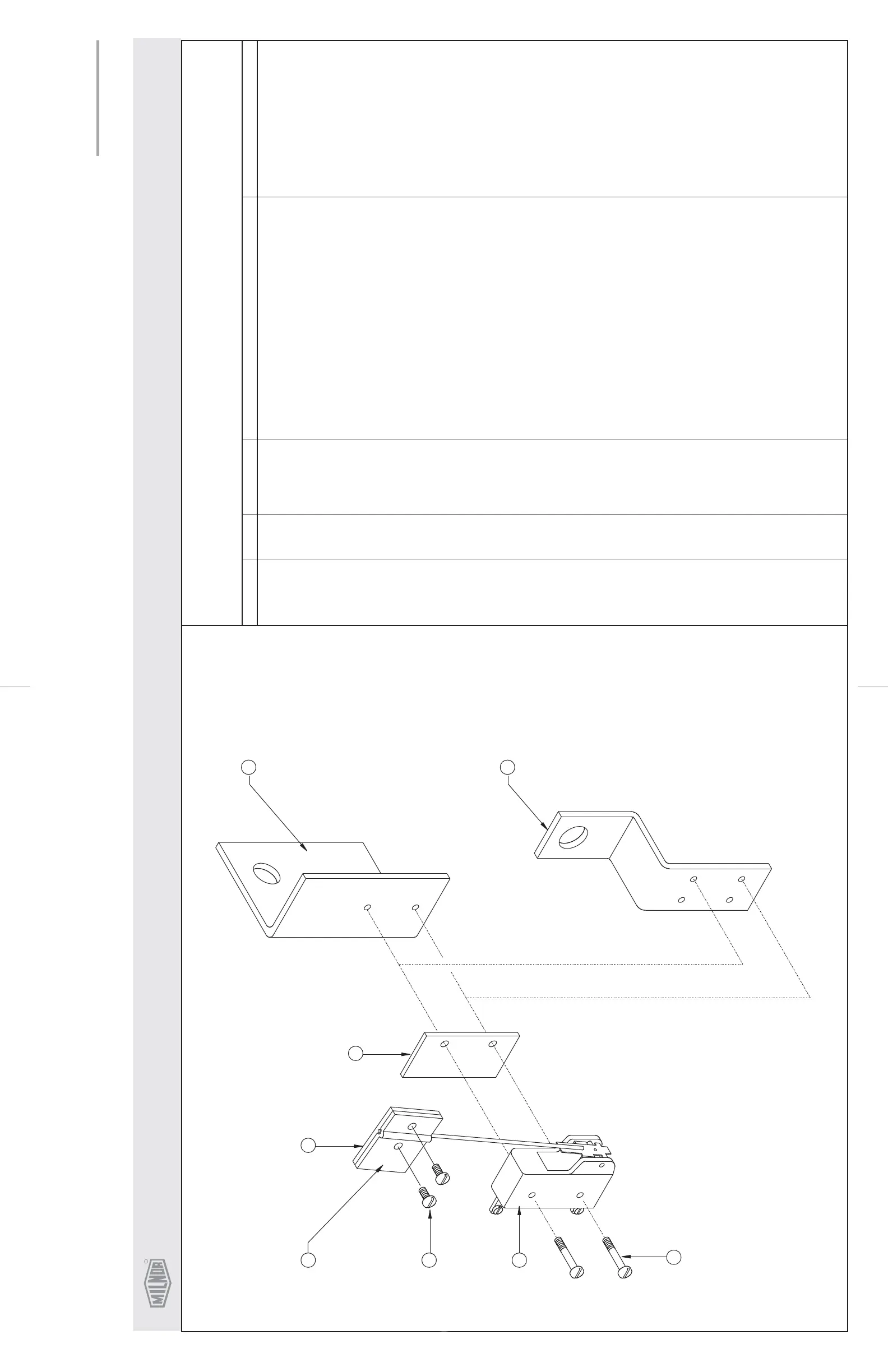

Vibration Safety Switch
2
6
1
9
7 8
5B
5A
110
