Milnor MWF63C Series User Manual

R
Pellerin Milnor CorporationPellerin Milnor Corporation
P. O. Box 400, Kenner, LA 70063-0400
Litho in U.S.A.
Item
Part Number
Description
Comments
Used In
Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In" column to identify which components belong to an assembly. The item numbers(1, 2, 3, etc.) assigned tocomponents relate the parts listtothe illustration.

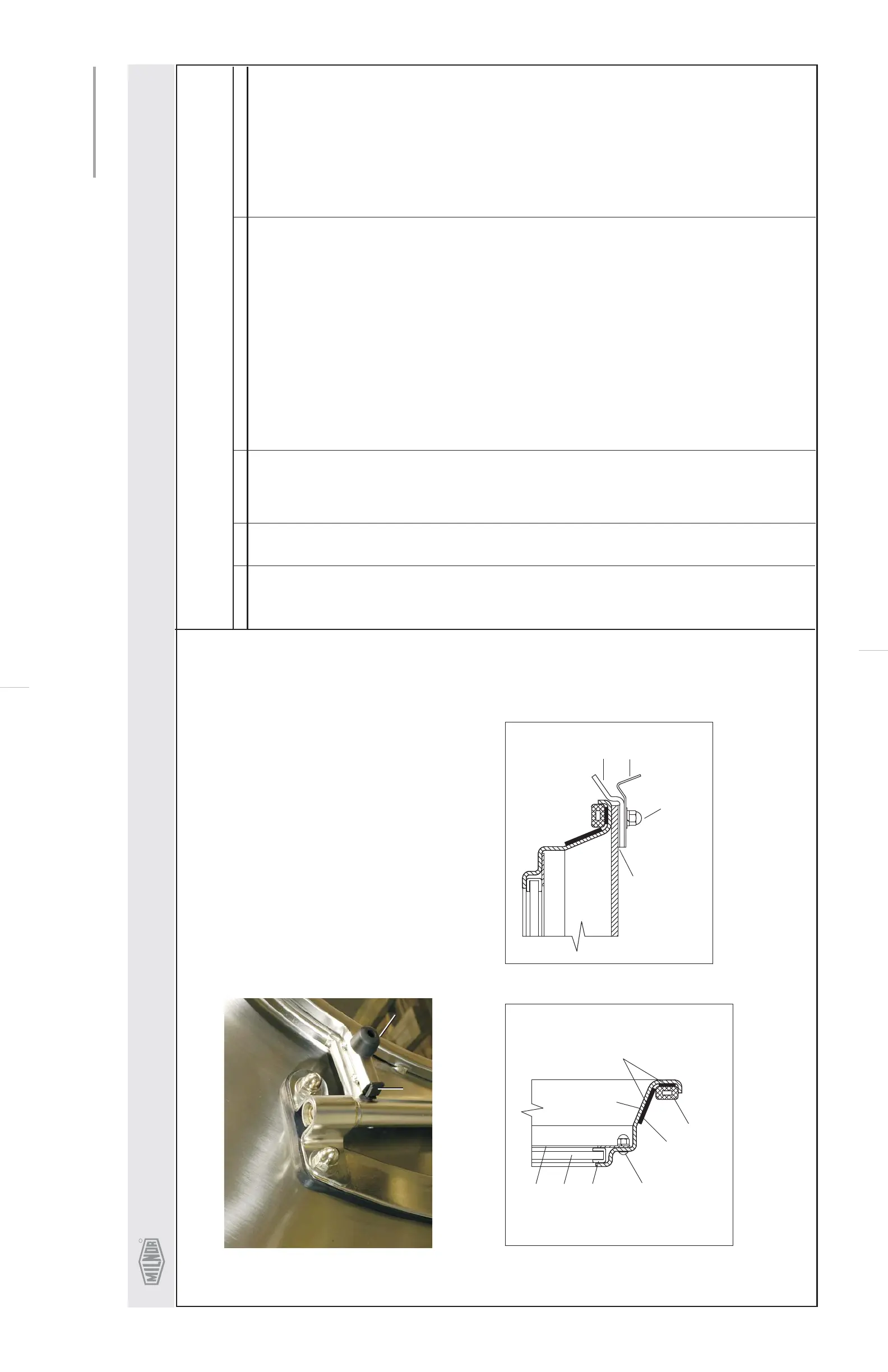

Parts List—Door Assembly
. ---------------------------------------------------------------------ASSEMBLIES------------------------------------------------------------------
A A13 03500H ASSY=SHELLDOOR 3621 C4E 3621C4E B A13 03500G ASSY=SHELLDOOR DRAWN, 36XX 3621V5J/V7J, 3626V5J/V7J C ASD119001B ASSY=SHELLDOOR W/STIFF, 4226 4226V6J, 4230V6J
-------------------------------------------------------------------COMPONENTS------------------------------------------------------------------ AB 1 X2 09220G MACH=SHELLDOOR DRAWN, 36XX C 1 W2 11904Q WLMT=SHELLDOOR W/STIFF, 4226 A 2 02 09219A DR GLASS=3621 C4E W/LOGO B 2 02 09219 DRGLASS 14+13/16"36W+DRWN DR C 2 02 12008 DOORGLASS 17"DIA=4226W DOOR AB 3 02 09141 A GASKET-DORGLAS GTR52-5220-1 C 3 02 12054 DOOR GLASS GASKET AB 4 02 09129 RING=DOOR GLASS PRESS-18"OPG C 4 02 11904P RING=GLASS RETAINER-4226RWP all 5 03 01423H LATCH GUARD = ILOC 3015-20 all 6 03 01420G DOOR STRIKER = ILOC all 7 02 11904K SHIM=DOOR HANDLE=4226RWP all 8 20C018 ADHESIVE-3M #1357-QT CN AB 9 02 14431 EXTR BAND STAMPED SS CYLDOOR C 9 02 11904U BUMPER=CYL DOOR STAMPED42RWP AB 10 02 14168 SPONGE DOORGASKET=BLACK C 10 02 11904V DOOR GASKET 4226RWP MED BLACK all 11 02 09221 HINGE=SHELL DOOR 18" DRAWN S all 12 15Q077 SOKSETSCR 1/4-20X1/4 ZINC ALLE all 13 02 02815 PLAIN BRG=DOOR HINGE-NYLON all 14 02 12144 PIN-HINGE=20+18" DOORS all 15 15U201 FLATWASH 7/80DX3/8IDX.062THK S A 16 02 02817 FLANGE BRG=DOOR HINGE-NYLON BC 16 54E017 FLGBRG3/8X5/8X1.25BRZ FB610-10 all 17 51PB0KM SQUARE PLUG-CAPLUG#1/2-16-18 all 18 60C080 RECESS BUMPER RUBBERLAVELLE #7 all 19 15P103 TRDCUT-F RDHDSLOT 8-32UNCX1/2 all 20 15K031 BUTSOKCAPSCR 1/4-20X1/2 SS18-8 all 21 24G020N ROLLED WASH.252ID NYLTITE 25W all 22 15U181 LOCKWASHER MEDIUM 1/4 SS18-8 all 23 15G140 HXCAPNT 1/4-20 #C250=20 NKLPLT all 24 15N191 FLATMACHSCR 1/4-20X7/8 SS18-8
BMP110053/2011405B
(2 of 2)
3621C4E, 3621V5J/V7J, 3626V5J/V7J, 4226V6J, 4230V6J
Section BB: Door Glass and Gaskets
4
2
3
B25 B26 B22 B23
9
10
1
Door Assembly: 4226V6J,4230V6J
8
18 19
17
Door Assembly
Section CC: Door Striker
6 5
7
22,23,24
69
