NO
AIR GAP
2
DETAIL A:
DOOR LOCK SWITCH “OFF”
INSERT ITEM 2.
ADJUST THE
SWITCH TO BE
“OFF”.
NO
AIR GAP
2
DETAIL B:
DOOR LOCK SWITCH “ON”
INSERT ITEM
2. ADJUST THE
SWITCH TO BE
“ON”.
3/16” MINIMUM
CLEARANCE
DETAIL C:
DOOR CLOSED SWITCH
MEASURE THIS
WHILE THE
SLIDER IS
DOWN.

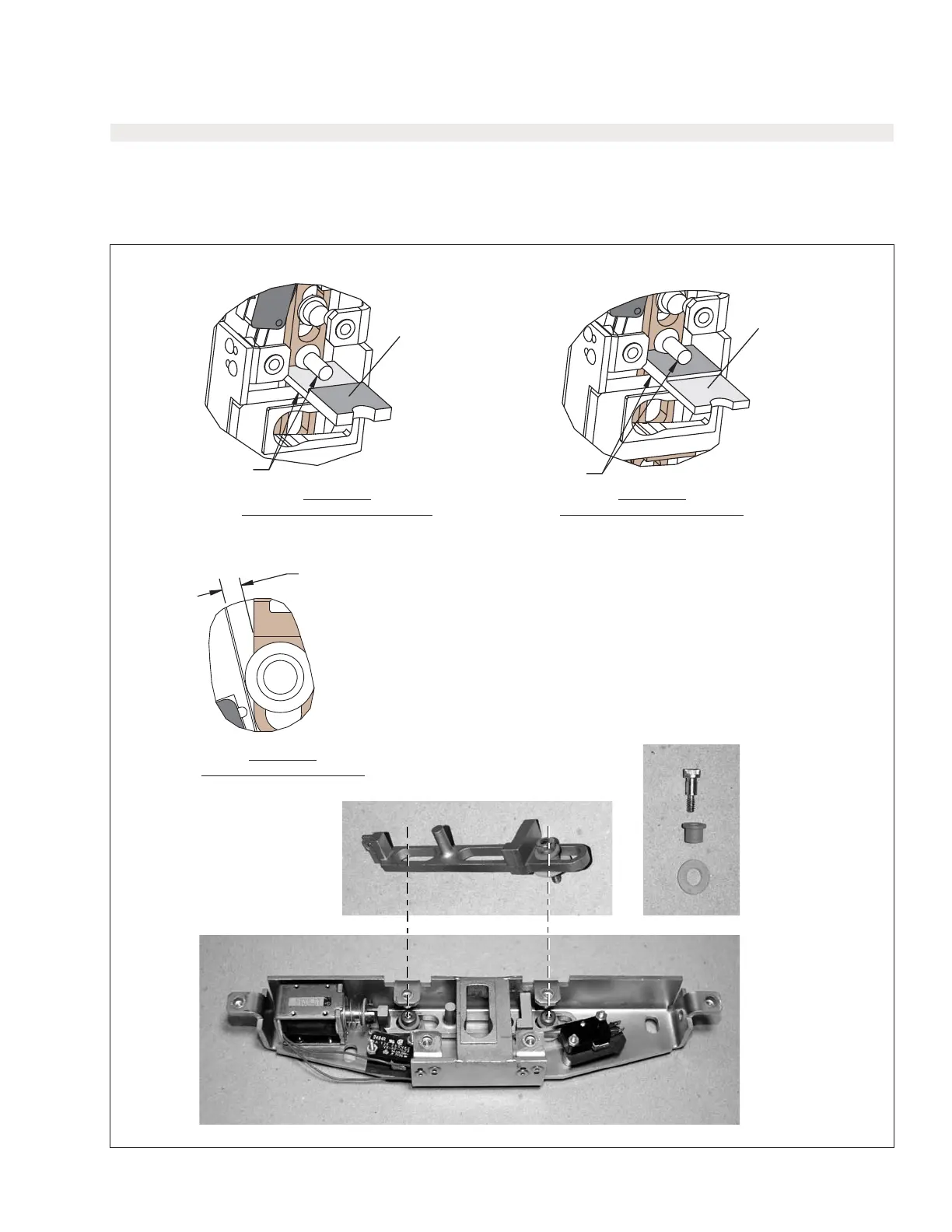

Figure 2: Slider and Settings
Page (2 / 3)
PELLERIN MILNOR CORPORATIONPELLERIN MILNOR CORPORATION
Door Lock Mechanism
MCR27E5, MWR27E5; 3015T6X,VRJ,V8Z; 30022T6X,VRJ,V8Z; MWF27J8, MWF27Z8; 30022X8R
36021V5Z, 36021V7Z, 36026V5Z, 36026V7Z, 42026V6Z, 42030V6Z
BMP130002/2016434A
78
