page 3
1. Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
2. Wear ear protectors when using the tool for extended periods. Prolonged exposure to high intensity noise can cause hearing loss.
3. Keep hands away from all cutting edges and moving parts.
4. Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a
MILWAUKEE
service facility for a free
replacement.
5. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause
cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paint
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
SPECIFIC SAFETY RULES

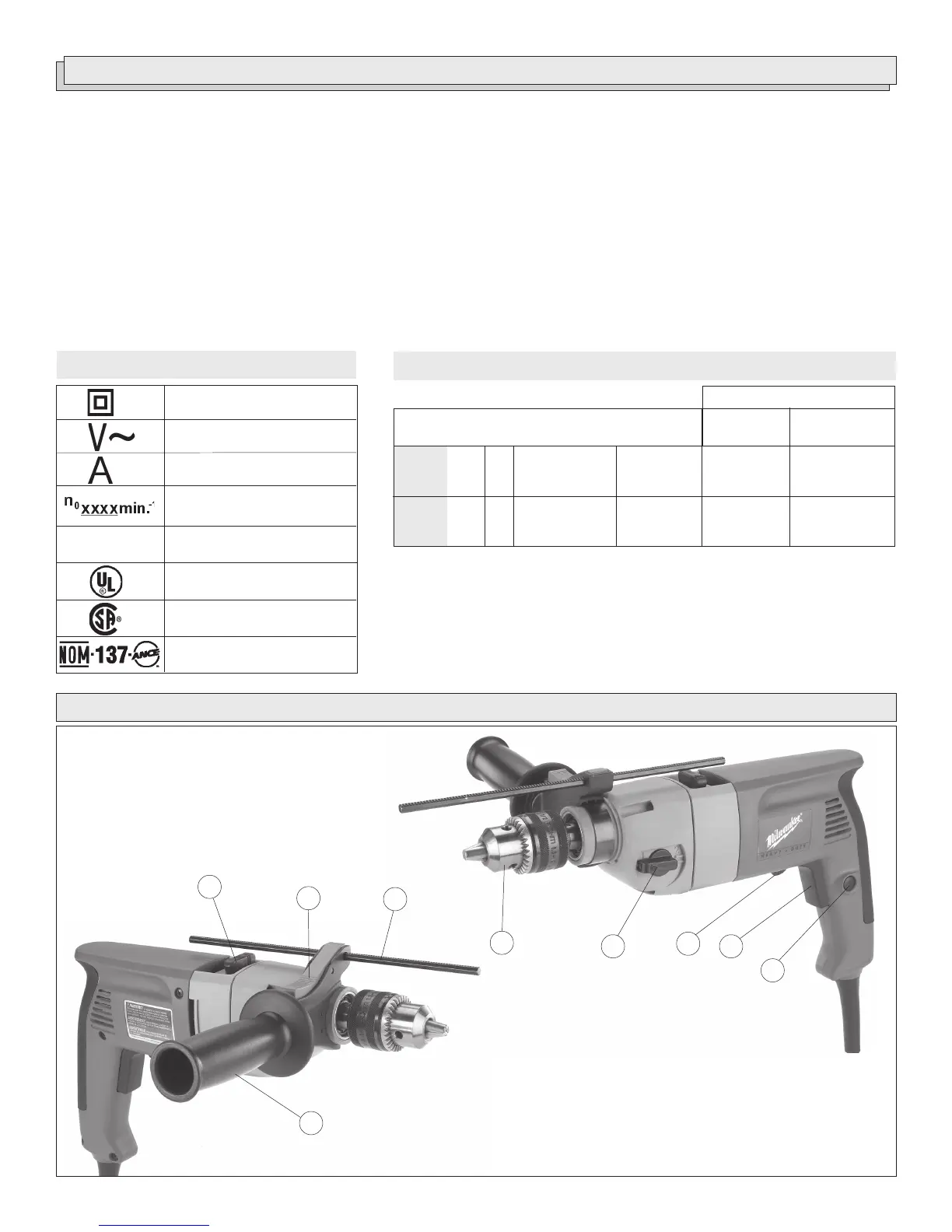

FUNCTIONAL DESCRIPTION
1. Side handle
2. Depth guage
3. Clamping lever
4. Hammer/Drill lever
5. Lock button
6. Trigger
7. Forward/Reverse lever
8. Speed selector
9. Chuck
4
3
5
7
2
1
6
8
9
Specifications
Rotary Hammer
(concrete)
No Load
RPM
Low 0 - 1350
High 0 - 2500
No Load
Blows per
Minute
22,000
40,000
Cat.
No.
5378-20
Twist
Drill
Bit
1/2" - 1-1/2"
Carbide Tipped
Percussion
Bit
5/8"
Drill Only
(steel or wood)
Tool
Capacities
Volts
AC
120
A
7.5
No Load Revolutions per
Minute (RPM)
Double Insulated
Symbology
Canadian Standards Association
Underwriters Laboratories, Inc.
Alternating Current
Amps
Mexican Approvals Marking
BPM
Blows per Minute (BPM)
