Milwaukee 9561 - HOIST COMPONENTS; Basic Hoist Parts List

21
MJC680-2 Rev AA April 2019

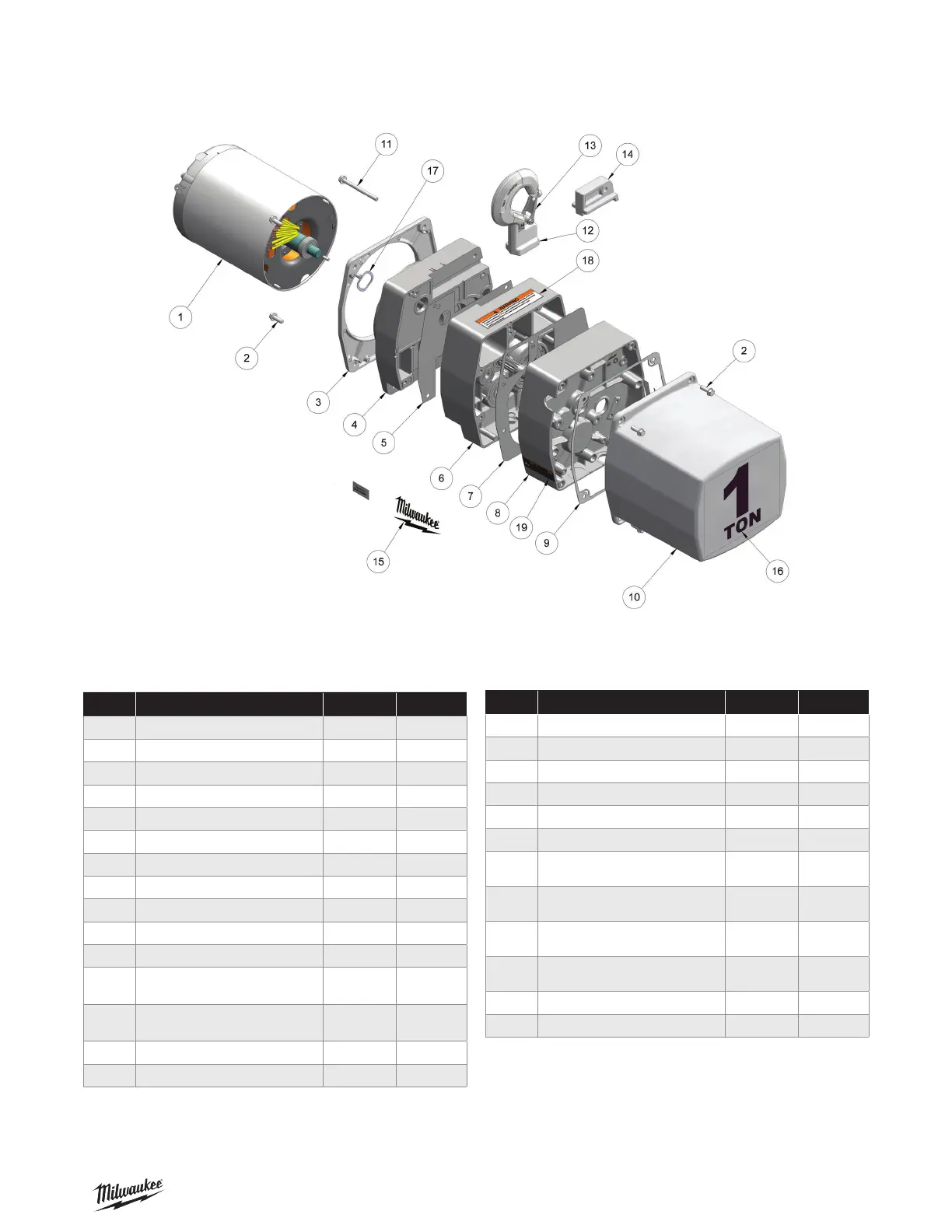

FIGURE 12 – BASIC HOIST
Ref. no Description Part No. Qty
1 Motor (See Figures 13 & 14) - 1
2 Cover Screw H2976P 1
3 Trim Cover JM37 1
4 Sheave Housing JM33-1
5 Sheave Housing Gasket JM560-3 1
6 Transmission Housing JM35-1 1
7 Transmission Housing Gasket JM560-2 1
8 Transmission Cover JM34-2 1
9 Electrical Cover Gasket JM563 1
10 Electrical Cover JM36 1
11 Hook Retainer Screw H2709P 1
12
Top Hook Assembly with Latch Rigid
Hook (Std)
3M405A01S 1
12
Top Hook Assembly with Latch Swivel
Hook (optional)
51JM1 1
13 Latch Kit Assembly 4X1305 2
14 Hook Retainer JM285 1
Ref. no Description Part No. Qty
15 Milwaukee Tool Decal (Left Hand) 1
15 Milwaukee Tool Decal (Right Hand) 1
16 Capacity Decal 1/2 ton JM675K05 1
16 Capacity Decal 1 ton JM675K10 1
16 Capacity Decal 2 ton JM675K20 1
17 Spring Washer 360J1 1
Not
Shown
Trolley (Lug Mounted) - 1 Ton & Under 09295 1
Not
Shown
Trolley (Lug Mounted) 2 Ton 09296 1
Not
Shown
Suspension Lug Cross Mounted JM50C 1
Not
Shown
Suspension Lug Parallel Mounted 50JM1 1
18 Elevator Warning Label JL687 2
19 Electrical Warning Label 24842 1
( * )Suspension lug is an option
