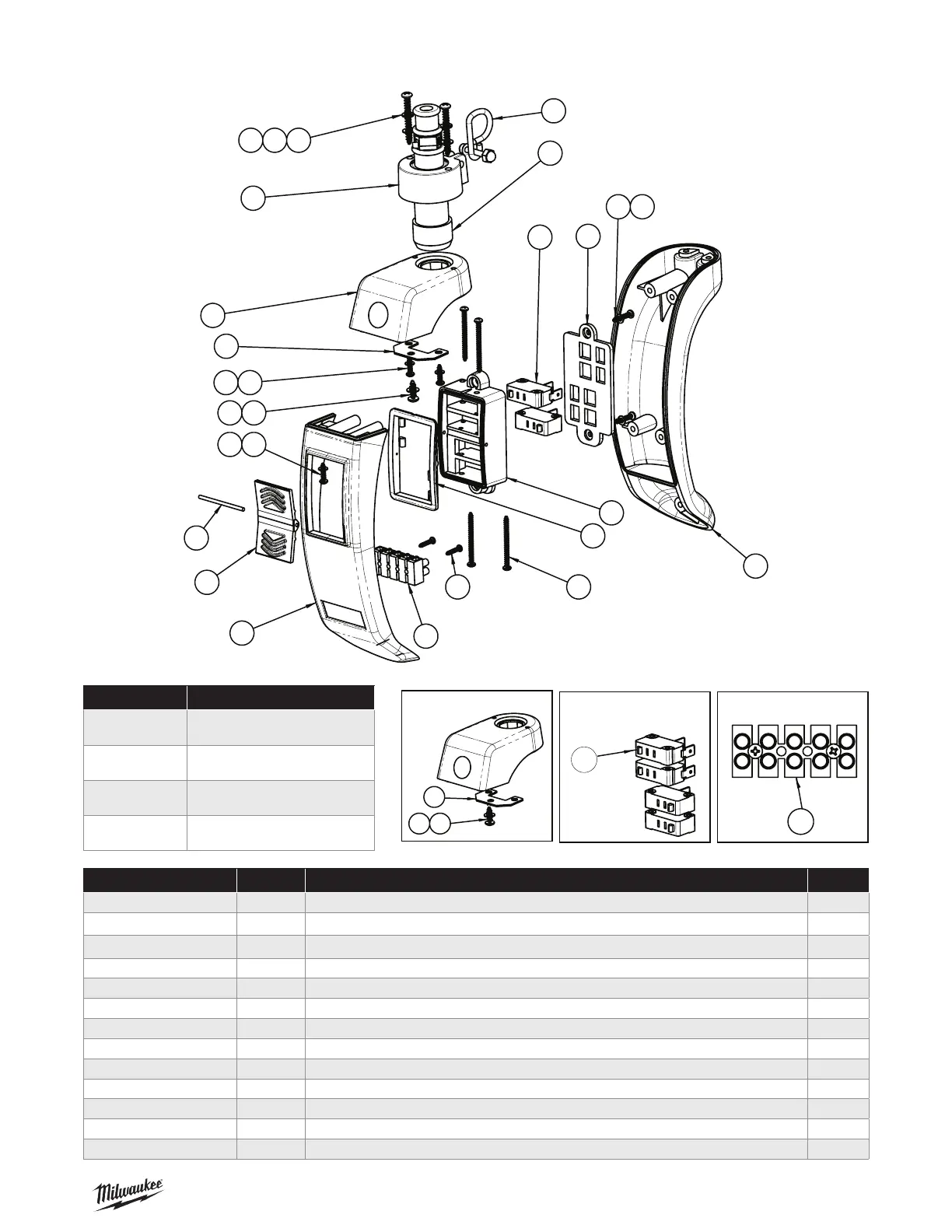

FIGURE 20 - ROCKET UNIVERSAL PENDANT CONTROL
13
1929
** Strain Relief Plate
24
*** 2-Speed Pendants
include 4 Switches
26
**** Screw Terminal Strip
23
4
24***
10
12
7
13
6
3
2829
2
14
26****
15 18
5
25
1627
16
17 27
20
27
1929
*
**
Part No. Description
ECUR-1S
Rocket Pendant Control - Single-Speed,
No E-stop
ECUR-2S
Rocket Pendant Control - 2-Speed,
No E-stop
ECUR-1S-25P
25 PACK: Rocket Pendant Control -
Single-Speed, No E-stop
ECUR-2S-25P
25 PACK: Rocket Pendant Control -
2-Speed, No E-stop
Part No. Ref No. Description Qty.
Ecur-0001 Strain Relief Kit 1
23 Strain Relief 1
3 Strain Relief Collar 1
20 Screw M4 X 1.79 x 33.5 Thd Roll Plstc 2
29 Washer M4 Lk Stt 2
28 Washer M4 x 8mm Od Sst 2
- Instruction Sheet 1
Ecur-0010 Switch Repair Kit, 2 Speed, 4 Switch 1
7 Switch Gasket 1
10 Switch Housing 1
12 Pin Hinge 1
14 Retainer Plate 1
17 Screw M3 X 1.34 x 16mm Lg Thd Roll Plstc 2
