Milwaukee 9561 - LIMIT SWITCH MECHANISM; Limit Switch Assembly Parts

31
MJC680-2 Rev AA April 2019

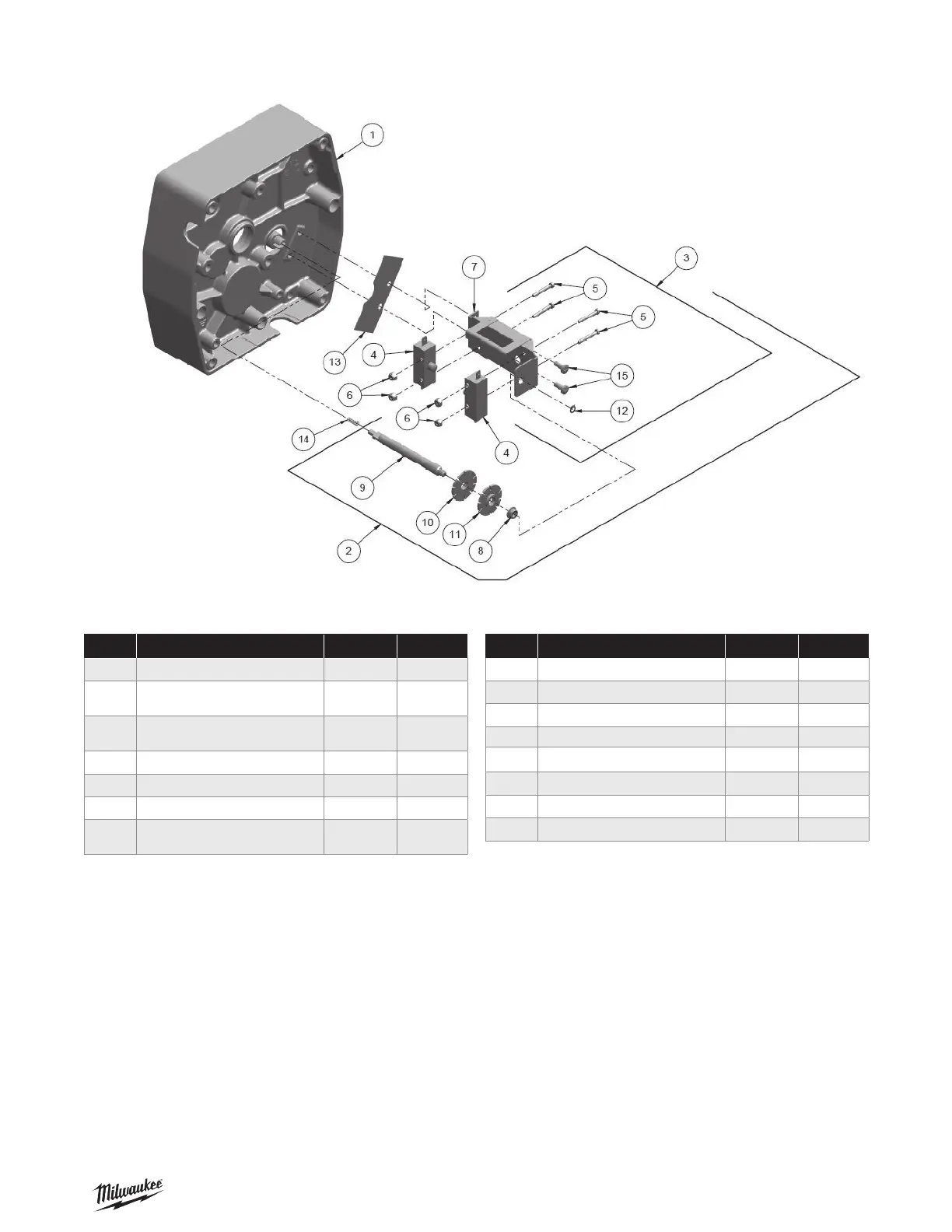

FIGURE 21 — LIMIT SWITCH ASSEMBLY
Parts List for Limit Switch Assembly
Ref. no Description Part No. Qty
1 Transmission Cover JM34-2 1
2
Limit Switch Assembly (Includes items
4-12)
918JG4 1
3
Limit Switch Bracket Assembly
(Includes items 4-8)
918JG3 1
4 Switch 815J1 2
5 6-32UNC X 1" Screw H1402P 4
6 6-32UNC Elastic Locknut H3944 4
7
Limit Switch Bracket & Guide Assembly
(Includes Item 8)
JF900-3 1
Ref. no Description Part No. Qty
8 Bushing JF531-4 1
9 Limit Switch Shaft JF117-3S 1
10 Limit Switch Nut (silver) SK6000-63Z 1
11 Limit Switch Nut (gold) SK6000-63W 1
12 Retaining Ring H5520 1
13 Insulator JF754 1
14 Spring JF343-3 1
15 10-24UNC x 1/2" Screw H2970 2
