Floor Stand Assembly Instructions continued
11
2
L-brackets

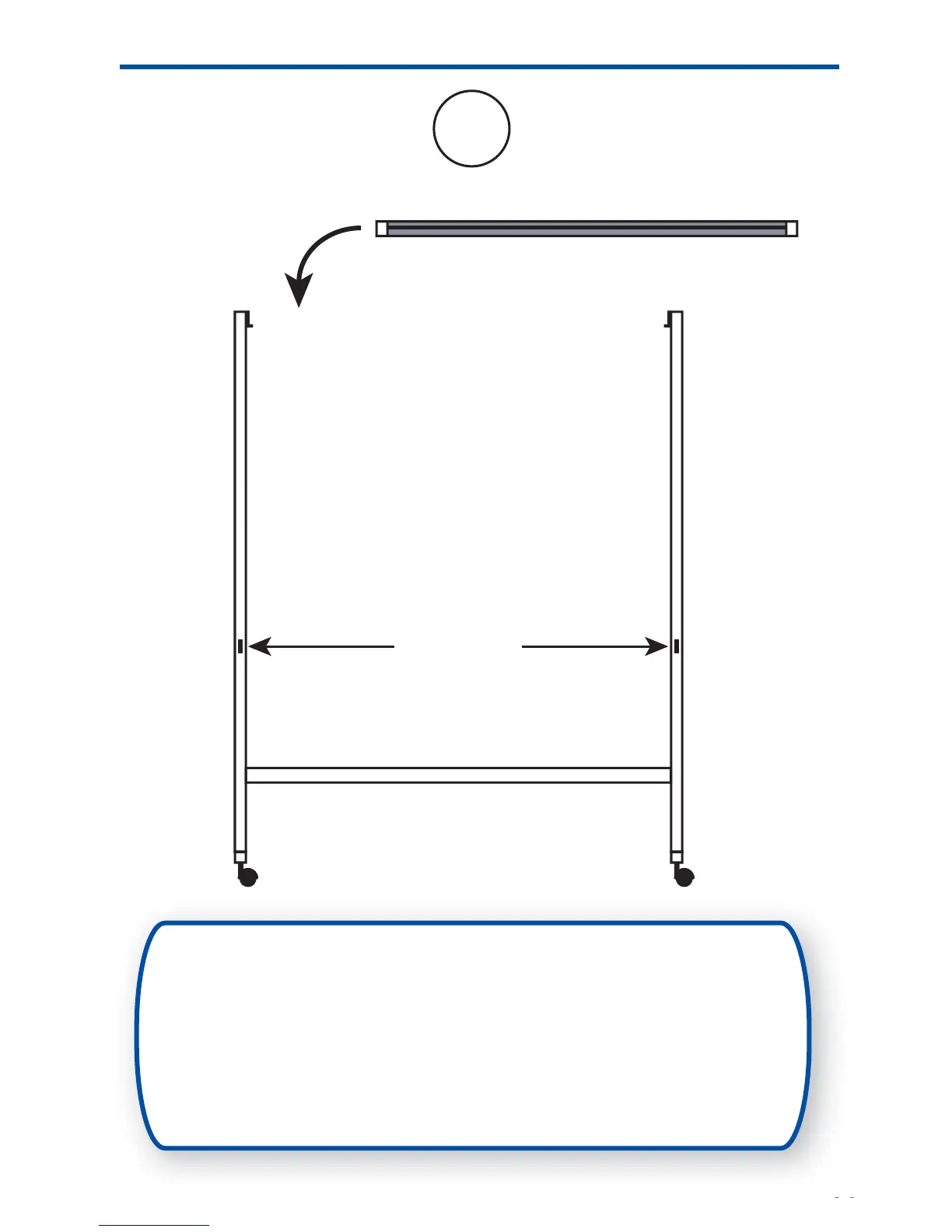

Position the partially assembled floor stand upright. Use
the hex key and 2 of the bolts and 2 of the washers to
assemble the top crossbeam to the floor stand. Be sure
to orient the top crossbeam such that the mimio Board
mounting bracket faces in the same direction as the
2 L-brackets and the label on the top crossbeam marking
TOP correctly points up.
