Important

This device requires unlocking prior to use. For all

unlocking instructions and options, prior to on-site

installation, please go to mimosa.co/start.

Power Requirements

This device accepts +/- 48VDC complying with

802.3at (PoE+), and supports all Mimosa Gigabit

PoE devices.

Included Items

C5 device, Ethernet cable gland, stainless steel

pole clamp, and silicon dielectric gel packet.

Required Items

• Any Mimosa Gigabit PoE device.

• Mimosa FlexiMount or Mimosa J-Mount for

optimal device aiming.

• Minimum 10 AWG (5.26 mm

) ground cable.

• Mimosa Gigabit NID.

• Phillips head screwdriver.

Extensive Instructions and Support

mimosa.co/support

1. Mount

Attach the device to your preferred mount using

the included pipe clamp.

2. Ground

Attach ground wire (not

included) to integrated

grounding screw point.

Install the Mimosa

Gigabit NID at the

premises entry point

for Electrostatic Dis-

charge (ESD) protec-

tion.

To prevent device damage, avoid ground voltage

potential dierence between the device ground

and the Gigabit NID.

AND

To device

To premises

To ground

3. Connect

Push unterminated

shielded CAT6/6A Eth-

ernet cable through the

hole in the bottom of

the gland.

Apply a bead of dielec-

tric silicone to Ethernet

pins, the cable entry

area and top ridge of

the gland.

Then crimp the RJ45

connector to the cable.

Connect the Ethernet

cable and press the

gland onto the device’s

plastic retaining clips.

4. Unlock and Congure

Visit mimosa.co/start to unlock the device and

detailed conguration instructions.

Warnings, Warranty, Compliance &

Regulatory Statements

Export Control

These commodities, technology, or software were exported from the United

States in accordance with the Export Administration Regulations. Diversion

contrary to U.S. law is prohibited.

Important Safety and Handling Information

Failure to follow any of the safety instructions in this guide, instructions on any

Mimosa-provided packaging, and heed WARNINGS (indicated by ), could

result in re, electric shock, other injury or death, and incur damage to this

product or other property and void the product’s Limited Warranty.

There are no End User serviceable parts inside the equipment.

Read all operating and safety instructions contained herein and accompanying

the product as provided by Mimosa Networks, Inc. (“Mimosa”).

Electrical Safety Information

Do not operate this product in any location that can be submerged by

water.

Do not install or maintain this product during the presence of an

electrical storm to avoid risk of electric shock from lightning.

In order to comply with the Mimosa Limited Warranty conditions in this

document, you must properly ground the device according to the

included instructions. Failure to properly ground the device according to

the included instructions and use shielded CAT6/6A Ethernet cabling will

violate the product warranty and could lead to serious injury or death.

This device is a Safety Class II-compliant device including supplemental

insulation to protect against electric shock, and does not require a

connection to earth ground.

Installation of the product must comply with local and national electrical

codes.

Power specications for connected devices are indicated on the device’s

own label or documentation. Connecting to any power source that does

not meet the voltage, frequency and current requirements listed may

damage the power supply or product, and pose a re hazard.

Mandatory Grounding Instructions

IMPORTANT: In order to comply with the Mimosa Limited Warranty conditions in

this document, you must properly ground the device according to these instruc-

tions. Failure to properly ground the device will violate the product warranty.

Required Step 1- Direct Grounding on the Device:

A minimum grounding wire of 10 AWG (5.26 mm

) with a secured grounding

terminal, and shorter in length than 1 meter is required. It is NOT supplied with

the product.

1. Ensure that NO power is being supplied to the product.

2. Locate the Ground point screw next to the Ground icon on the device

3. Remove the provided Ground Screw

4. Thread the ground wire terminal and ground wire meeting the above speci-

cations over the screw removed in the previous step.

5. Replace and tighten the screw with the threaded ground terminal and cable

at the product Ground point.

6. Secure the other end of the grounding cable to the properly grounded struc-

ture (pole, tower, mast, etc.) meeting local and national electrical regulations

and codes.

Required Step 2 - Use Mimosa Gigabit NID for Grounding via CAT6/6A Shielded

Ethernet:

The Mimosa Gigabit NID is required to provide enhanced Electrostatic Dis-

charge (ESD) protection for devices and the premises during electrical events.

Failure to follow all instructions provided with the separately sold Mimosa

Gigabit NID will violate the product warranty and could lead to serious injury or

death.

End User Product Warranty

Products purchased from Mimosa Networks, Inc. (“Mimosa”) are warranted

against defects in material, and workmanship for a period of either (i) twelve

(12) months from the date of activation, or (ii) thirty-six (36) months from the

original date of shipment, whichever is earlier. Please go to www.mimosa.co/

warranty to determine whether your product is in warranty.

The sole responsibility of Mimosa under this warranty shall be limited to the

repair or replacement of in-warranty defective product, at Mimosa’s sole option.

Out of warranty products shipped to Mimosa will not be returned.

This warranty does not cover costs associated with the removal and/or rein-

stallation of the product for repair nor for any parts that are readily replaced in

normal use.

Mimosa or its designated partner will repair or replace product found to be

defective during the dened warranty period.

The End User is responsible for delivering defective product in accordance with

Mimosa’s Return Material Authorization (RMA) processes published at

www.mimosa.co/legal/RMA

Limitation of Warranty

Mimosa’s product warranty is invalidated if the RMA product is altered or

otherwise tampered with in a manner that modies the product from its original

shipping conguration and/or form factor, and could violate the End User’s

authority to operate the equipment, unless said activity was performed by or

with the written authorization of a Mimosa representative.

Modications include:

(a) External surfaces that have been painted, labeled, or otherwise modied

from the original shipping condition.

(b) Modications of the product with third party hardware, rmware, and/

or software.

but not limited to, lightning strikes, negligence, accident, or misuse.

(d) Any product damaged due to incorrect installation, including, but not lim-

ited to, improper product mounting, cabling, cabling defects or connection

to power.

(e) Failure induced by connected third party products.

Improper grounding, or failure to ground the product as instructed in this guide

will void the End User warranty.

Mimosa will not warrant any product which has been installed outdoors without

the use of minimum CAT 6/6A shielded Ethernet cable and proper earth

grounding.

Disclaimer

EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, MIMOSA NET-

WORKS AND ITS SUBSIDIARIES, LICENSORS AND AFFILIATES ( COLLECTIVELY,

“MIMOSA”), AND ANY THIRD PARTY DATA, SERVICE, SOFTWARE AND HARDWARE

PROVIDERS MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND

AND HEREBY DISCLAIM ALL WARRANTIES, EXPRESS OR IMPLIED, STATUTORY

OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, ANY REPRESENTATIONS OR

WARRANTIES OF DESIGN, MERCHANTABILITY, ACCURACY, QUALITY OF SERVICE

OR RESULTS, AVAILABILITY, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR

PURPOSE, NON-INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY

COURSE OF DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH SUCH

PRODUCTS AND SERVICES. YOU ACKNOWLEDGE THAT NEITHER MIMOSA NOR

ITS THIRD PARTY PROVIDERS CONTROL YOUR EQUIPMENT OR THE TRANSFER

OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING THE INTERNET,

AND THAT THE PRODUCTS AND SERVICES PROVIDED BY MIMOSA MAY BE

SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND

OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES.

MIMOSA AND ANY THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY

INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS,

CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM

ANY OF THE FOREGOING.

IN ADDITION, MIMOSA MAKES NO WARRANTY OR UNDERTAKING, AND MAKES

NO REPRESENTATION OF ANY KIND THAT THE LICENSED PRODUCTS WILL MEET

YOUR REQUIREMENTS, ACHIEVE ANY INTENDED RESULTS, BE COMPATIBLE

OR WORK WITH ANY OTHER APPLICATIONS, SYSTEMS OR SERVICES, OPERATE

WITHOUT INTERRUPTION, MEET ANY PERFORMANCE OR RELIABILITY STAN-

DARDS, BE ERROR FREE OR THAT ANY ERRORS OR DEFECTS CAN OR WILL BE

CORRECTED, OR THAT THE LICENSED PRODUCTS ARE NOT VULNERABLE TO

FRAUD OR UNAUTHORIZED USE.

Limitation of Liability

EXCEPT TO THE EXTENT PROHIBITED BY THE LAWS IN YOUR JURISDICTION, IN

NO EVENT WILL MIMOSA OR ITS SUPPLIERS OR LICENSORS BE LIABLE FOR SPE-

CIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST

PROFIT, LOST DATA, OR DOWNTIME COSTS), NOR FOR DAMAGES BASED ON

UNAUTHORIZED USE OR ACCESS, ARISING OUT OF THE USE, INABILITY TO USE,

OR THE RESULTS OF USE OF THE PRODUCT, WHETHER BASED IN WARRANTY,

CONTRACT, TORT OR OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL MIMOSA, ITS

SUPPLIERS’ OR ITS LICENSORS’ DIRECT LIABILITY EXCEED THE VALUE OF THE

LICENSED PRODUCTS GIVING RISE TO SUCH LIABILITY. THESE LIMITATIONS

SHALL APPLY NOTHWITHSTANDING ANY FAILURE OF ESSENTIAL PURPOSE OF

ANY LIMITED REMEDY. IN NO EVENT SHALL MIMOSA BE RESPONSIBLE FOR

DAMAGES OR CLAIMS OF ANY NATURE OR DESCRIPTION RELATING TO NET-

WORK PERFORMANCE, INCLUDING COVERAGE, YOUR SELECTION OF MIMOSA

PRODUCTS FOR YOUR PARTICULAR APPLICATION AND/OR FAILURE OF MIMOSA

PRODUCTS TO MEET GOVERNMENT OR REGULATORY REQUIREMENTS.

Some legal jurisdictions do not allow exclusions of implied warranties or condi-

tions, or for the exclusion or limitation of liability for incidental or consequential

damages, so the above exclusion may not apply to you. You may have other

rights specic to your legal jurisdiction. EXCEPT TO THE EXTENT ALLOWED BY

THE LAW OF YOUR JURISDICTION, THESE WARRANTY TERMS DO NOT EXCLUDE,

RESTRICT OR MODIFY, AND ARE IN ADDITION TO, ANY MANDATORY STATUTORY

RIGHTS APPLICABLE TO YOU IN THE LICENSE OF ANY EMBEDDED SOFTWARE.

The United Nations Convention on Contracts for the International Sale of Goods

shall not apply to any transactions regarding the sale of the Products.

Industry Canada

This Class B digital apparatus complies with Canadian CAN ICES-3(B).

Cet appareil numérique de la classe B est conforme à la norme NMB-3(B)

Canada.

Under Industry Canada regulations, this radio transmitter may only operate

using an antenna of a type and maximum (or lesser) gain approved for the

transmitter by Industry Canada. To reduce potential radio interference to other

users, the antenna type and its gain should be so chosen that the equivalent

isotropically radiated power (e.i.r.p.) is not more than that necessary for suc-

cessful communication.

Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne

et son gain doivent être choisies de façon que la puissance isotrope rayonnée

équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une communica-

tion réussie.

5 GHz Integrated Client Device

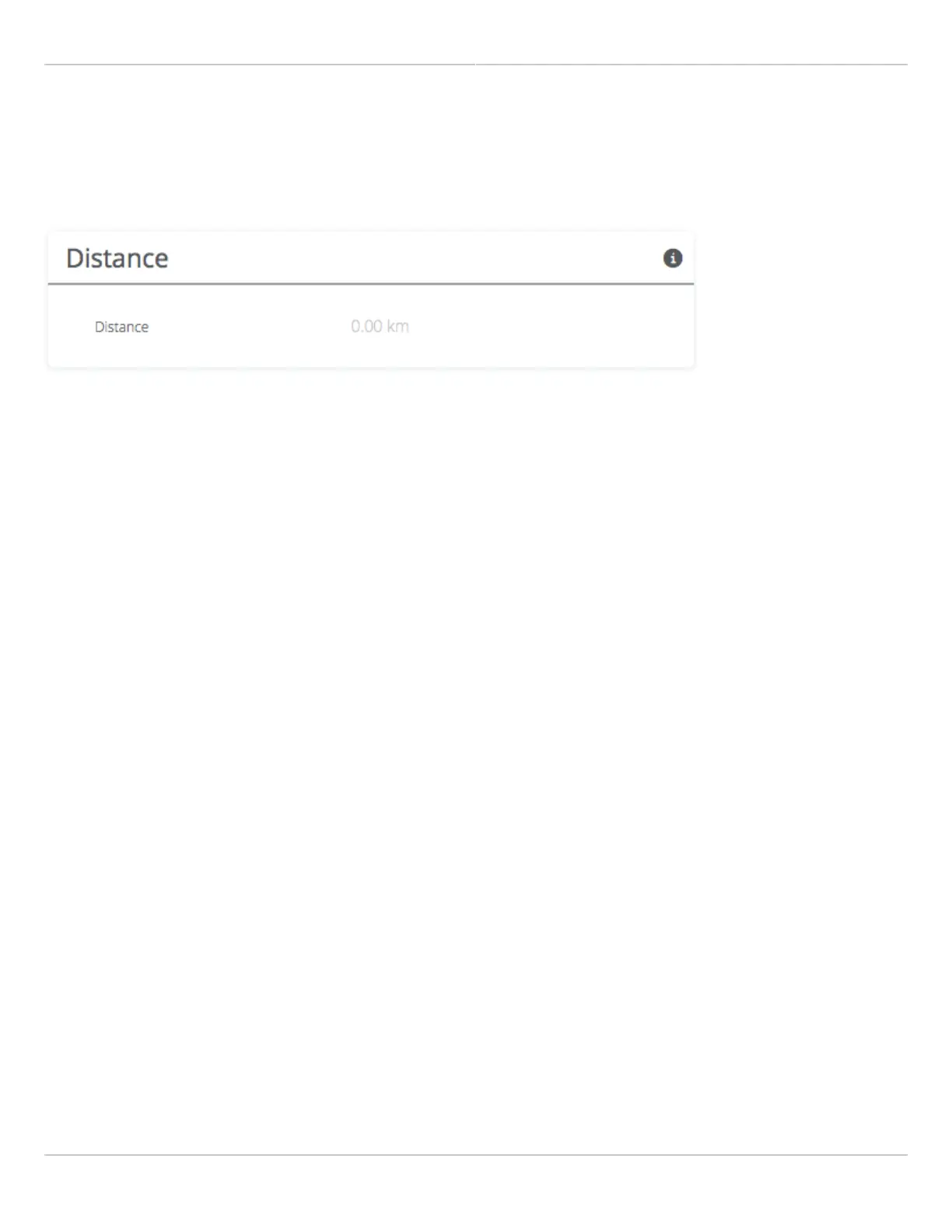

Mimosa C5 - Distance
