Step 10
ASSEMBLY INSTRUCTION

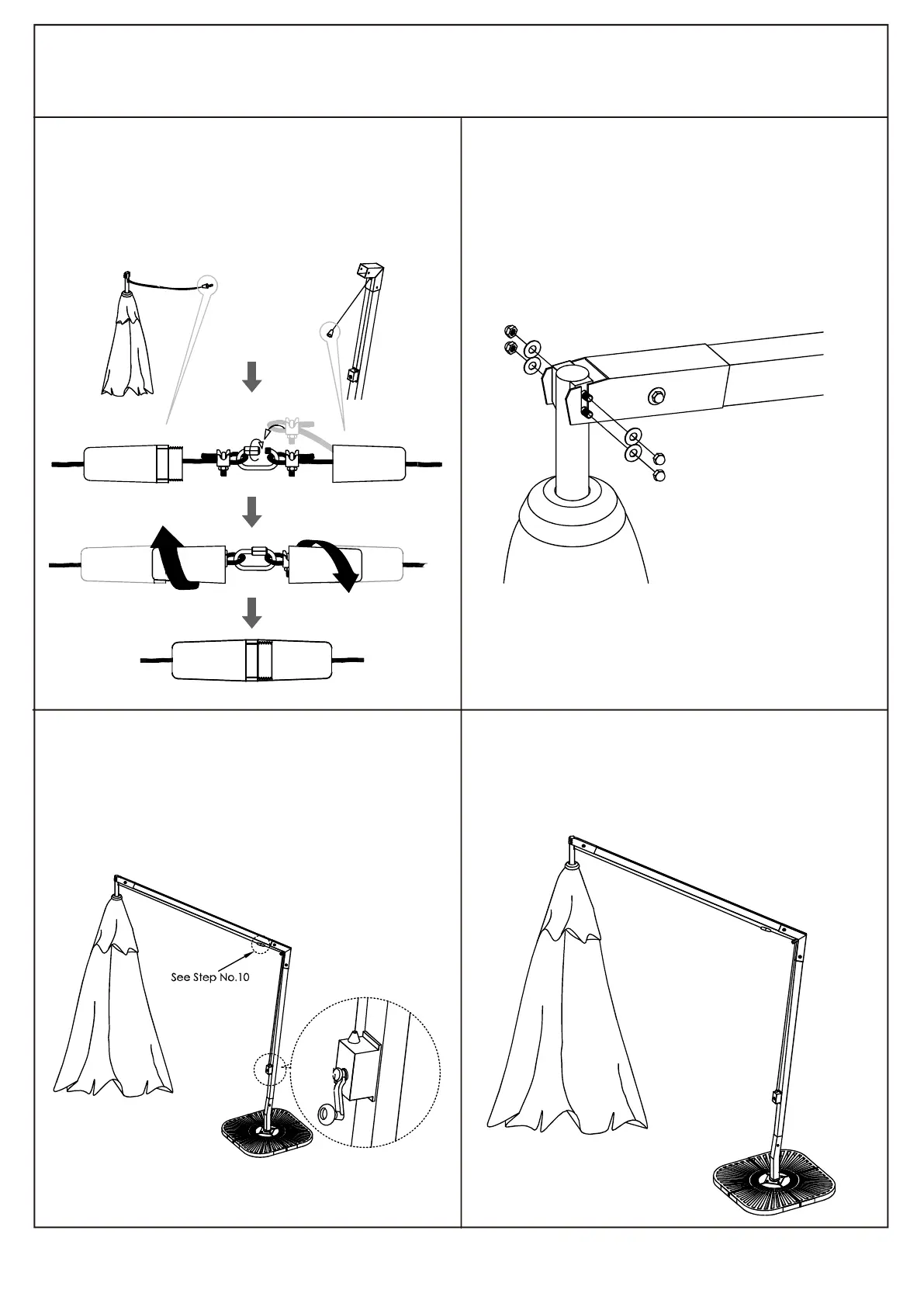

Connect the crank wire together as illustrated.
Once securely tightened, screw together the
protection box (K). This will conceal the wire
connection for added safety.
Insert the frame and canopy (A) into the
square tube hook (I) and secure by tightening
the pre installed nuts.
Insert the crank handle (cc) into the
crank box (J).
Your cantilever umbrella is now ready for use.
#J
#C
#I
#B
#A
Step 11
Step 12
Step 13
#cc
#A
#J
#K
