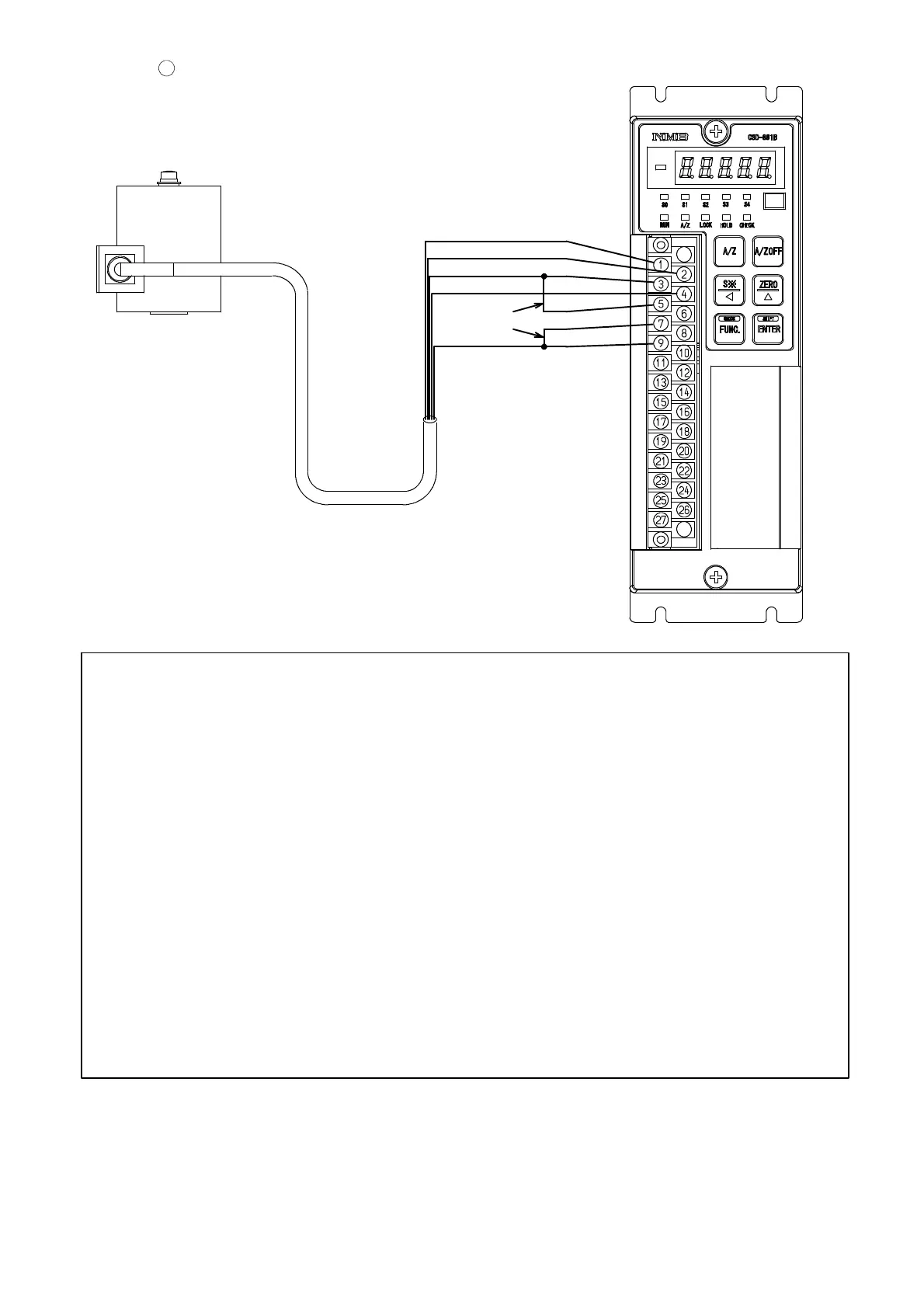

Connection with 1 piece of load cell and CSD−891B
3m
White
Blue ※1
Attached
short bar
Shield
Green ※1
Red
※1 When tension is applied with the application of tension type or
universal(compression/tension) type of load cell, and display of “+”
direction is required, connect “Green” with Terminal No.4 and
“Blue” with Terminal No.2 individually. As there is a case which
standard wiring color is different, please confirm the inspection data
sheet of the load cell being used.
※2 When the length of CAB−502 is more than 30 m totally, there may
have the case that the accuracy is out of warranty because the
resistance of cable makes the input voltage of the instrument
decreased.
※3 When the length of CAB−501 is more than 100 m totally, there may
have the case that the accuracy is out of warranty because the
resistance of cable makes the remote sensing function not worked
fully.
