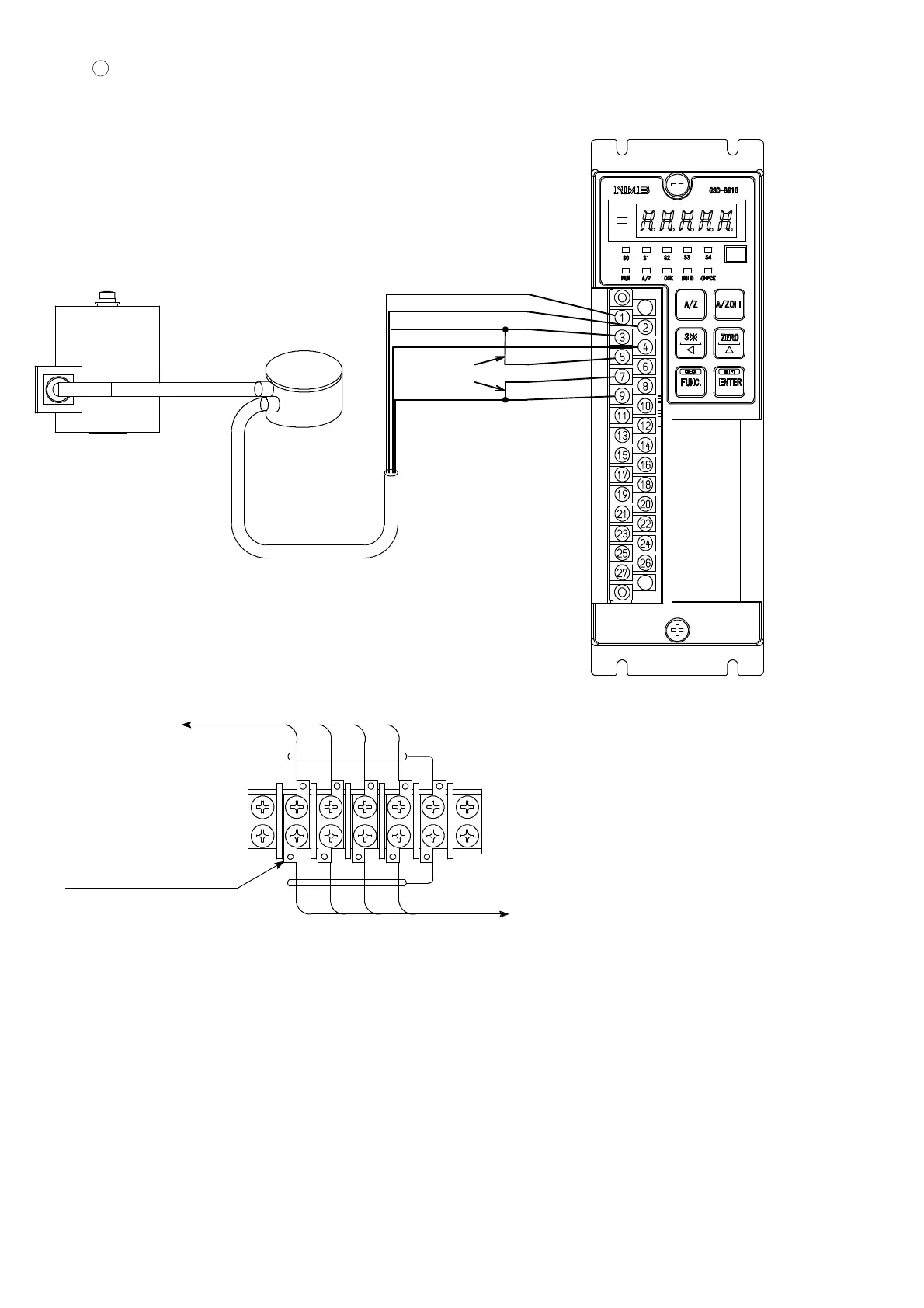

Connection with 1 piece of load cell and a junction box for extension use(B−304) and
CSD−891B
i) When CAB−502(4−cores cable)is used.
Junction box
B−304
CAB−502
※2 (The length of CAB−502 is within 30 m totally.)
3m
White
Blue ※1
Attached
short bar
Shield
Green ※1
Red
Internal wiring diagram of B−304
to CSD−891B
to load cell
RED WHTBLU
GRN YEL(Shield)
Terminal pitch 9.5 mm
Suitable crimp type terminal lugs
：1.25−4or2−4
RED WHTBLU
GRN
YEL(Shield)
