11

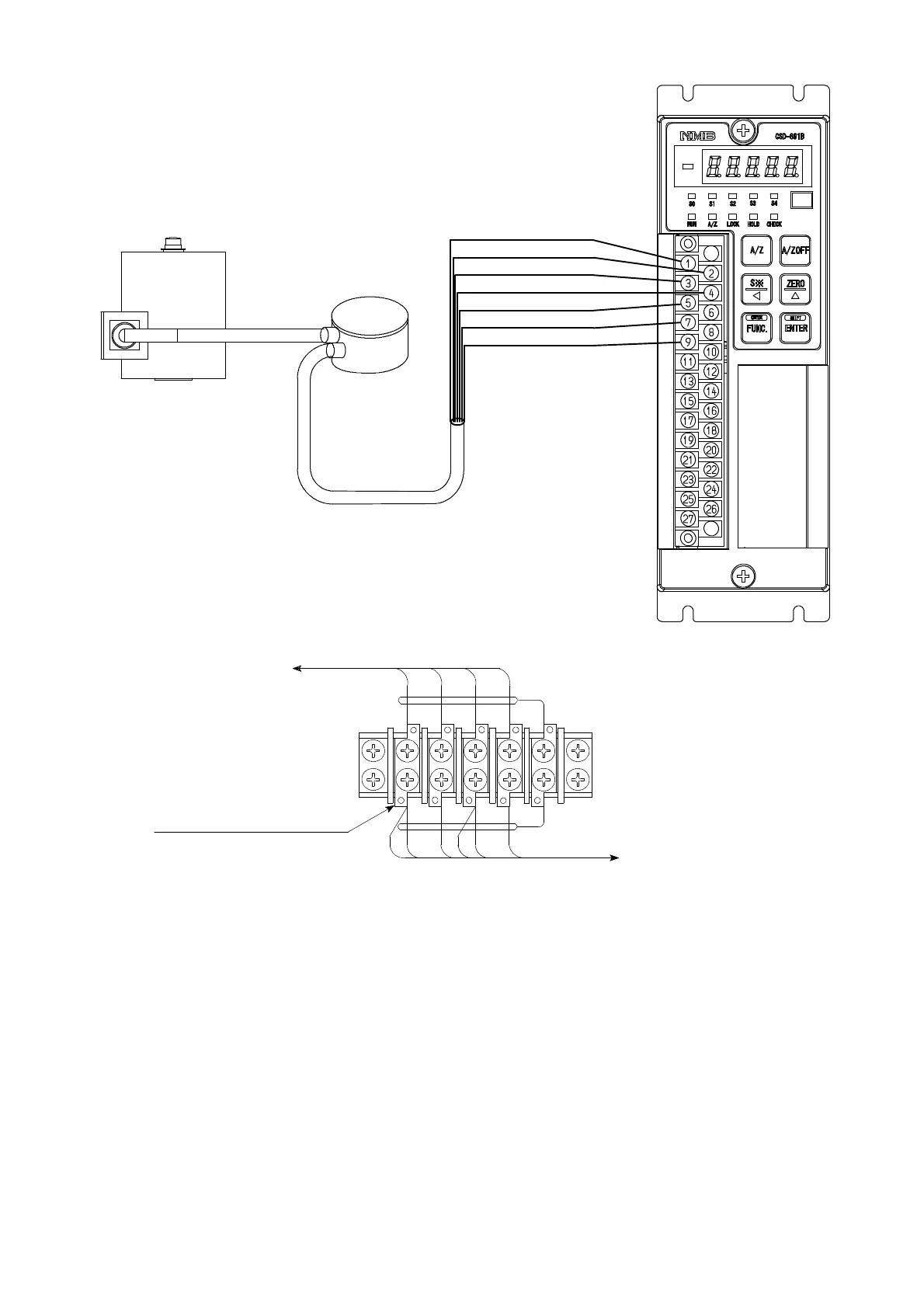

ii) When CAB−501(6−cores cable) is used
Junction box
B−304
CAB−501
※2 (The length of CAB−501 is within 100 m totally.)
3m
Black
Orange
White
Blue ※1
Shield
Green ※1
Red
Internal wiring diagram of B−304
To CSD−891B
To Load cell
RED WHT
BLU
GRN
YEL(Shield)
RED
WHT
BLU
GRN
BLK
ORN
Terminal Pitch 9.5 mm
YEL(Shield)
Suitable crimp−type
terminal lugs:
1.25−4or2−4
