4. Select the desired format or unit of meas‐
ure:
▷ "Language:"
▷ "Consumption:"
▷ "Distance:"
▷ "Pressure:"
▷ "Temperature:"
5. Set the desired unit of measure or lan‐
guage.
Setting the time and date
1. Press button.
2. "Settings"
3. "Time/Date"
4. Select desired menu entry:
▷ "Time:"
▷ "Time format:"
▷ "Date:"
▷ "Date format:"
5. Turn the right knob until the desired setting
is selected.
LED ring on the central
instrument cluster
The concept
The LED ring displays light animations to repre‐
sent specific functions.
Basic displays
Basic functions, for example the tachometer,
can be set to be displayed continually if so de‐
sired.
Event displays
Functions that are only displayed temporarily,
for example the volume or temperature set‐
tings, can be set as event displays.
Several vehicle assistance functions can also be
displayed on the LED ring. This display corre‐
sponds with the displays of the function in the
respective display.

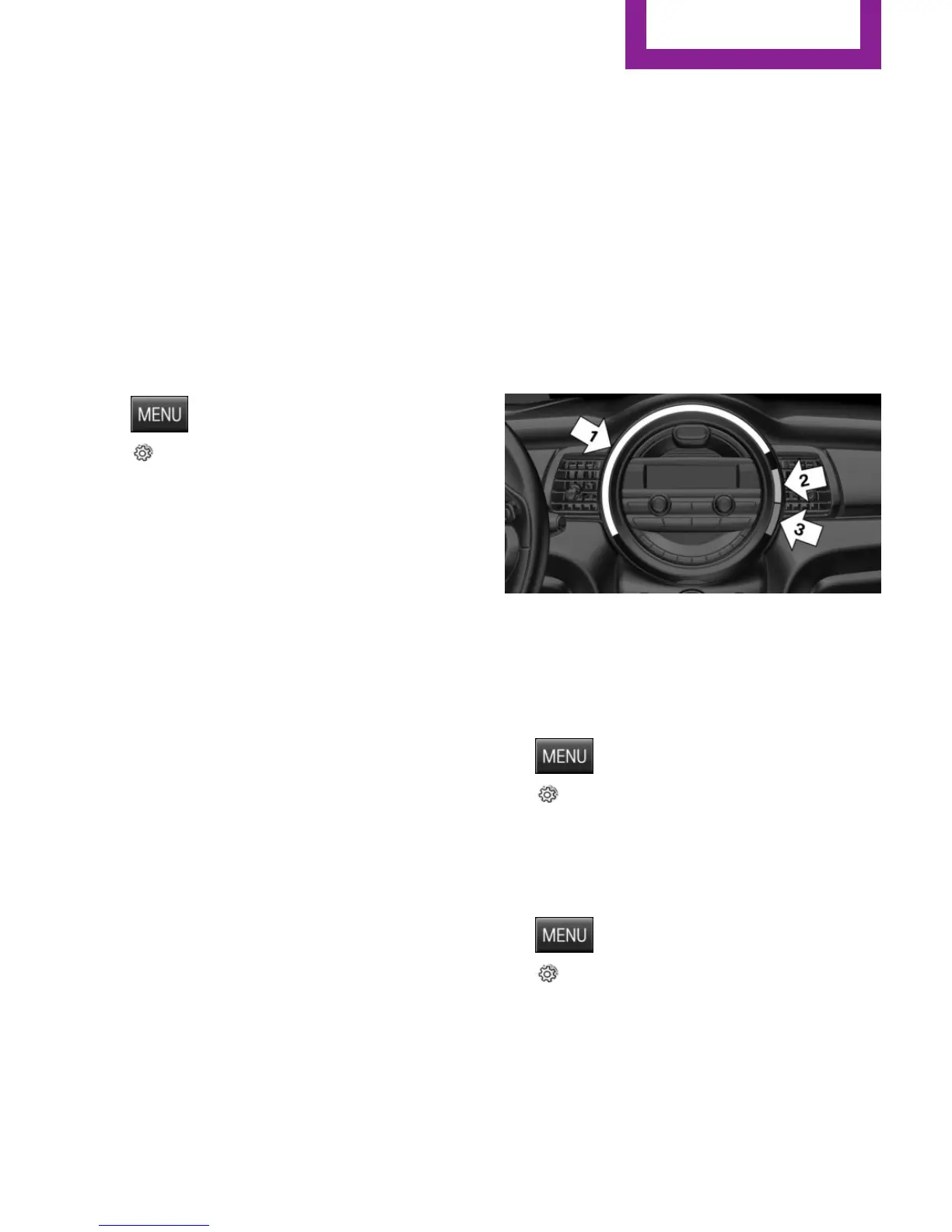

Example: tachometer
Like the tachometer in the instrument cluster,
the light animations of the tachometer's basic
display show the current RPMs and the respec‐
tive RPM warning margins.
Display
▷ Arrow 1: current RPM.
▷ Arrow 2: prewarning field.
▷ Arrow 3: warning field.
Switching on/off LED ring
1. Press button.
2. "Settings"
3. "Center Instrument"
4. "Center Instrument"
Adjusting the LED ring
1. Press button.
2. "Settings"
3. "Center Instrument"
4. "Basic display" or "Event display"
5. Select desired setting.
Seite 73
Displays
CONTROLS
73
