EN/11
Retrofit/installation kit No.: 82 83 0 136 491
Installation instruction No.: 01 29 0 139 395 Status: 06.2001
7. Installing rear coax speakers
0
0

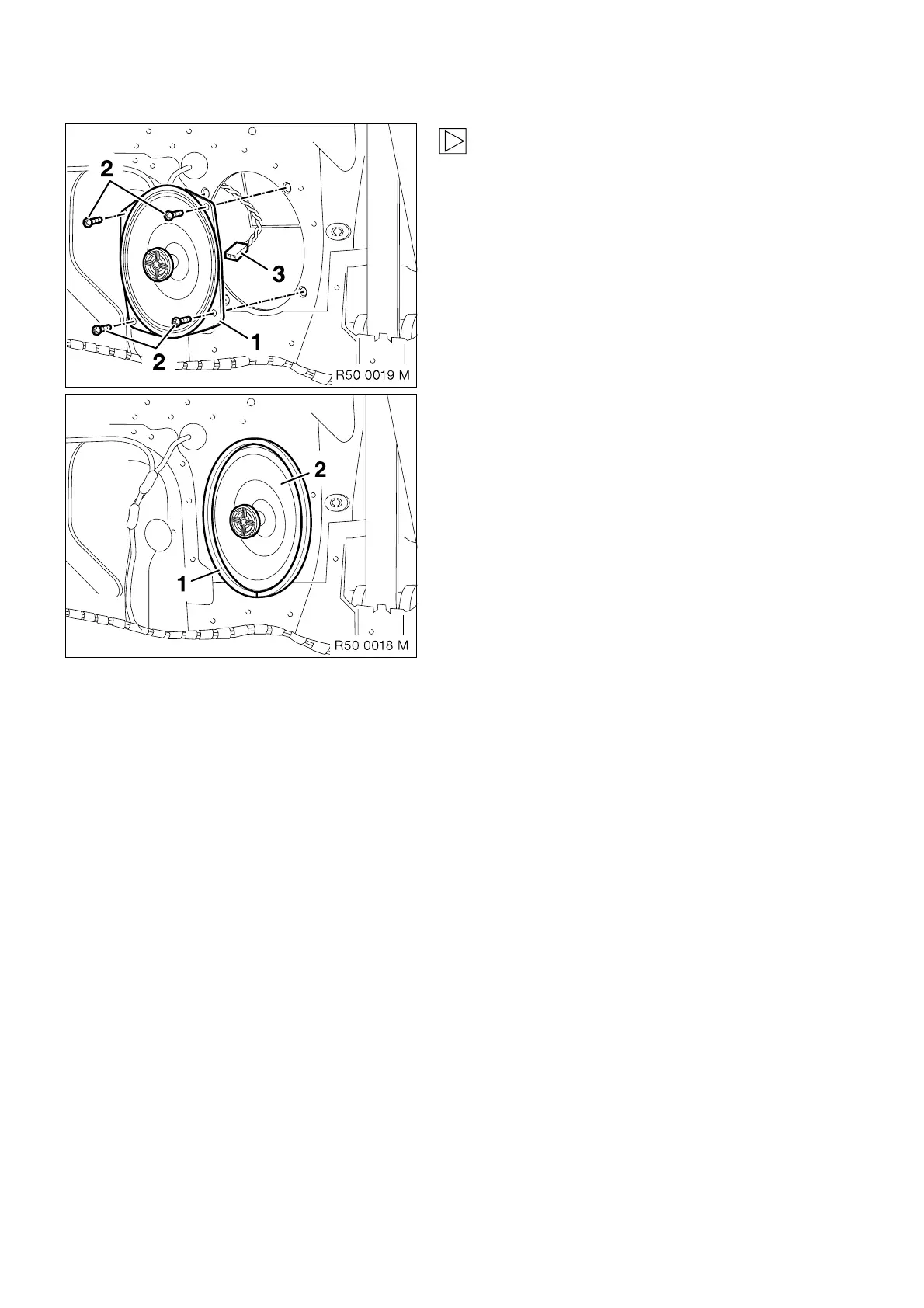

The figure shows the working steps on the
left-hand side of the vehicle. The same
procedure is to be followed analogously on
the right-hand side of the vehicle.
3
Connect plug connector (3) to coax speaker (1).
Firmly tighten coax speaker (1) with existing
screws (2).
0
Adhere foam seal (1) onto coax speaker (2)
as illustrated.
