Retrofit/installation kit No.: 82 83 0 136 491
Installation instruction No.: 01 29 0 139 395 Status: 06.2001
5. Installing amplifier
0
0
0
0
0
Do not soil adhesive surface of adhesive
strip (3) when installing amplifier (1).
3

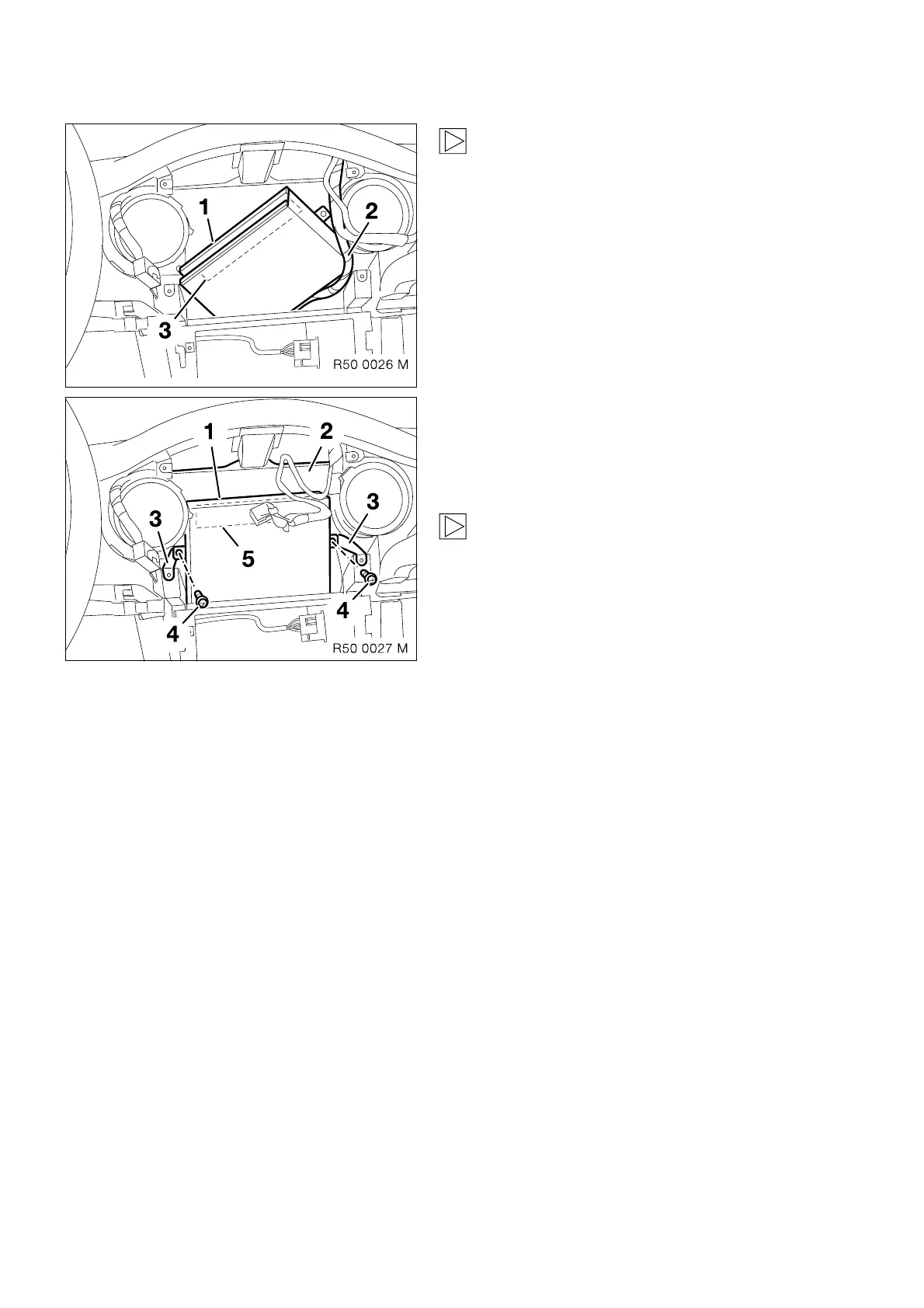

Install amplifier (1) as illustrated, turn into
horizontal position and push upward.
Route wiring harness (2) up to amplifier (1).
0
Firmly secure amplifier (1) and struts (3) with
existing Torx screws (4) on carrier (2).
Press amplifier (1) with adhesive strip (5) onto
carrier (2) and adhere in position.
It must be possible to install and secure the
instrument cluster free of stress.
3
