2 BOARD LAYOUT AND CONNECTIVITY
2.1 BOARD LAYOUT
Figure 1 and Figure 2 show the layout of the UMA-16 v2. Sixteen MEMS microphones are laid out in a Uniform
Rectangular Array (URA) distribution on a 42 mm grid. CAD drawings are available on request.

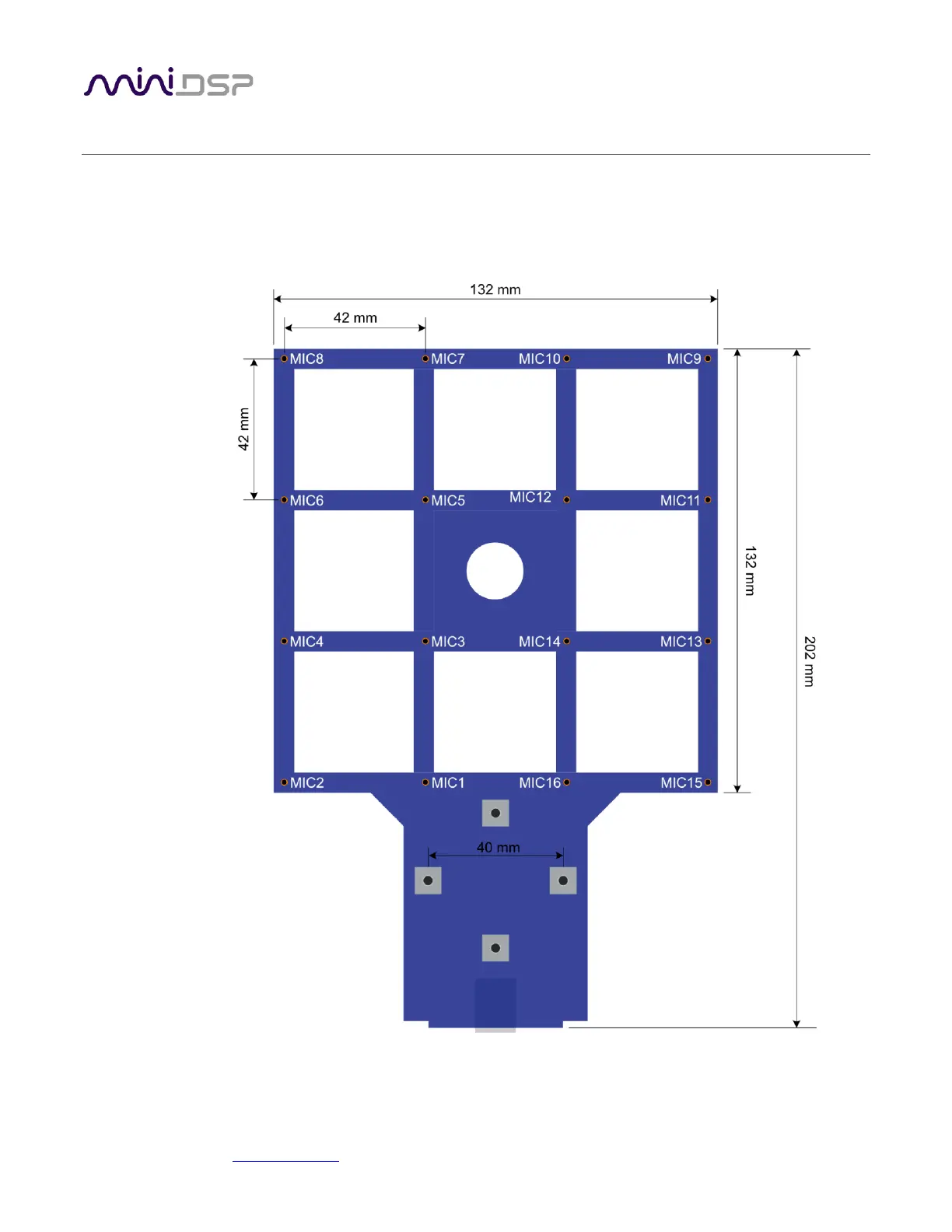

Figure 1. UMA-16 board layout and dimensions - sound source side
