MINIWARE TS80P - Page 5

@ Product Overview

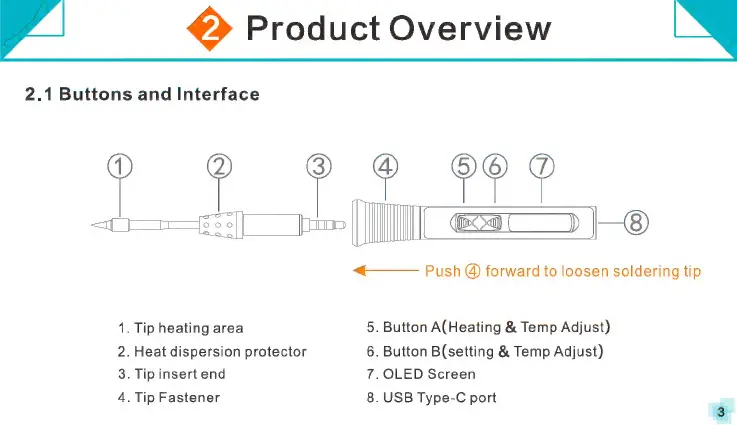

2.1 Buttons and Interface
)
hik
ne
Push ® forward to loosen soldering tip
1. Tip heating area 5. Button A(Heating & Temp Adjust)
2. Heat dispersion protector 6. Button B(setting & Temp Adjust)
3. Tip insert end 7. OLED Screen
4. Tip Fastener 8. USB Type-C port
