MINIWARE TS80P - Page 6

Cn

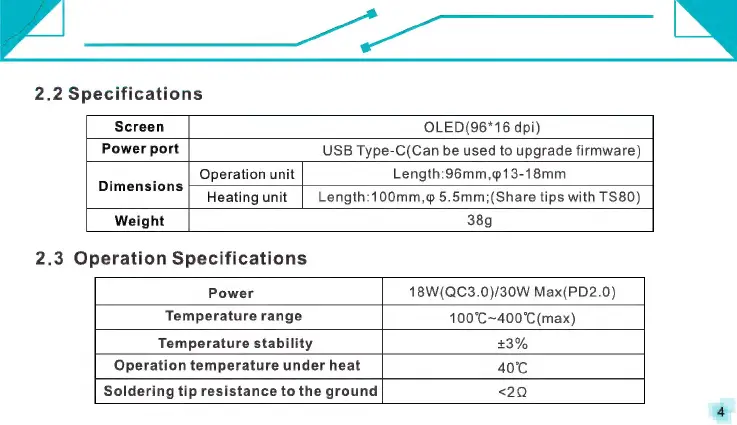

2.2 Specifications
Screen OLED(96*16 dpi)
Power port USB Type-C(Can be used to upgrade firmware)
Operation unit Length:96mm,p13-18mm
Dimensions ni - ni :
Heating unit Length:100mm,p 5.5mm;(Share tips with TS80)
Weight 38g
2.3 Operation Specifications
Power 18W(QC3.0)/30W Max(PD2.0)
Temperature range 100°C-400°C(max)
Temperature stability 23%
Operation temperature under heat 40°C
Soldering tip resistance to the ground <20
