ATTACHING THE FAN BLADES
Step 1. Attach the fan blades to the blade holders
using the screws and fiber washers provided,
tighten screws securely. (Fig. 15)
Step 2. Remove rubber stops from motor. Align
motor holes to blade holders and secure with
screws and lock washers provided, tighten
screws securely. (Fig. 16)

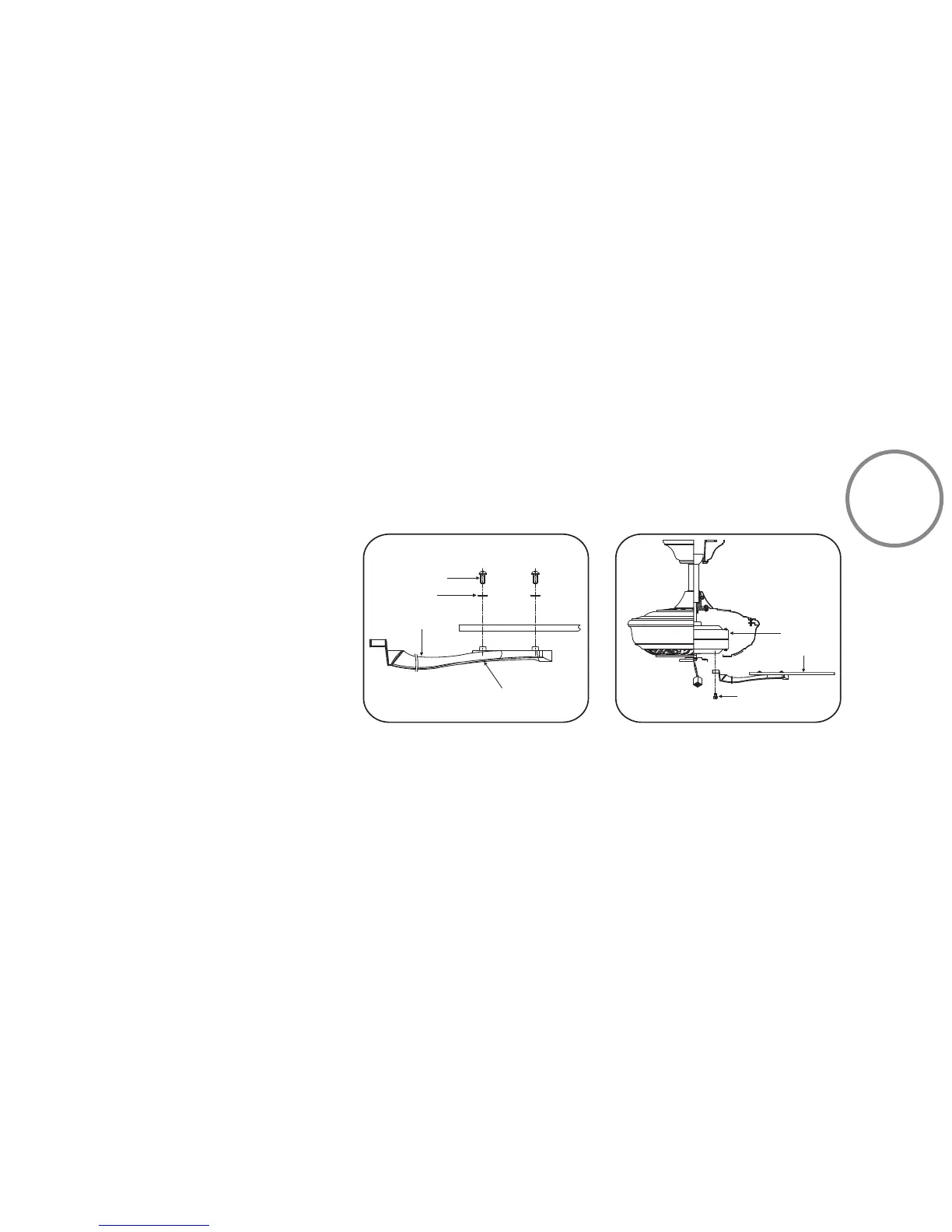

Fig. 15 Fig. 16
FAN BLADE
BLADE HOLDER
SCREWS
FIBER
WASHERS
SCREWS WITH
LOCK WASHERS
FAN MOTOR
FAN BLADE
