Speed settings for warm or cold weather
depend on factors such as room size, ceiling
height and number of fans.
NOTE: wait for fan to stop before changing the
setting of the slide switch.

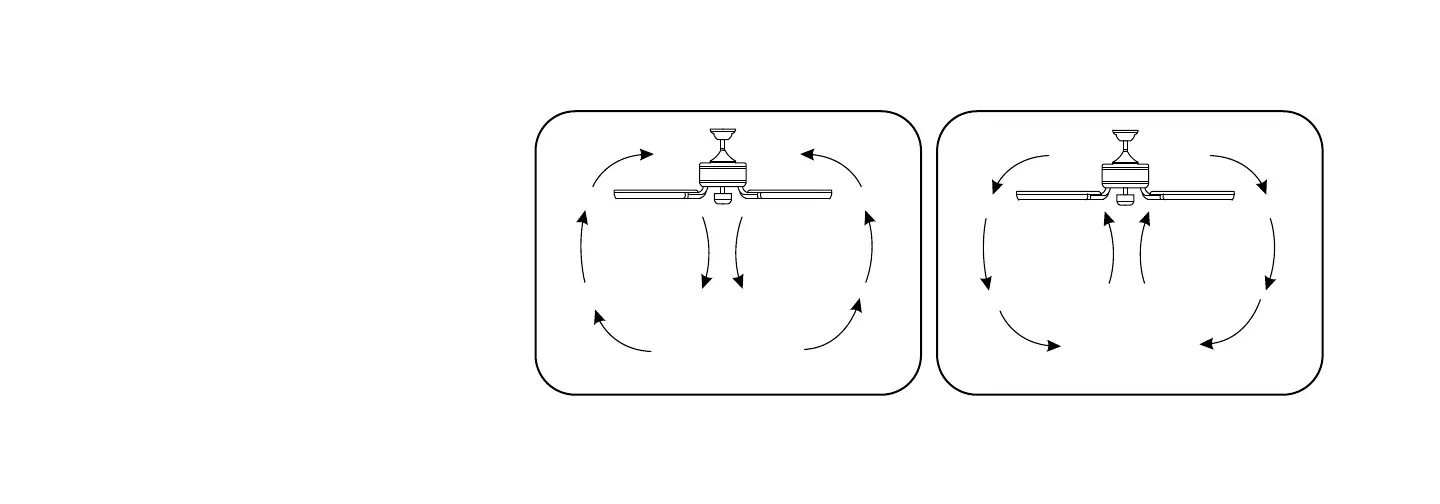

Warm Weather (forward)
A DOWNWARD airflow creates a cooling effect
as shown in Figure 18. This allows you to set
your air conditioner on a warmer setting
without affecting your comfort.
Cool Weather (Reverse)
An UPWARD airflow moves warmer air off the
ceiling area as shown in Figure 19. This allows
you to set your heating unit on a cooler setting
without affecting your comfort.
FIG. 18
FIG. 19
WINTER OPERATION
(
CLOCKWISE DIRECTION)
SUMMER OPERATION
(COUNTERCLOCKWISE DIRECTION)
