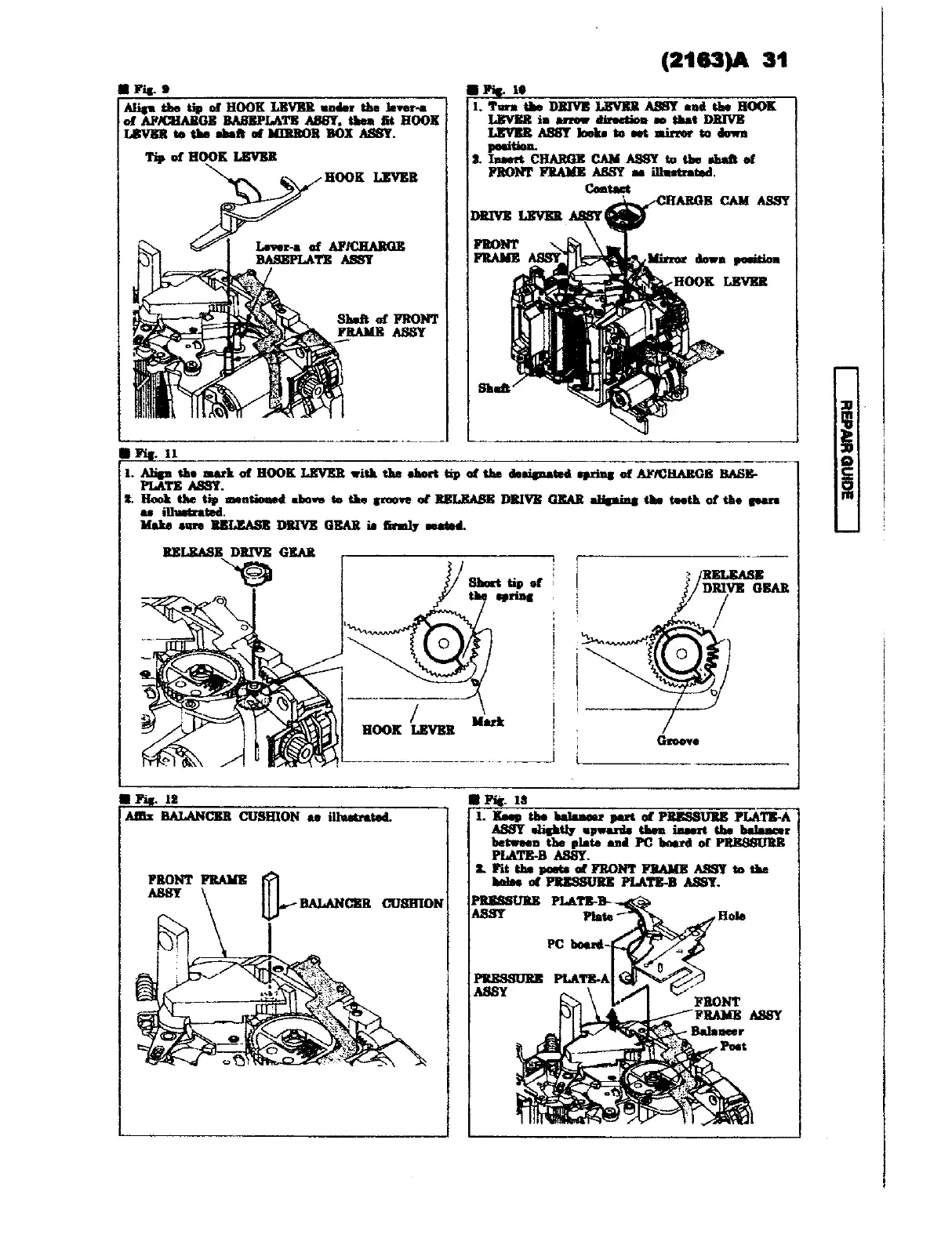

Minolta DYNAX 5 - Page 101

i Fig. 9
Align the tip of HOOK LEVRE under the lever-a
of AF/CHARGE BASEPLATE ABBY, then Et HOOK
LEVER te the shaft of MIRROR BOX ASSY.
Tip of HOOK LEVER
HOOK LEVER
(2163)A 31
Mi Fig. 10
1, Ture the DRIVE LEVER ASSY end the HOOK
LEVER in arrew direction oo that DRIVE
LEVER ASSY locke to set mirror to down
position.
3. Insert CHARGE CAM ASSY to the shaft of
FRONT FRAME ASSY se illustrated.
PLATE ASSY.
as illustrated.
. Align the mark of HOOK LEVER with the short tip of the designated spring of AF/CHAEGE BASE-
2. Hook the tip mentioned above to the groove of RELEASE DRIVE GEAR aligning the teoth of the goara
Make sure RELEASE DRIVE GEAR ia firmly seated.
ZaINn®
divdse
Fig. 12
@ Fig. 18
Affix BALANCER CUSHION as illustrated. 1. Keep the balancer part of PRESSURE PLATE-A
ASSY slightly upwards then insert the balancer
between the plate and PC board of PRESSURE
PLATE-B ASSY.
2. Fit the posts of FRONT FRAME ASSY to the
holes of PRESSURE PLATE-B ASSY.
|
