1.
-_

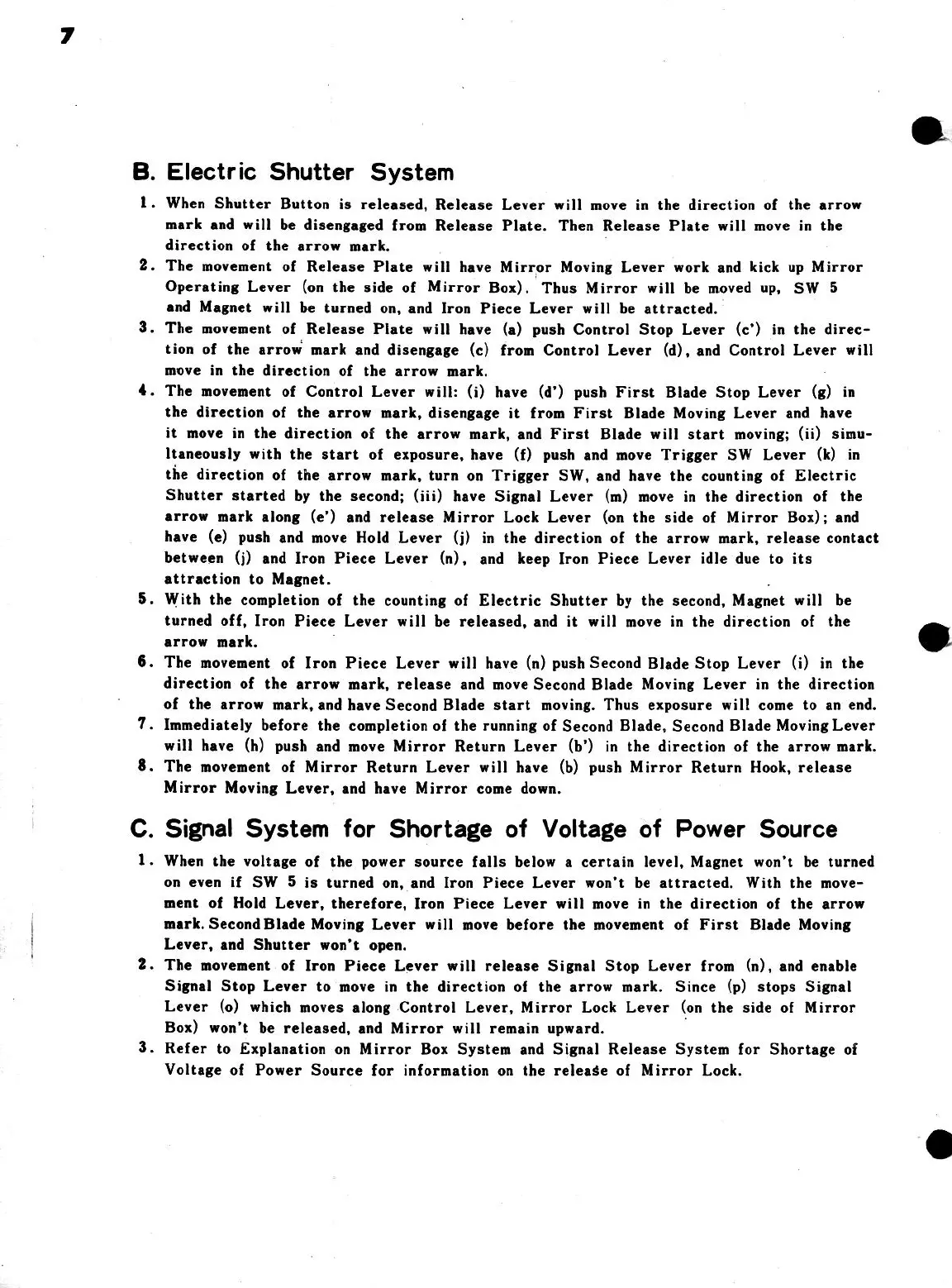

Electric
Shutter
System
When
Shutter
Button
is
released,
Release
Lever
will
move
in
the
direction
of
the
arrow
mark
and
will
be
disengaged
from
Release
Plate.
Then
Release
Plate
will
move
in
the
direction
of
the
arrow
mark.
.
The
movement
of
Release
Plate
will
have
Mirror
Moving
Lever
work
and
kick
up
Mirror
Operating
Lever
(on
the
side
of
Mirror
Box).
‘Thus
Mirror
will
be
moved
up,
SW
5
and
Magnet
will
be
turned
on,
and
Iron
Piece
Lever
will
be
attracted.
-
The
movement
of
Release
Plate
will
have
(a)
push
Control
Stop
Lever
(c’)
in
the
direc-
tion
of
the
arrow
mark
and
disengage
(c)
from
Control
Lever
(d),
and
Control
Lever
will
move
in
the
direction
of
the
arrow
mark.
-
The
movement
of
Control
Lever
will:
(i)
have
(d’)
push
First
Blade
Stop
Lever
(e)
in
the
direction
of
the
arrow
mark,
disengage
it
from
First
Blade
Moving
Lever
and
have
it
move
in
the
direction
of
the
arrow
mark,
and
First
Blade
will
start
moving;
(ii)
simu-
Itaneously
with
the
start
of
exposure,
have
(f)
push
and
move
Trigger
SW
Lever
(k)
in
the
direction
of
the
arrow
mark,
turn
on
Trigger
SW,
and
have
the
counting
of
Electric
Shutter
started
by
the
second;
(iii)
have
Signal
Lever
(m)
move
in
the
direction
of
the
arrow
mark
along
(e’)
and
release
Mirror
Lock
Lever
(on
the
side
of
Mirror
Box);
and
have
(e)
push
and
move
Hold
Lever
(j) in
the
direction
of
the
arrow
mark,
release
contact
between
(j)
and
Iron
Piece
Lever
(n),
and
keep
Iron
Piece
Lever
idle
due
to its
attraction
to
Magnet.
.
With
the
completion
of
the
counting
of
Electric
Shutter
by
the
second,
Magnet
will
be
turned
off,
Iron
Piece
Lever
will
be
released,
and
it
will
move
in
the
direction
of
the
arrow
mark.
-
The
movement
of
Iron
Piece
Lever
will
have
(n)
push
Second
Blade
Stop
Lever
(i)
in
the
direction
of
the
arrow
mark,
release
and
move
Second
Blade
Moving
Lever
in
the
direction
of
the
arrow
mark,
and
have
Second
Blade
start
moving.
Thus
exposure
will
come
to
an
end.
-
Immediately
before
the
completion
of
the
running
of
Second
Blade,
Second
Blade
Moving
Lever
will
have
(h)
push
and
move
Mirror
Return
Lever
(b’)
in
the
direction
of
the
arrow
mark.
-
The
movement
of
Mirror
Return
Lever
will
have
(b)
push
Mirror
Return
Hook,
release
Mirror Moving
Lever,
and
have
Mirror
come
down.
Signal
System
for
Shortage
of
Voltage
of
Power
Source
-
When
the
voltage
of
the
power
source
falls
below
a
certain
level,
Magnet
won't
be
turned
on
even
if
SW
5
is
turned
on,
and
Iron
Piece
Lever
won't
be
attracted.
With
the
move-
ment
of
Hold
Lever,
therefore,
Iron
Piece
Lever
will
move
in
the
direction
of
the
arrow
mark.
Second
Blade
Moving
Lever
will
move
before
the
movement
of
First
Blade
Moving
Lever,
and
Shutter
won't
open.
-
The
movement
of
Iron
Piece
Lever
will
release
Signal
Stop
Lever
from
(n),
and
enable
Signal
Stop
Lever
to
move
in
the
direction
of
the
arrow
mark.
Since
(p)
stops
Signal
Lever
(0)
which
moves
along
Control
Lever,
Mirror
Lock
Lever
(on
the
side
of
Mirror
Box)
won’t
be
released,
and
Mirror
will
remain
upward.
-
Refer
to
Explanation
on
Mirror
Box
System
and
Signal
Release
System
for
Shortage
of
Voltage
of
Power
Source
for
information
on
the
releage
of
Mirror
Lock.
