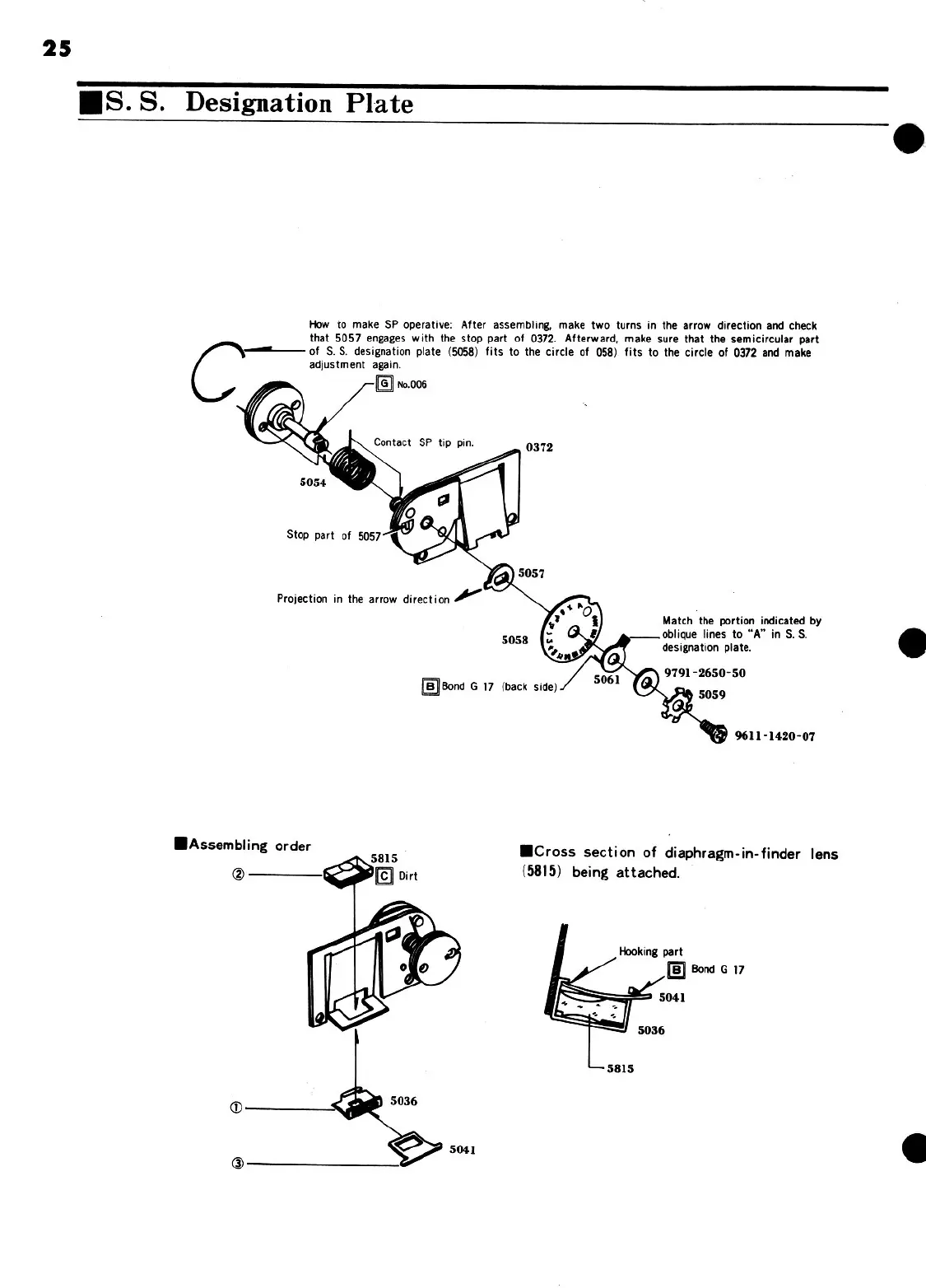

Minolta XE - S.S. Designation Plate; Assembling order; Cross section of diaphragm-in-finder lens (5815) being attached

25
MS.S. Designation Plate
How to make SP operative: After assembling, make two turns in the arrow direction and check
that 5057 engages with the stop part of 0372. Afterward, make sure that the semicircular part
of S.S. designation plate (5058) fits to the circle of 058) fits to the circle of 0372 and make
adjustment again.
No.006
Contact SP tip pin. 0372
Projection in the arrow direction
Match the portion indicated by
oblique lines to “A” in 5. 5.
shes designation plate.
[B) bond G 17 (back side)
Assembling
order
MiCross
section
of
diaphragm-in-finder
lens
®
(5815)
being
attached.
Hooking
part
Bond
G
17
cS
5041
5815.
®
5036
5041
