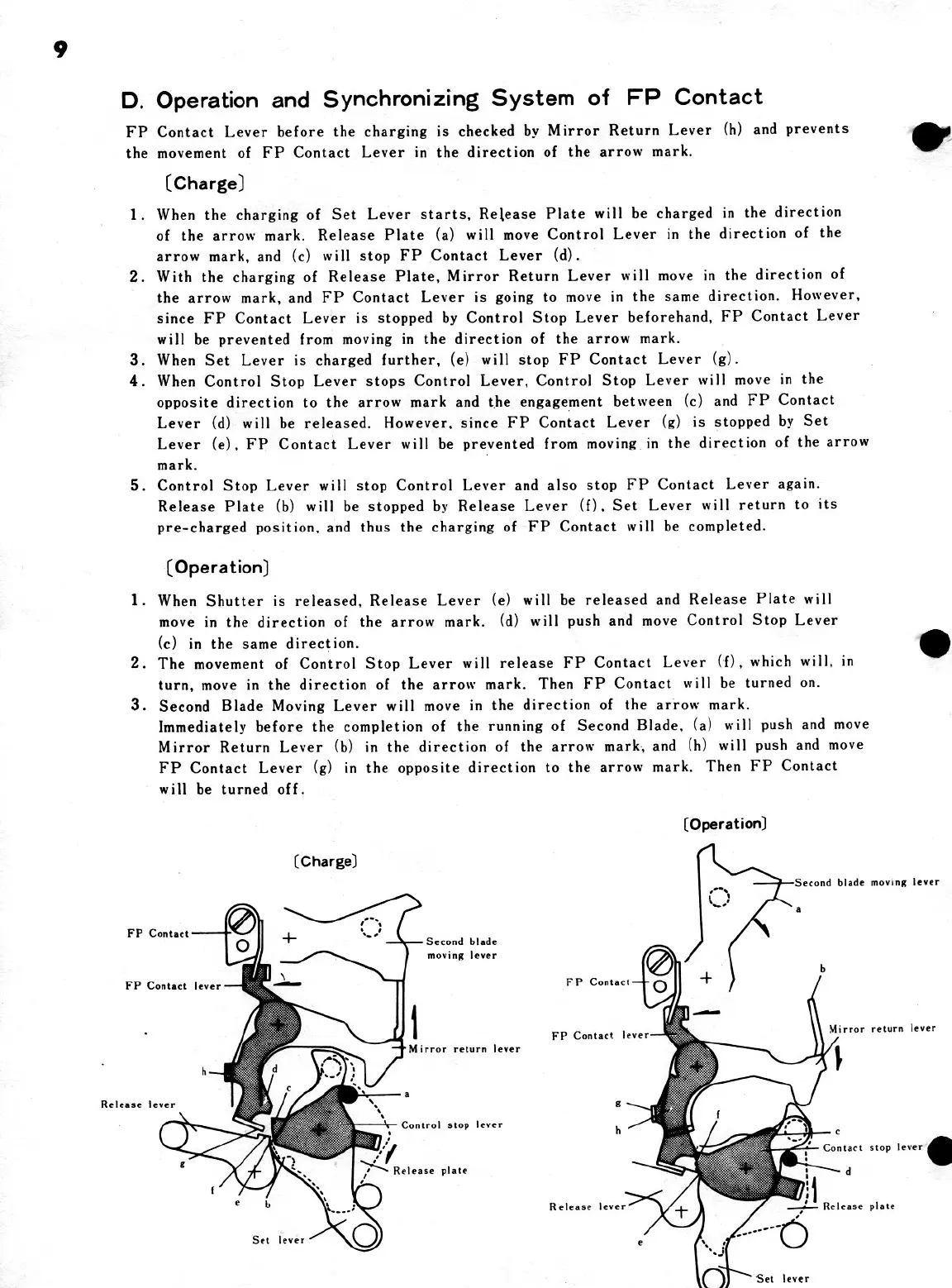

Minolta XE - D. Operation and Synchronizing System of FP Contact

D.
Operation
and
Synchronizing
System
of
FP
Contact
FP
Contact
Lever
before
the
charging
is
checked
by
Mirror
Return
Lever
(h)
and
prevents
a
the
movement
of
FP
Contact
Lever
in
the
direction
of
the
arrow
mark.
(Charge)
1. When the charging of Set Lever starts, Release Plate will be charged in the direction
of the arrow mark. Release Plate (a) will move Control Lever in the direction of the
arrow mark, and (c) will stop FP Contact Lever (d).
2. With the charging of Release Plate, Mirror Return Lever will move in the direction of
the
arrow
mark,
and
FP
Contact
Lever
is
going
to
move
in
the
same
direction.
However,
since FP Contact Lever is stopped by Control Stop Lever beforehand, FP Contact Lever
will be prevented from moving in the direction of the arrow mark.
3. When Set Lever is charged further, (e) will stop FP Contact Lever (g).
4. When Control Stop Lever stops Control Lever, Control] Stop Lever will move in the
opposite direction to the arrow mark and the engagement between (c) and FP Contact
Lever (d) will be released. However, since FP Contact Lever (g) is stopped by Set
Lever (e), FP Contact Lever will be prevented from moving in the direction of the arrow
mark, ,
5. Control Stop Lever will stop Control Lever and also stop FP Contact Lever again.
Release Plate (b) will be stopped by Release Lever (f), Set Lever will return to its
pre-charged position, and thus the charging of FP Contact will be completed.
(Operation)
1. When Shutter is released, Release Lever (e) will be released and Release Plate will
move in the direction of the arrow mark. (d) will push and move Control Stop Lever
(c)
in
the
same
direction.
@
2. The movement of Control Stop Lever will release FP Contact Lever (f), which will, in
turn, move in the direction of the arrow mark. Then FP Contact will be turned on.
3. Second Blade Moving Lever will move in the direction of the arrow mark.
Immediately before the completion of the running of Second Blade, (a) will push and move
Mirror Return Lever (b) in the direction of the arrow mark, and (h) will push and move
FP Contact Lever (g) in the opposite direction to the arrow mark. Then FP Contact
will be turned off.
(Operation)
(Charge)
Second blade moving lever
FP Contact
Second blade
moving lever
FP
Contact
lever
FP
Contact
FP
Contact
lever
Mirror
return
lever
Mirror return lever
a
Release lever
Release lever
lever
Set lever
