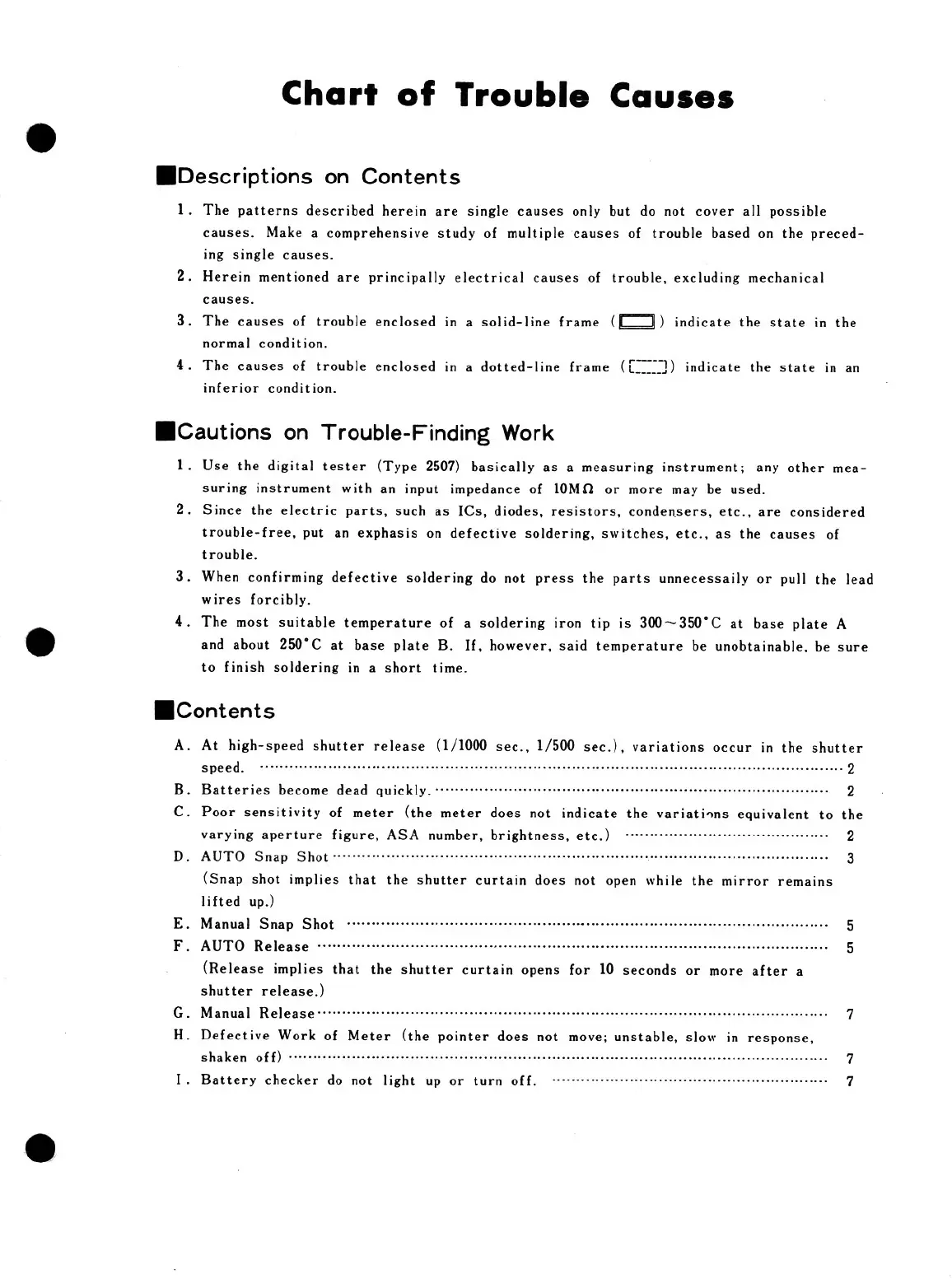

Minolta XE - INSPECTION STANDARDS; Cautions on Trouble-Finding Work; Contents; A. At high-speed shutter release (1;1000 sec., 1;500 sec.), variations occur in the shutter speed

Chart
of
Trouble
Causes
MDescriptions on Contents
1:
The patterns described herein are single causes only but do not cover all possible
causes. Make a comprehensive study of multiple causes of trouble based on the preced-
ing single causes.
Herein mentioned are principally electrical causes of trouble, excluding mechanical
causes.
- The causes of trouble enclosed in a solid-line frame ([-__]) indicate the state in the
normal condition.
. The causes of trouble enclosed in a dotted-line frame ({__]) indicate the state in an
-----4
inferior condition.
MiCautions on Trouble-Finding Work
1.
Use the digital tester (Type 2507) basically as a measuring instrument; any other mea-
suring instrument with an input impedance of 10MQ or more may be used.
Since the electric parts, such as ICs, diodes, resistors, condensers, etc., are considered
trouble-free, put an exphasis on defective soldering, switches, etc., as the causes of
trouble.
. When confirming defective soldering do not press the parts unnecessaily or pull the lead
wires forcibly.
The most suitable temperature of a soldering iron tip is 300~350°C at base plate A
and about 250°C at base plate B. If, however, said temperature be unobtainable, be sure
to finish soldering in a short time.
HContents
A. At high-speed shutter release (1/1000 sec., 1/500 sec.), variations occur in the shutter
Speedy BM irocecrerenermsrceeeeennneaanerenneceeneeanan sreanuinraneaunnn manana senenneasannaae nenagnarseansnenmecnece mnie 2
B. Batteries become dead quickly. -s:r-sttcttrttereesteeseeeeer eset crease eeenssetssseessereeeeteesteeteeees 9
C.
Poor
sensitivity
of
meter
(the
meter
does
not
indicate
the
variations
equivalent
to
the
varying aperture figure, ASA number, brightness, etc.) crrrvtrtstrertttesestetseeteseeesenenennes 2
De AUTO Snap: Shotesn ccc rere
(Snap shot implies that the shutter curtain does not open while the mirror remains
lifted up.)
E. Manual Snap Shot ccccsscccessscretssseseesssreessscerennenestsscseneacessteesesesestensseestecerstresssssseere 5
F. AUTO Release ee eee eee eee eee eee ee ee eee ee ee ee eee ee ee ee ee ene
(Release implies that the shutter curtain opens for 10 seconds or more after a
shutter release.)
G. Manual Release tttttttrtsset tee se cere ce eee e cee ne ner ecea eee se eee eee anes eee eens ea ee nnn eee SEES SSE EE SEER ee nee eatas 7
H. Defective Work of Meter (the pointer does not move; unstable, slow in response,
shaken off) Tht ee ee eee aee es enenerneneneaeateneenenenenaeasarenessenensesectacsaerarstsserseseaeaesesessssssenenenssreenen OF
I. Battery checker do not light up or turn off. eC e eee Te Serer eT eT ee ee ee eee er ee re rrr 7
