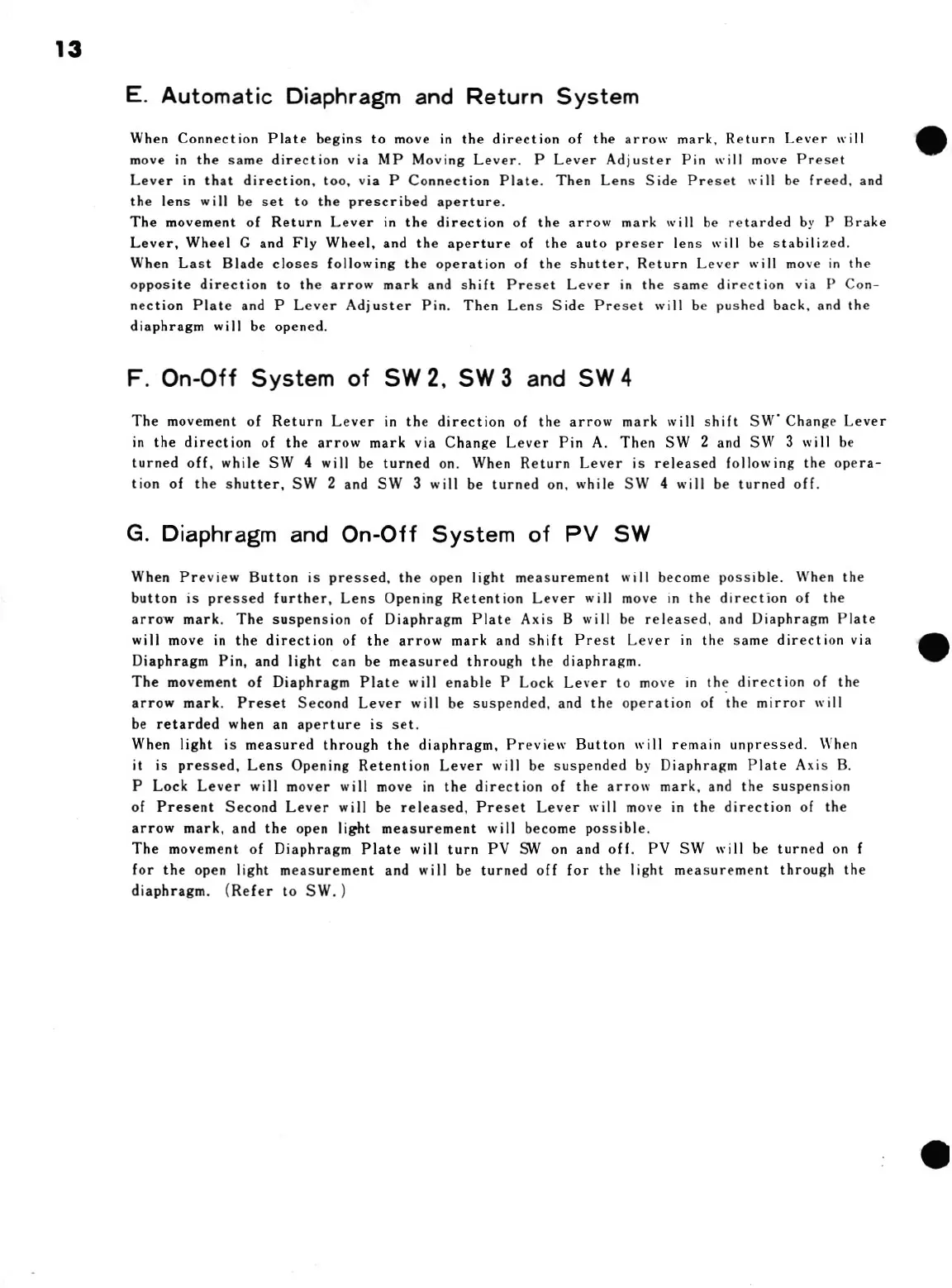

E. Automatic Diaphragm and Return System
When Connection Plate begins to move in the direction of the arrow mark, Return Lever will
move in the same direction via MP Moving Lever. P Lever Adjuster Pin will move Preset
Lever in that direction, too, via P Connection Plate. Then Lens Side Preset will be freed, and
the lens will be set to the prescribed aperture.
The movement of Return Lever in the direction of the arrow mark will be retarded by P Brake
Lever, Wheel G and Fly Wheel, and the aperture of the auto preser lens will be stabilized.
When Last Blade closes following the operation of the shutter, Return Lever will move in the
opposite direction to the arrow mark and shift Preset Lever in the same direction via P Con-
nection Plate and P Lever Adjuster Pin. Then Lens Side Preset will be pushed back, and the
diaphragm will be opened.
F. On-Off System of SW2, SW3 and SW4
The movement of Return Lever in the direction of the arrow mark will shift SW’ Change Lever
in the direction of the arrow mark via Change Lever Pin A. Then SW 2 and SW 3 will be
turned off, while SW 4 will be turned on. When Return Lever is released following the opera-
tion of the shutter, SW 2 and SW 3 will be turned on, while SW 4 will be turned off.
G. Diaphragm and On-Off System of PV SW
When Preview Button is pressed, the open light measurement will become possible. When the
button is pressed further, Lens Opening Retention Lever will move in the direction of the
arrow mark. The suspension of Diaphragm Plate Axis B will be released, and Diaphragm Plate
will move in the direction of the arrow mark and shift Prest Lever in the same direction via
Diaphragm Pin, and light can be measured through the diaphragm.
The movement of Diaphragm Plate will enable P Lock Lever to move in the direction of the
arrow mark. Preset Second Lever will be suspended, and the operation of the mirror will
be retarded when an aperture is set.
When light is measured through the diaphragm, Preview Button will remain unpressed. When
it is pressed, Lens Opening Retention Lever will be suspended by Diaphragm Plate Axis B.
P Lock Lever will mover will move in the direction of the arrow mark, and the suspension
of Present Second Lever will be released, Preset Lever will move in the direction of the
arrow mark, and the open light measurement will become possible.
The movement of Diaphragm Plate will turn PV SW on and off. PV SW will be turned on f
for the open light measurement and will be turned off for the light measurement through the
diaphragm. (Refer to SW.)
