Minolta XE - 8. Exposure Interlocking System; 9. Optical Layout

15

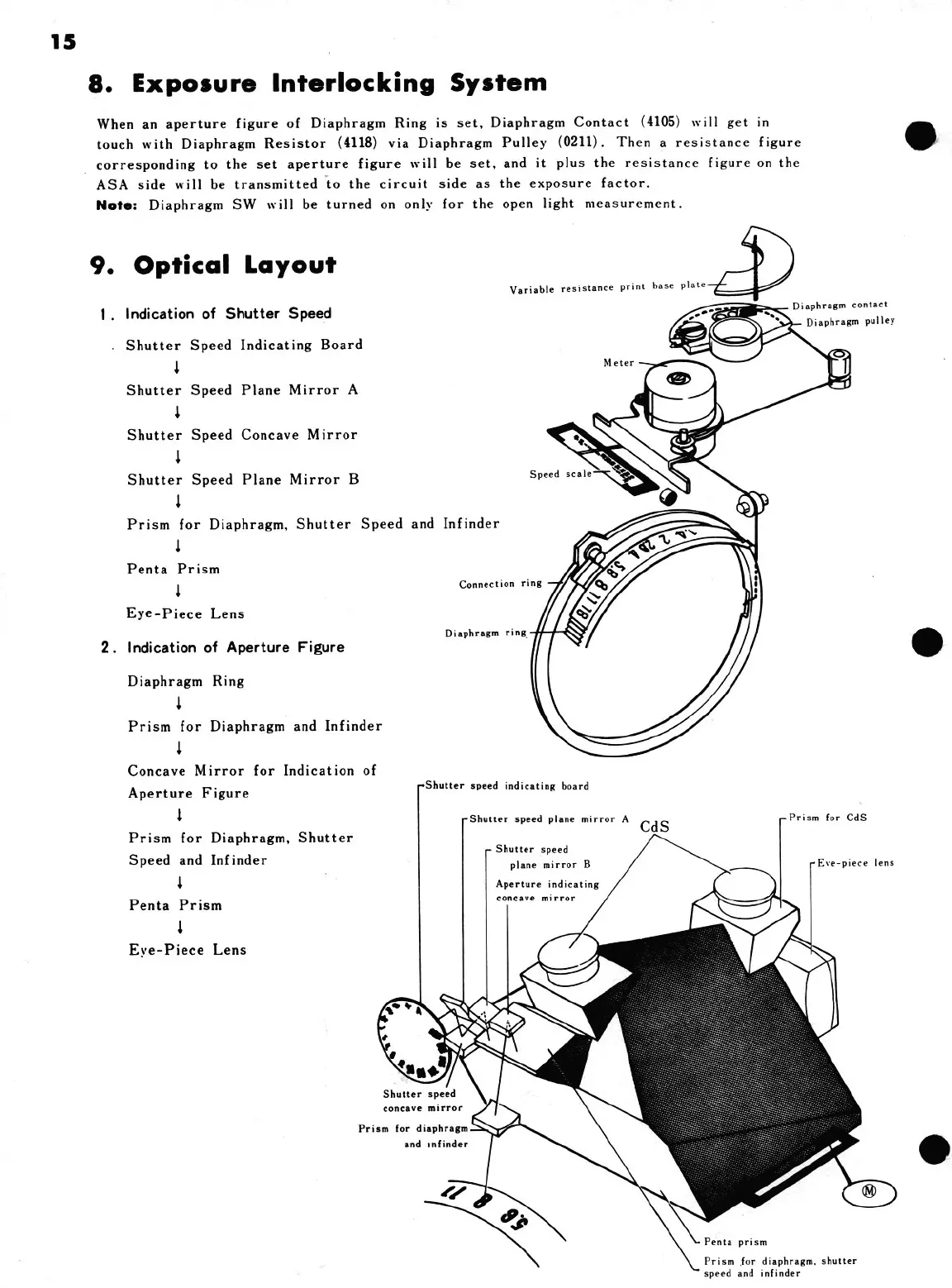

8. Exposure Interlocking System
When an aperture figure of Diaphragm Ring is set, Diaphragm Contact (4105) will get in
touch with Diaphragm Resistor (4118) via Diaphragm Pulley (0211). Then a resistance figure
_ corresponding to the set aperture figure will be set, and it plus the resistance figure on the
ASA side will be transmitted to the circuit side as the exposure factor.
Note: Diaphragm SW will be turned on only for the open light measurement.
9. Optical Layout
Variable
resistance
print
hase
plate
Diaphragm
contact
Diaphragm pulley
1. Indication of Shutter Speed
Shutter Speed Indicating Board
4
Shutter Speed Plane Mirror A
4
Shutter Speed Concave Mirror
4
Shutter Speed Plane Mirror B
|
Prism for Diaphragm, Shutter Speed and Infinder
4
i
Penta
Prism
4
it
Connection
ring
Uj
Eye-Piece
Lens
Diaphragm ring. S
2. Indication of Aperture Figure
Diaphragm Ring
4
Prism for Diaphragm and Infinder
|
Concave Mirror for Indication of
4 -Shutt indicati
Aperture Figure utter speed indicating board
4
-Shutter
speed
plane
mirror
A
Prism
for
CdS
Prism for Diaphragm, Shutter
CdS
- Shutter speed
Speed and Infinder plane mirror B Eve-piece lens
J
Aperture
indicating
. concave mirror
Penta Prism mirre
4
Eve-Piece Lens
Shutter speed
concave mirror
Penta prism
Prism for diaphragm, shutter
speed and infinder
