Minolta XE - Film Advancing System; (Operating Order)

(Operating Order)

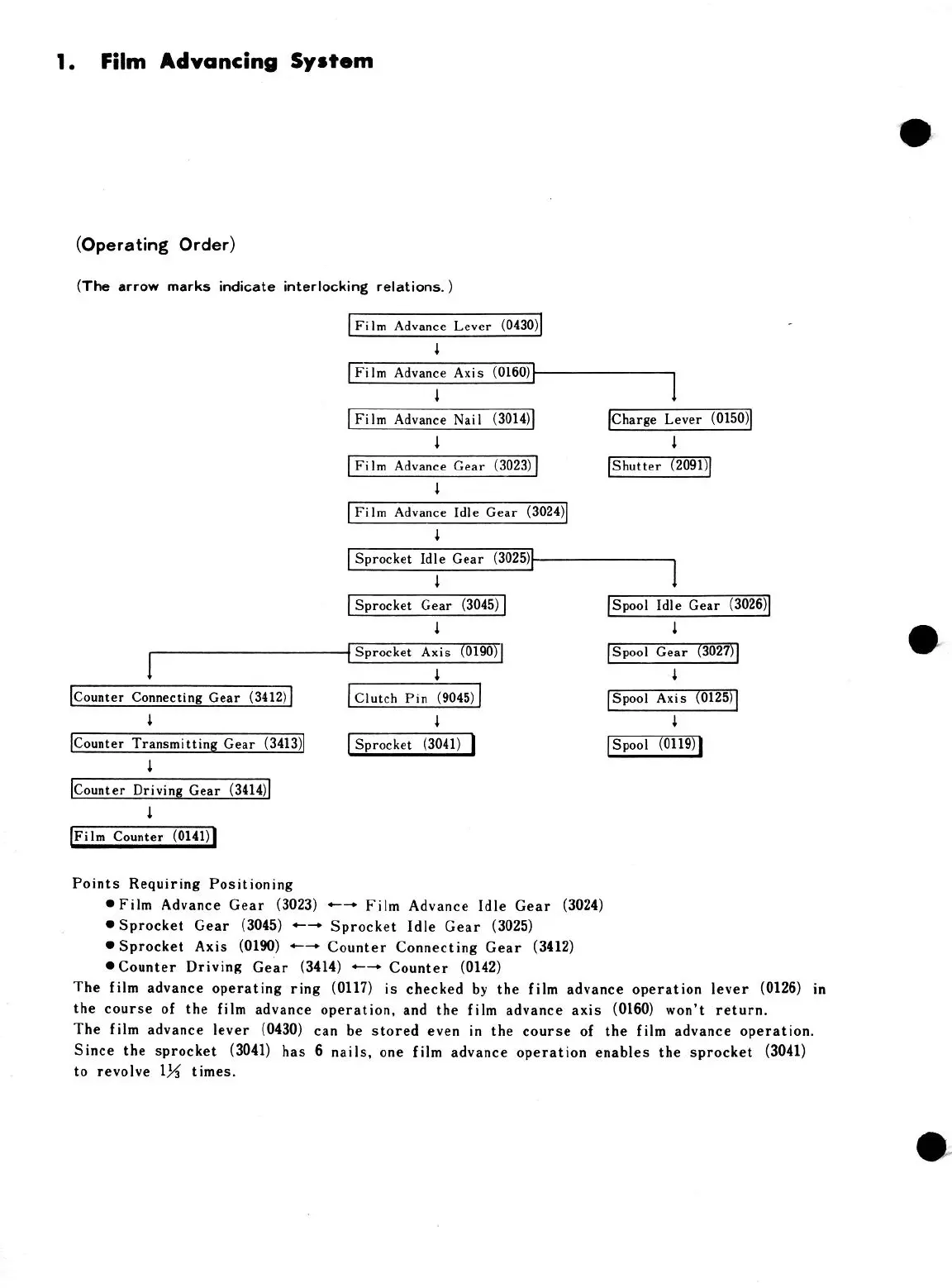

Film Advancing System
(The arrow marks indicate interlocking relations. )
[ Film Advance Lever (0430)|
J
| Film Advance Axis (0160)}
4
[Film Advance Nail (3014)]
J
| Film Advance Gear (3023)
4
| Film Advance Idle Gear (3024)|
|
|
|Charge Lever (0150)|
t
Shutter (2091)
| Sprocket Idle Gear (3025)}
{
| Sprocket Gear (3045) |
J
|
[Counter Connecting Gear (3412) |
— Sprocket Axis (0190)|
4
[Clutch Pin (9045) |
J
[Sprocket (3041) ]
4
[Counter Transmitting Gear (3413)}
4
[Counter Driving Gear (3414)]
4
[Film Counter (0141)]
Points Requiring Positioning
®Film Advance Gear (3023) +-— Film Advance Idle Gear (3024)
@Sprocket Gear (3045) + Sprocket Idle Gear (3025)
@Sprocket Axis (0190) ~— Counter Connecting Gear (3412)
®Counter Driving Gear (3414) ~— Counter (0142)
The film advance operating ring (0117) is checked by the film advance operation lever (0126) in
the course of the film advance operation, and the film advance axis (0160) won’t return.
The film advance lever (0430) can be stored even in the course of the film advance operation.
Since the sprocket (3041) has 6 nails, one film advance operation enables the sprocket (3041)
to revolve 14 times.
|
|Spool Idle Gear (3026)|
4
4
[Spool Axis (0125)]
4
Spool (0119
