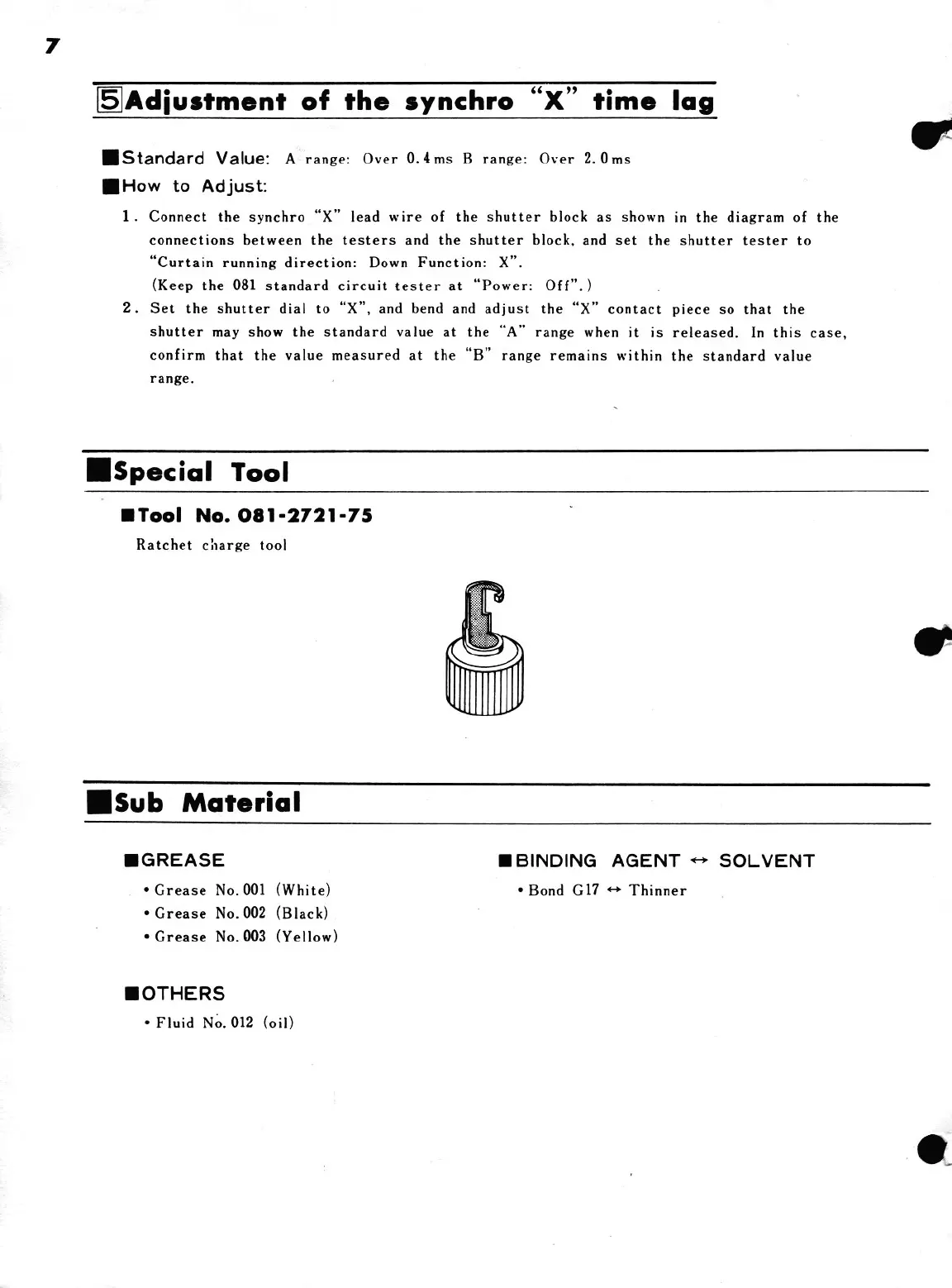

Minolta XE - [5]Adjustment of the synchro “X” time lag; Special Tool

(SJAdjustment of the synchro “X” time lag
WStandard Value: A range: Over 0.4ms B range: Over 2.0ms
BiHow to Adjust:
1.
Connect the synchro “X” lead wire of the shutter block as shown in the diagram of the
connections between the testers and the shutter block, and set the shutter tester to
“Curtain running direction: Down Function: X”.
(Keep the 081 standard circuit tester at “Power: Off”. )
. Set the shutter dial to “X”, and bend and adjust the “X” contact piece so that the
shutter may show the standard value at the “A” range when it is released. In this case,
confirm that the value measured at the “B” range remains within the standard value
range,
MSpecial Tool
HTool No. 081-2721-75
Ratchet charge tool
Wisub Material
BGREASE BBINDING AGENT - SOLVENT
*Grease No. 001 (White) * Bond G17 < Thinner
* Grease No. 002 (Black)
*Grease No. 003 (Yellow)
BOTHERS
* Fluid No. 012 (oil)
