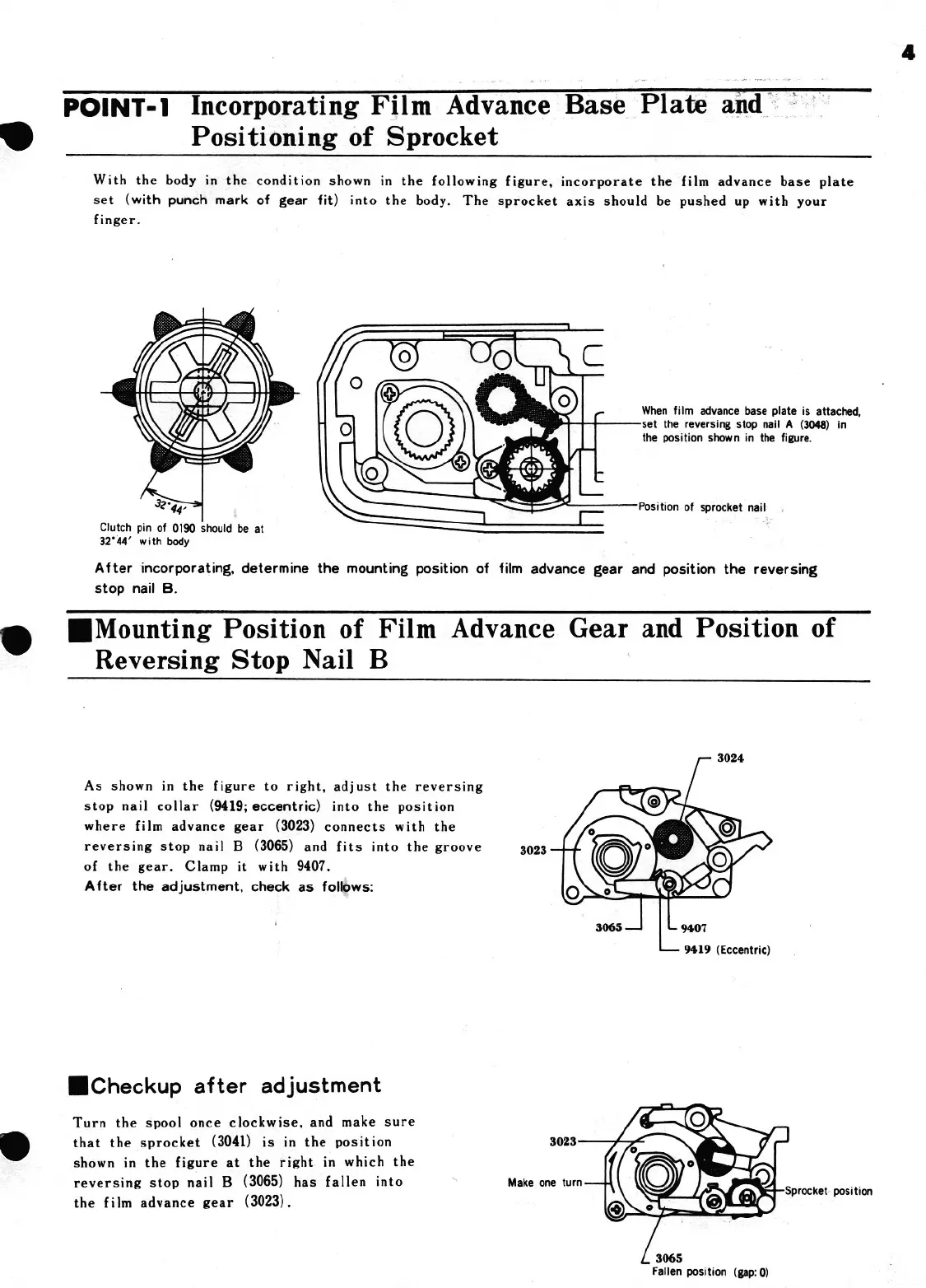

POINT-1
Incorporating
Film
Advance
Base
Plate
and
—
Positioning
of
Sprocket
With the body in the condition shown in the following figure, incorporate the film advance base plate
set (with punch mark of gear fit) into the body. The sprocket axis should be pushed up with your
finger.
When film advance base plate is attached,
set the reversing stop nail A (3048) in
the position shown in the figure.
Position of sprocket nail
Clutch pin of 0190 should be at
32°44" with body
After incorporating, determine the mounting position of film advance gear and position the reversing
stop nail B.
Wi Mounting Position of Film Advance Gear and Position of
Reversing Stop Nail B
As shown in the figure to right, adjust the reversing
stop nail collar (9419; eccentric) into the position
where film advance gear (3023) connects with the
reversing stop nail B (3065) and fits into the groove
of the gear. Clamp it with 9407.
After the adjustment, check as follows:
9419 (Eccentric)
WiCheckup after adjustment
Turn the spool once clockwise, and make sure
that the sprocket (3041) is in the position
shown in the figure at the right in which the
reversing stop nail B (3065) has fallen into
the film advance gear (3023).
Sprocket. position
— Or
3065
Fallen position (gap: 0)
