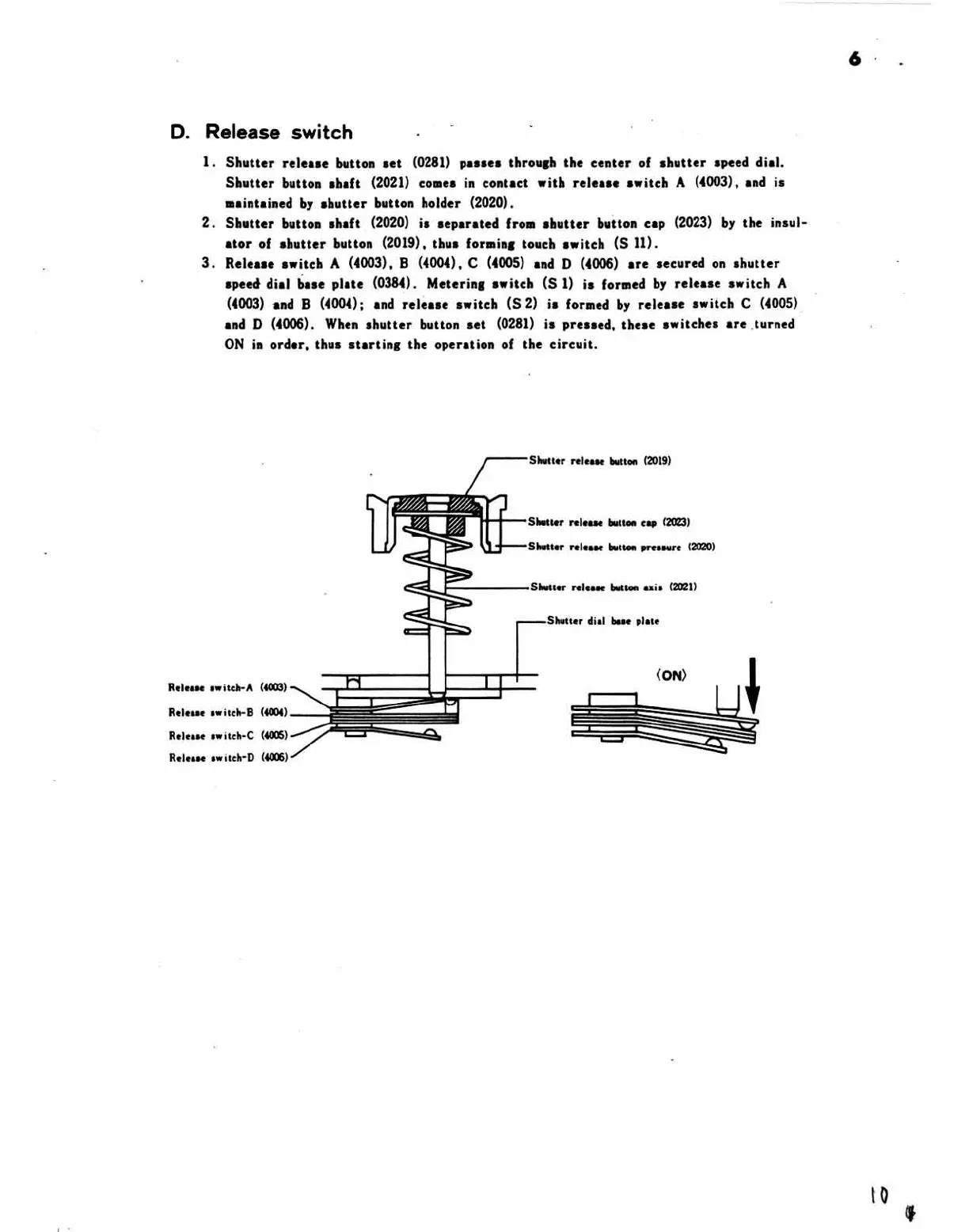

D.
Release
switch
1.
Shutter
release
button
set
(0281)
passes
through
the
center
of
shutter
speed
dial.
Shutter
button
shaft
(2021)
comes
in
contact
with
release
switch
A
(4003),
and
is
maintained
by
shutter
button holder
(2020).
2.
Shutter
button
shaft
(2020)
is
separated
from
shutter
button
cap
(2023)
by
the
insul-
ator
of
shutter
button
(2019),
thus
forming
touch
switch
(S
11).
3.
Release
switch
A
(4003),
B
(4004),
C
(4005)
and
D
(4006)
are
secured
on
shutter
speed
dial
base
plate
(0384).
Metering
switch
(S
1)
is
formed
by
release
switch
A
(4003)
and
B
(4004);
and
release
switch
(S
2)
is
formed
by
release
switch
C
(4005)
and
D
(4006).
When
shutter
button
set
(0281)
is
pressed,
these
switches
are
turned
ON
in
order,
thus
starting
the
operation
of
the
circuit.
Shutter
release
button
(2019)
-——
Shatter
release
button
cap
(2023)
-——
Shutter
release
button
pressure
(2020)
Shutter
release
button
axis (2021)
——Shutter
dial
base
plate
==
5;
(ON)
Release
switch-A
(4003)
Lt
|
Release
switch-B
(4004)
Release
switch-C
(4005)
Release
switch-D
(4006)
1Q
