Minolta XG7 - Page 14

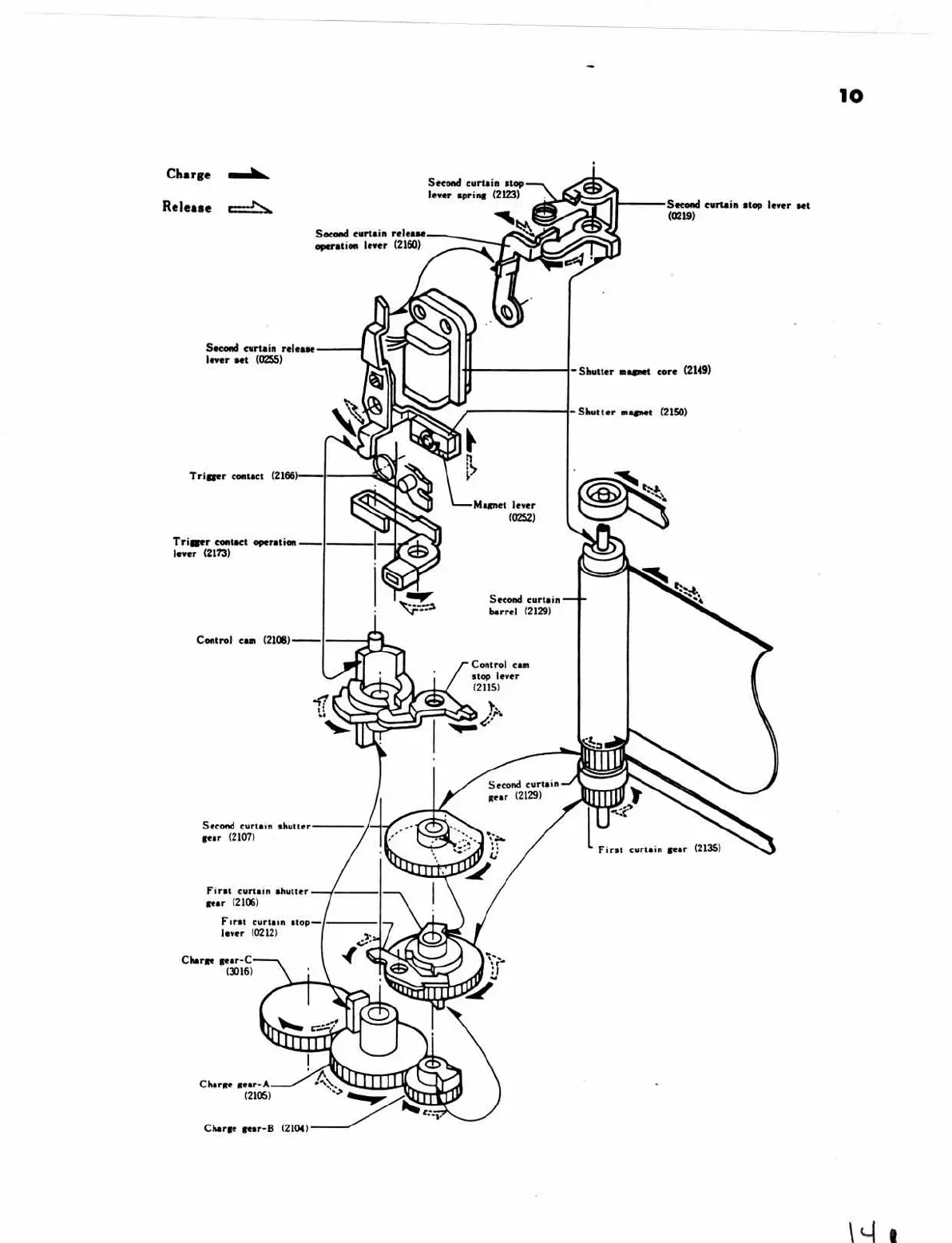

coal,
=o
Charge
Release
Socond curtain release
operation lever (2160)
Trigger (2166):
Trigger operation
lever (2173)
Control cam (2108) ——
Second curtain shutter
gear (2107)
First curtain ahutt
gear (2106)
First curtain stop—
lever (0212)
Charge gear-C
(3016)
Charge gear-B (2104)
Second curtain stop
lever spring (2123)
Second curtain —>-
barrel (2129)
Control cam
stop lever
(2115)
Second curtain
pear (2129)
Second curtain stop lever set
(0219)
Shutter magnet core (2149)
- Shutter magnet (2150)
“ First curtain gear (2135)
10
