Minolta XG7 User Manual

1.

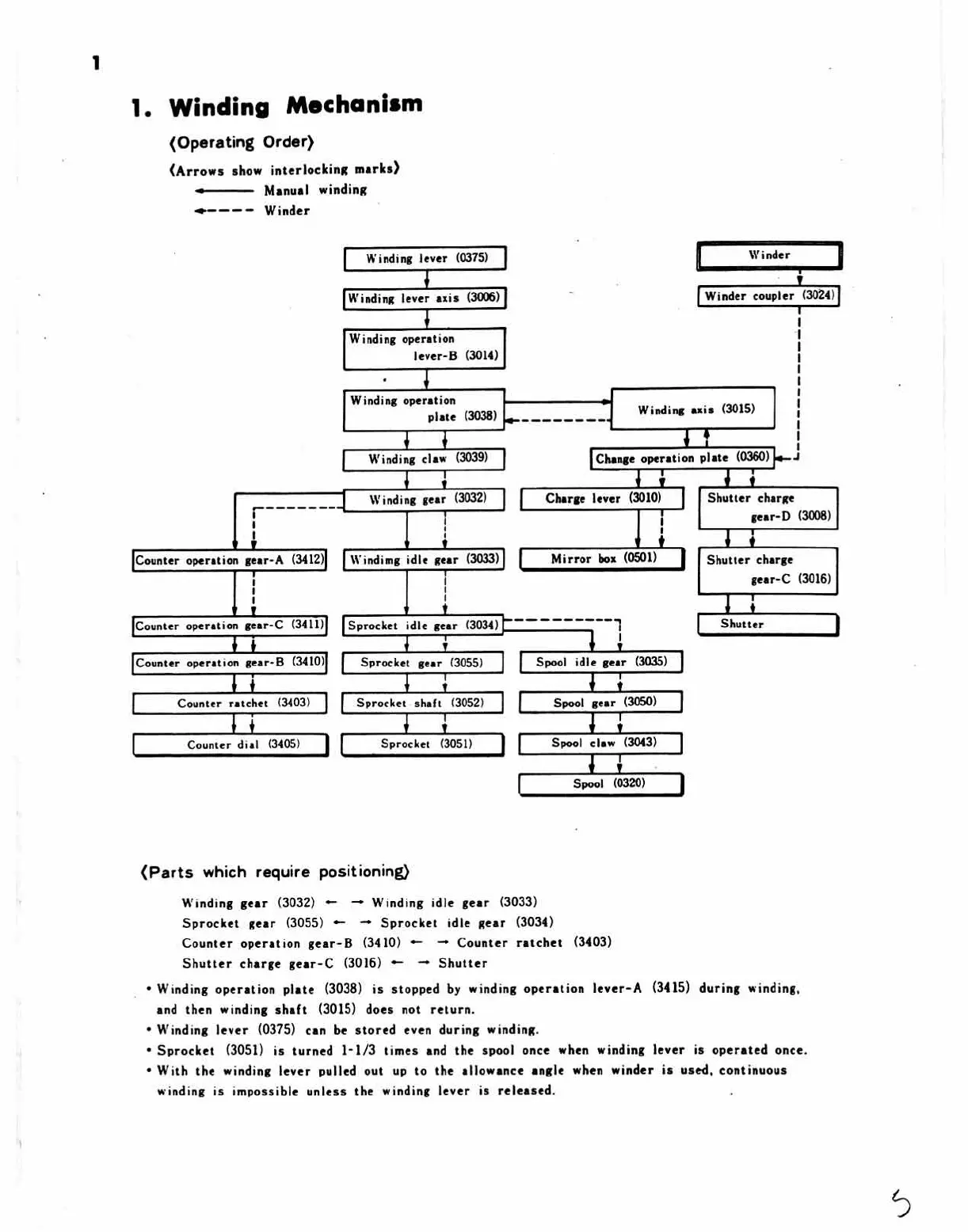

Winding
Mechanism
(Operating Order)
(Arrows
show
interlocking
marks)
———
Manual
winding
*-—-—-— Winder
| Winding lever (0375) |
| Winding lever axis (3006) |
Winding operation
lever-B (3014)
of
Winder
ma
y
| Winder coupler (3024) |
Winding operation
plate (3038)
=< ——
Winding axis (3015)
| Winding claw (3039) |
q
|
Change
operation
plate
(0360)
fe
T
T
!
!
|
I
I
I
I
1
I
i]
|
I
4
iy
i ¢
y
Winding gear (3032) | | Charge lever (3010) |
a
Shutter charge
gear-D (3008)
i ¢
Y
|Counter operation gear-A (3412)] Windimg idle gear (3033) | | Mirror box (0501) |
T
!
1
!
pubescens: |
\ ae |
|Counter operation gear-C (3411)] | Sprocket idle gear (3034)
ii iy
| Counter operation gear-B (3410)] | Sprocket gear (3055) | | Spool idle gear (3035) |
i? t i ¢
| Counter ratchet (3403) | | Sprocket shaft (3052) | | Spool gear (3050) |
+4
i 3 !
| Counter dial (3405) } [ Sprocket (3051) } [ Spool claw (3043) |
U
;
¥
| Spool (0320)
(Parts which require positioning)
Winding gear (3032) — -—* Winding idle gear (3033)
Sprocket gear (3055) + -* Sprocket idle gear (3034)
Counter operation gear-B (3410) — -—* Counter ratchet (3403)
Shutter charge gear-C (3016) + -— Shutter
Shutter charge
gear-C (3016)
is
=
| Shutter
_ * Winding operation plate (3038) is stopped by winding operation lever-A (3415) during winding,
and then winding shaft (3015) does not return.
* Winding lever (0375) can be stored even during winding.
« Sprocket (3051) is turned 1-1/3 times and the spool once when winding lever is operated once.
* With the winding lever pulled out up to the allowance angle when winder is used, continuous
winding is impossible unless the winding lever is released.
