www.minutemanintl.com 6 31218C

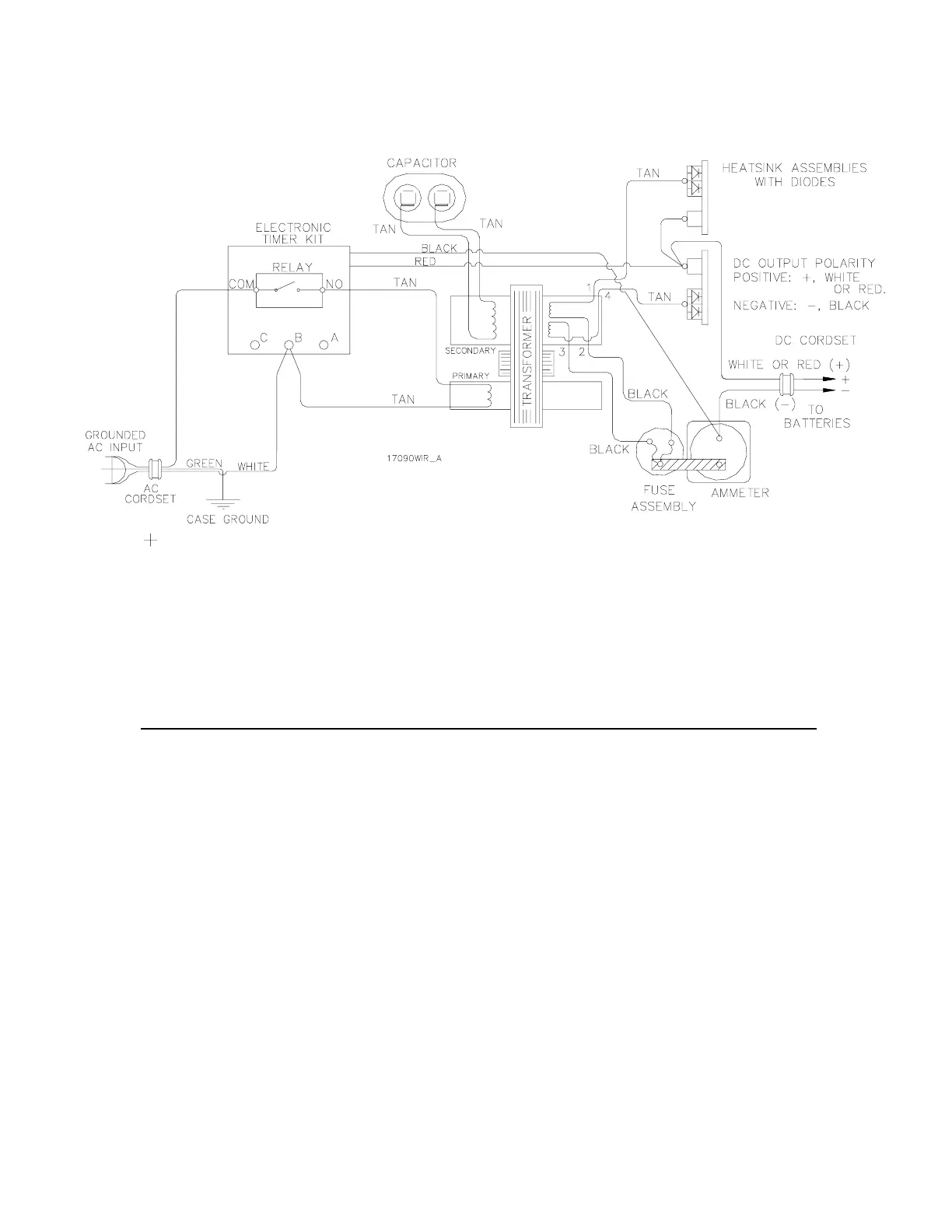

WIRING DIAGRAM
PARTS LIST FOR 36 VOLT
AUTOMATIC BATTERY CHARGER
PART NO. 957740 120 VAC / 60 HZ
PART NO.
QTY.
DESCRIPTION
31236S 1 CASE ASSEMBLY
17095S 1 TRANSFORMER ASSEMBLY
02390S 1 CAPACITOR, 6 MFD, 660 VAC
16946S 2 HEATSINK ASSEMBLY W/ 2 DIODES IN PARALLEL
08774S 1 FUSE ASSEMBLY
16823S 1 AMMETER, 50 AMP, W/ CORNER MOUNTING STUDS
24840S 1 TIMER KIT, 36 VDC, 120 VAC
* 04484S 1 RELAY, FOR ELECTRONIC TIMER
** 23385S 1 RELAY, FOR ELECTRONIC TIMER
04484S 1 TIMER KIT RELAY, 36 VDC, SPSTNO, 120 VAC
02028S 1 CORDSET BUSHING, 7W-2, FOR 14/3 INPUT CORDSET
02008S 1 CORDSET BUSHING, 8P-2, FOR 10/2 OUTPUT CORDSET
02506S 1 AC CORDSET, 14/3, 72" W/ 125V/15A PLUG
08329S 1 DC CORDSET, 10/2, 108", W/ SB175 GRAY PLUG
* FOR USE WITH CHARGERS BUILT BEFORE 04/04
** FOR USE WITH CHARGERS BUILT AFTER 04/04
