Digital Audio Recorder Module
CD/MP3 PLAYER
Battery Meter: Displays current & charging battery level.
Blinking (charging in progress); Illuminated (battery is fully charged)
Master Power Switch: Turns AC/DC power on/off to the unit. The indicator
glows when you turn the power On. To avoid over-discharging or stressing of
the built-in battery supply, it is recommended that you plug-in and charge the
unit immediately when LED indicator flashes (denotes lower battery status).
Otherwise, the unit will turn off automatically once a pre determined low charge
level is reached as it may interrupt the performances. A full recharge may take
up to 4 hours. When fully charged, make sure to turn the power OFF to
conserve battery power and when not being used.
MT-91 Wireless Transmitter Module
MRM-70B
Control Panel
Heat Sink: Built in heat sink for amplifier. Keep the unit well ventilated when in
use and please do not touch the heat sink when in operation.
Storage Lever: Adjust lever to keep storage lid tightly.
AC Power Input Socket (AC 100~240V): Input socket for AC Power
(100~240V). (Various outlets fitting the standards of various countries are
available for this unit)
DC Input Jack (DC 24~28V): Requires external DC 24~28volts.
Extension Speaker Input Jack (EXT. SPKR): Accepts output from the
EXT. SPKR Jack of MA-505.
Battery Cover: Protects the rechargeable battery.
Skip-free (Optional)
(Optional)
Receiver Modules (Optional)
DPM-3
10
11
12
13
14
9
8
7
16
15
19
18
17
B1 B2 B3
B4
B5 B6 B7 B8 B9
B11B12B13B14B15B16B17B18B19B21 B10
MIC 1 Volume Control : Control the volume of the Mic 1 wired microphone.
MIC 2 Volume Control: Control the volume of the Mic 2 wired microphone.
TONE Control (varies by region): Turn counterclockwise to increase bass or
turn clockwise to increase treble. Positioned at 12 o'clock for a flat response.
ECHO Control (varies by region): Adjust for desired ECHO effects. (chose
one of two)
LINE IN Volume Control: Controls the volume of the Line Socket.
LINE IN Socket (3.5mm mono): Allows you use an external device with
unbalanced audio output signal as an input to the MA-505.
LINE OUT Socket (3.5mm mono): Line level output. Allows you to use the
MA-505 as a program input source for some other audio device.
Voice Priority Switch: Voice over music priority function. (factory preset: Off)
Wired Microphone Input Socket (6.3mm/ 1/4” Unbalanced): Allows you
to use an unbalanced, wired microphone as an input source.
Wired Microphone Input Socket (XLR Balanced): Allows you to use wired
microphone with a balanced XLR connector as an input source.
MASTER Volume Control: Adjust the volume of all mixed audio inputs.
B1
B2
B3
B4
B5
B6
B7
B8
B9
B20
B4

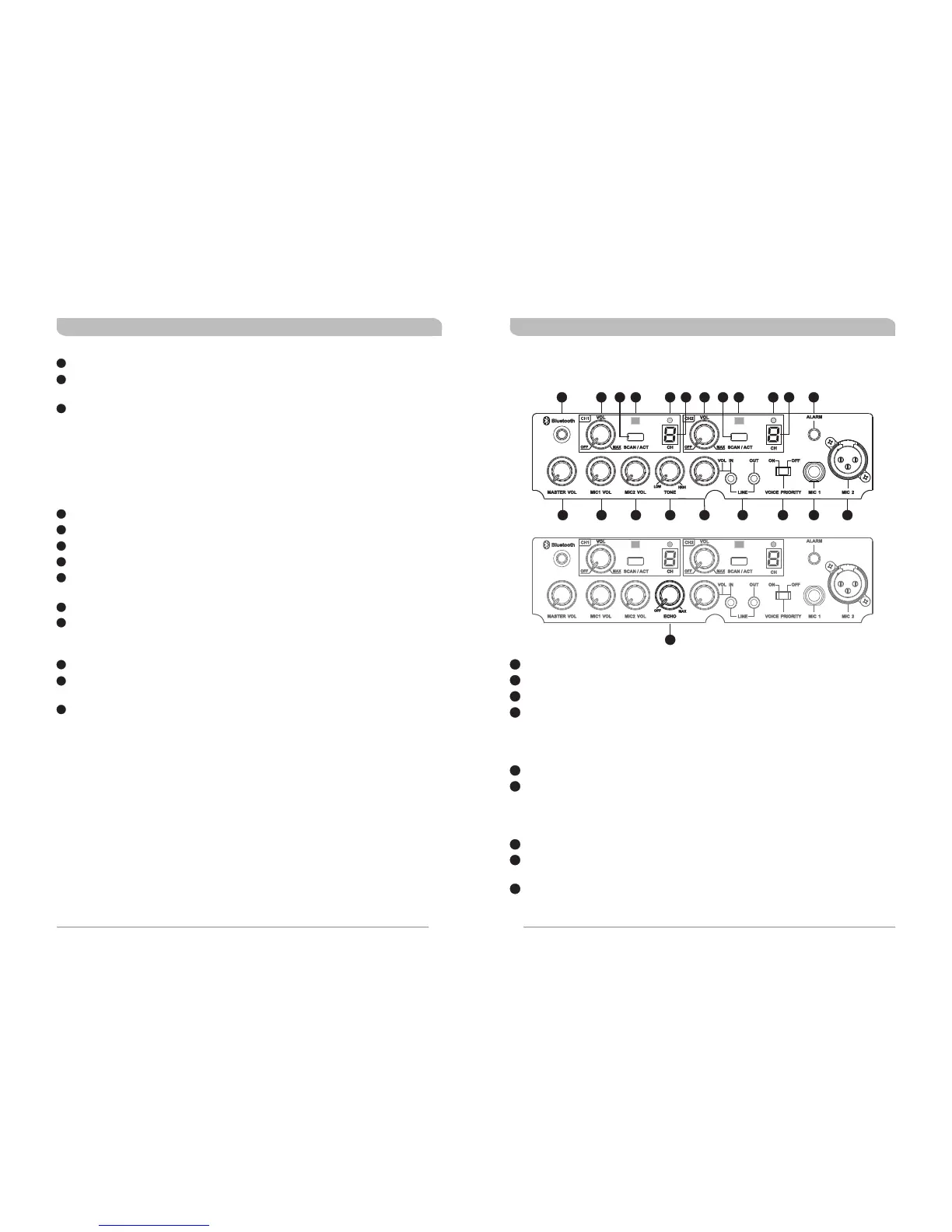

CONTROL PANEL
04
05
PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM
