MA-708(AF) TEST AND ALIGNMENT INSTRUCTIONS

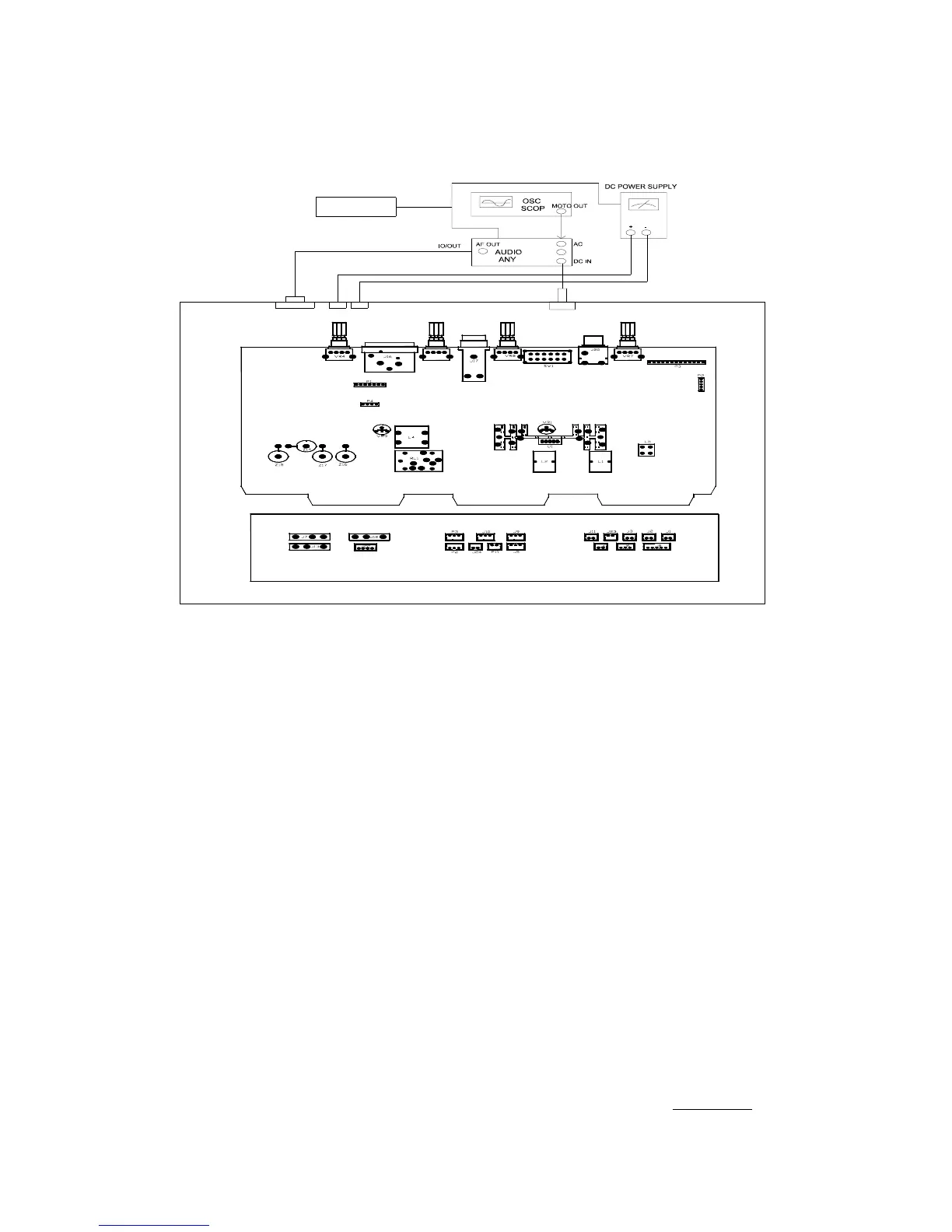

一､Measuring instruments and testset-up
CONTRO1
-+
GPIB
DC TP OUTPUT
二､Pre-set
A. Audio analyzer
① AF OUT 1KHz﹐-43dBV
② 100Hz High PASS “ON”
③ 20K LOW PASS “ON”
B. Dc power supply
①+32V/500mA OUT
C. SW1，VR6，VR7 turn full MIX
D. VR4 turn full Middle
A708R03B
