MA-708 (AMP) TEST AND ALIGNMENT INSTRUCTIONS

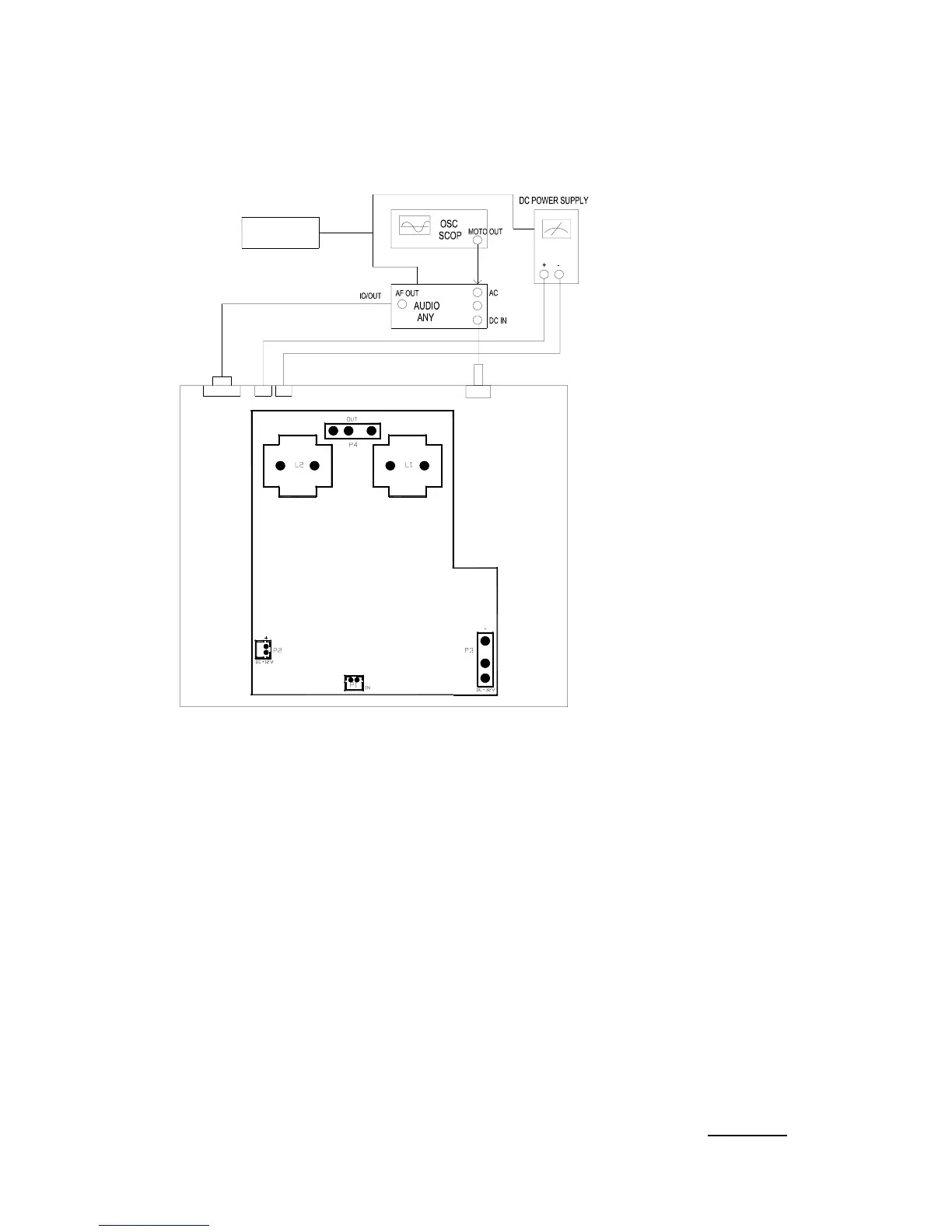

一､Measuring instruments and testset-up

CONTRO1

+ -

GPIB

DC TP OUTPUT

二､Pre-set

A. Audio analyzer

① AF OUT 1KHz﹐-22dBV

② 100Hz High PASS “ON”

③ 20KHz LOW PASS “ON”

B. Dc power supply

①+32V/6A OUT

②+12V/1A OUT

A708R03B
