Mira Vier Installation Guide

11
1144486-W2-K

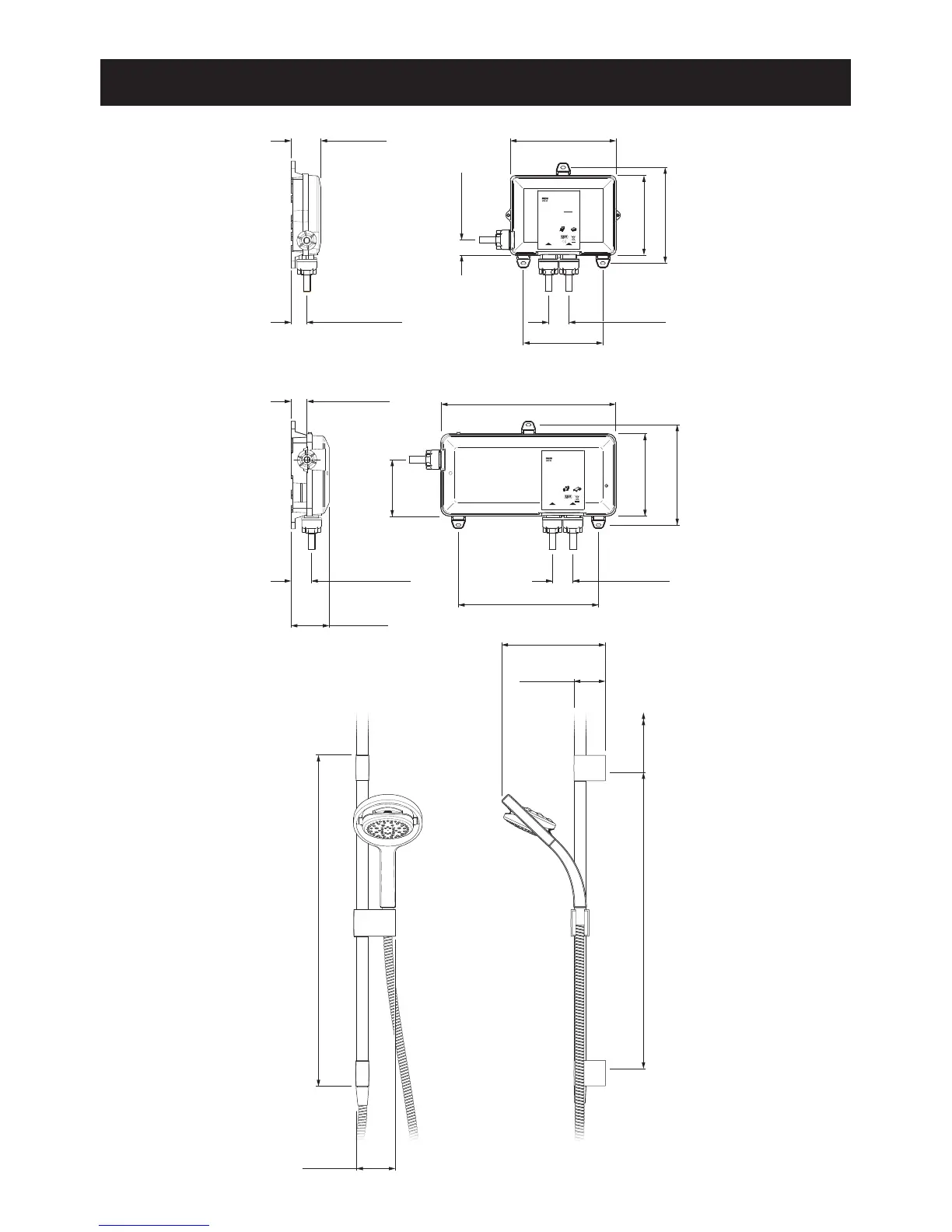

DIMENSIONS
FOR LOW PRESSURE SYSTEMS
PART No. 1666.007
N85B
MANUFACTURED DATE:
KOHLER MIRA LTD.
CHELTENHAM
GL52 5EP
TEL: (+44) 0870 241 0888
www.mirashowers.co.uk
POWER: 230V ~ 200W
PROTECTION: IP24
MIN. SUPPLY HEAD: 0.1 m (0.01 bar)
MAX. WORKING HEAD: 10 m (1 bar)
MAX. SUPPLY WATER TEMP: 65 °C
MOUNTING POSITION
VERTICAL HORIZONTAL
OR
ISOLATE MAINS ELECTRICITY BEFORE
REMOVING COVER!
F8625
PLATINUM DIGITAL MIXER
HOT COLD
FOR HIGH PRESSURE / COMBINATION BOILER
PART No. 1666.009
N85A
MANUFACTURED DATE:
KOHLER MIRA LTD.
CHELTENHAM
GL52 5EP
TEL: (+44) 0870 241 0888
www.mirashowers.co.uk
HOT COLD
POWER: 230V ~ 20W
PROTECTION: IP24
MIN. SUPPLY PRESSURE: 50 kPa (0.5 bar)
MAX. WORKING PRESSURE: 500 kPa (5 bar)
MAX. STATIC PRESSURE: 1000 kPa (10 bar) (WRAS)
MAX. SUPPLY WATER TEMP: 65 °C
MOUNTING POSITION
VERTICAL HORIZONTAL
OR
ISOLATE MAINS ELECTRICITY BEFORE
REMOVING COVER!
F8624
PLATINUM DIGITAL MIXER
68 mm 240 mm
180 mm
180 mm
185 mm
127 mm
255 mm
35 mm
217 mm
36 mm
36 mm
394 mm
315 mm
45 mm
86 mm
47 mm
47 mm
to centre of inlets/outlet
to centre of outlet
to centre of inlets
600 mm 650 mm
150 mm
62 mm
82 mm
645 mm Max. to ceiling
